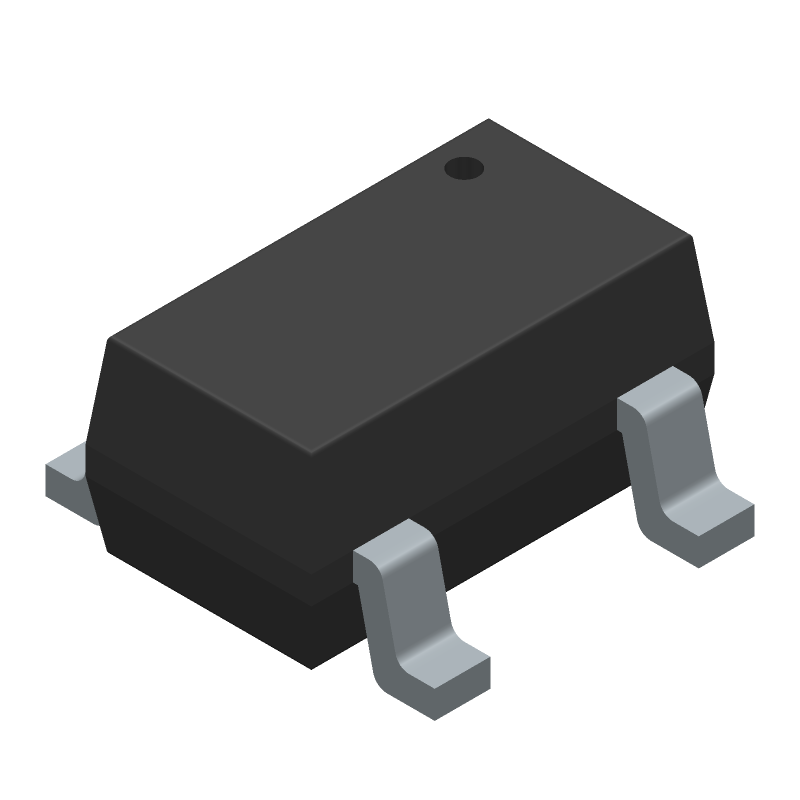

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IW1706-03 by Renesas Electronics Corporation
Results Overview of IW1706-03 by Renesas Electronics Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
IW1706-03 Information
IW1706-03 by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for IW1706-03
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
IW1706-03-ND
|
DigiKey | IC OFFLINE SW FLYBACK SOT23-5 Min Qty: 6000 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2273 / $0.2454 | Buy Now |
|
DISTI #
IW1706-03
|
Avnet Americas | Low-Power Off-Line Digital Green-Mode PWM Controller - Tape and Reel (Alt: IW1706-03) RoHS: Not Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.5600 | Buy Now |
|
DISTI #
724-IW1706-03
|
Mouser Electronics | Switching Controllers Low-Power Off-Line Digital Green-Mode PWM Controller RoHS: Compliant | 0 |
|
$0.2270 / $0.2460 | Order Now |
Part Details for IW1706-03
IW1706-03 CAD Models
IW1706-03 Part Data Attributes
|
|
IW1706-03
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
IW1706-03
Renesas Electronics Corporation
Switching Controller, Current-mode, PDSO5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| JESD-30 Code | R-PDSO-G5 | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL |
Alternate Parts for IW1706-03
This table gives cross-reference parts and alternative options found for IW1706-03. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IW1706-03, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IW1706-03 | Dialog Semiconductor GmbH | Check for Price | Switching Regulator/Controller, Current-mode, PDSO5, | IW1706-03 vs IW1706-03 |
