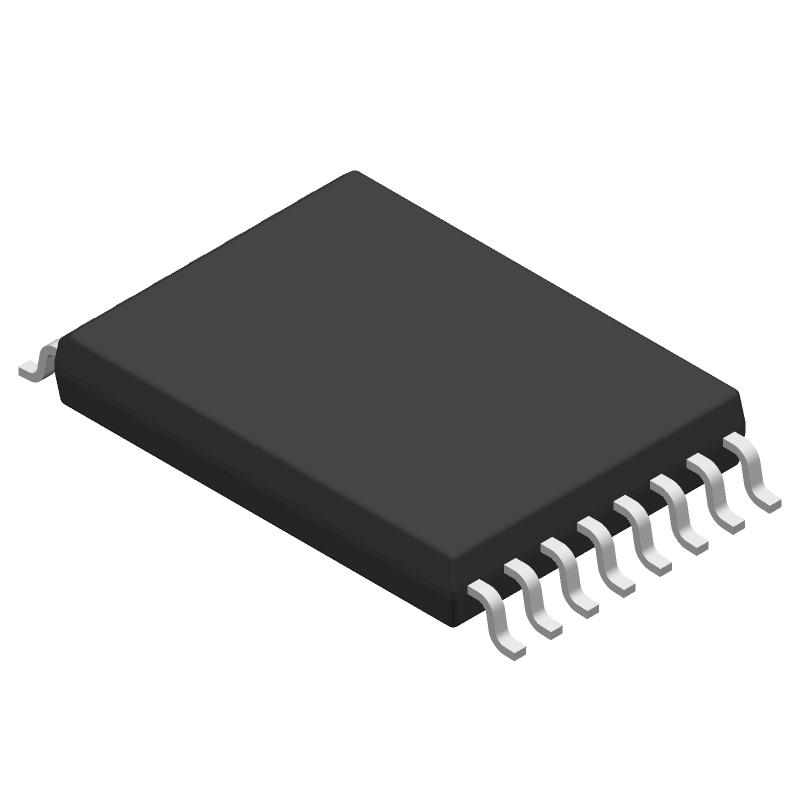

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISO7810DWWR by Texas Instruments
Results Overview of ISO7810DWWR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Financial Technology (Fintech)
Telecommunications
ISO7810DWWR Information
ISO7810DWWR by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISO7810DWWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISO7810DWWR-ND
|
DigiKey | DGTL ISOLTR 5.7KV 1CH GP 16-SOIC Min Qty: 1000 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.4476 / $3.5233 | Buy Now |
|
DISTI #
595-ISO7810DWWR
|
Mouser Electronics | Digital Isolators 5.7kVRMS 100Mbps A 595-ISO7810DWW RoHS: Compliant | 0 |
|
$3.3600 / $3.4700 | Order Now |
Part Details for ISO7810DWWR
ISO7810DWWR CAD Models
ISO7810DWWR Part Data Attributes
|
|
ISO7810DWWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ISO7810DWWR
Texas Instruments
Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOP, | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-06-15 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO REQUIRE VCC2 FROM 2.25 -5.5V; ALSO OPERATE WITH 3.3V AND 5 V SUPPLY | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ISO7810DWWR
This table gives cross-reference parts and alternative options found for ISO7810DWWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISO7810DWWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISO7810DWR | Texas Instruments | $2.0073 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWWR vs ISO7810DWR |
| ISO7810FDWR | Texas Instruments | $2.0073 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWWR vs ISO7810FDWR |
| ISO7810FDWWR | Texas Instruments | $3.0128 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWWR vs ISO7810FDWWR |
| ISO7810FDWW | Texas Instruments | $3.3893 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWWR vs ISO7810FDWW |
