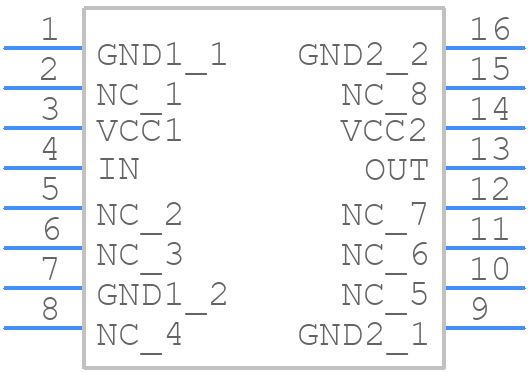

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISO7810DWR by Texas Instruments
Results Overview of ISO7810DWR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Financial Technology (Fintech)
Telecommunications
ISO7810DWR Information
ISO7810DWR by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISO7810DWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-ISO7810DWR
|
Mouser Electronics | Digital Isolators Highest isolation ra ting single-channel A 595-ISO7810DW RoHS: Compliant | 1631 |
|
$2.4800 / $4.4800 | Buy Now |
|
|
LCSC | SOIC-16-300mil Digital Isolators ROHS | 5 |
|
$6.3014 / $6.6108 | Buy Now |
Part Details for ISO7810DWR
ISO7810DWR CAD Models
ISO7810DWR Part Data Attributes
|
|
ISO7810DWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ISO7810DWR
Texas Instruments
Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOIC-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO REQUIRE VCC2 FROM 2.25 -5.5V; ALSO OPERATE WITH 3.3V AND 5 V SUPPLY | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for ISO7810DWR
This table gives cross-reference parts and alternative options found for ISO7810DWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISO7810DWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISO7810FDWR | Texas Instruments | $2.0073 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWR vs ISO7810FDWR |
| ISO7810DW | Texas Instruments | $2.4086 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWR vs ISO7810DW |
| ISO7810FDW | Texas Instruments | $2.4086 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWR vs ISO7810FDW |
| ISO7810FDWWR | Texas Instruments | $3.0128 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWR vs ISO7810FDWWR |
| ISO7810DWW | Texas Instruments | $3.3893 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWR vs ISO7810DWW |
| ISO7810FDWW | Texas Instruments | $3.3893 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWR vs ISO7810FDWW |
| ISO7810DWWR | Texas Instruments | Check for Price | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DWR vs ISO7810DWWR |
ISO7810DWR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the ISO7810DWR is 10 MHz.
-
The ISO7810DWR can be configured for I2C or SPI mode by setting the MODE pin high or low, respectively, during power-up.
-
The maximum data transfer rate of the ISO7810DWR is 10 Mbps.
-
The ISO7810DWR has built-in error detection and correction mechanisms, including parity and checksum checks. In case of errors, the device can be configured to retry data transmission.
-
The power consumption of the ISO7810DWR depends on the operating frequency and mode. In active mode, the typical power consumption is around 10 mA, and in standby mode, it is around 10 μA.
