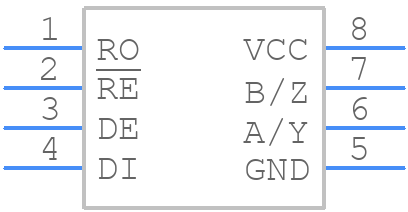

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL8483EIBZ by Renesas Electronics Corporation
Results Overview of ISL8483EIBZ by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ISL8483EIBZ Information
ISL8483EIBZ by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISL8483EIBZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11J9067
|
Newark | Rs422/Rs485 Transceiver, 5.5V, Soic8, Ic Type:Rs422/Rs485 Transceiver, No. Of Receivers:1Receivers, No. Of Transmitters:1, Communication Mode:Half Duplex, Data Rate Max:250Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Renesas ISL8483EIBZ RoHS: Compliant Min Qty: 3920 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
ISL8483EIBZ
|
Avnet Americas | RS422/RS485 Transceiver, Half Duplex, 250 Kbps, 1 Transmitter, 5.5 V Supply, -40 to 85 ?C, NSOIC-8 - Rail/Tube (Alt: ISL8483EIBZ) RoHS: Compliant Min Qty: 3920 Package Multiple: 980 Lead time: 12 Weeks, 0 Days Container: Tube | 0 |
|
$1.1300 | Buy Now |
|
DISTI #
968-ISL8483EIBZ
|
Mouser Electronics | RS-422/RS-485 Interface IC 8LD -40+85 5V RS-485 15KV HBM TRANS 1T RoHS: Compliant | 6936 |
|
$0.6490 / $0.7500 | Buy Now |
|
DISTI #
ISL8483EIBZ
|
TME | IC: interface, transceiver, RS422 / RS485, 250kbps, SO8, tube Min Qty: 1 | 0 |
|
$0.6200 / $0.9200 | RFQ |
|
DISTI #
ISL8483EIBZ
|
Avnet Silica | RS422RS485 Transceiver Half Duplex 250 Kbps 1 Transmitter 55 V Supply 40 to 85 C NSOIC8 (Alt: ISL8483EIBZ) RoHS: Compliant Min Qty: 980 Package Multiple: 980 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ISL8483EIBZ
ISL8483EIBZ CAD Models
ISL8483EIBZ Part Data Attributes
|
|
ISL8483EIBZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL8483EIBZ
Renesas Electronics Corporation
ESD Protected to ±15kV, 5V, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceivers, SOICN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2018-01-23 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422; EIA-485 | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Receive Delay-Max | 2000 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 2000 ns | |
| Width | 3.9 mm |
Alternate Parts for ISL8483EIBZ
This table gives cross-reference parts and alternative options found for ISL8483EIBZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL8483EIBZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL8483EIB | Intersil Corporation | Check for Price | LINE TRANSCEIVER, PDSO8, PLASTIC, MS-012AA, SOIC-8 | ISL8483EIBZ vs ISL8483EIB |
| ISL8483EIB | Rochester Electronics LLC | Check for Price | LINE TRANSCEIVER, PDSO8, PLASTIC, MS-012AA, SOIC-8 | ISL8483EIBZ vs ISL8483EIB |
| ISL8483EIB-T | Rochester Electronics LLC | Check for Price | LINE TRANSCEIVER, PDSO8, PLASTIC, MS-012AA, SOIC-8 | ISL8483EIBZ vs ISL8483EIB-T |
| ISL8483EIBZ-T7A | Renesas Electronics Corporation | Check for Price | ESD Protected to ±15kV, 5V, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceivers, SOICN, /Reel | ISL8483EIBZ vs ISL8483EIBZ-T7A |
| ISL8483EIBZ-T | Renesas Electronics Corporation | Check for Price | ESD Protected to ±15kV, 5V, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceivers, SOICN, /Reel | ISL8483EIBZ vs ISL8483EIBZ-T |
ISL8483EIBZ Frequently Asked Questions (FAQ)
-
A good PCB layout practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from the edges of the board. Additionally, use a common mode filter or a ferrite bead to filter out high-frequency noise.
-
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VCC pin, and a 0.1uF ceramic capacitor as a decoupling capacitor between VCC and GND. Ensure the power supply is stable and within the recommended voltage range.
-
The ISL8483EIBZ can support data rates up to 100 Mbps, but the actual achievable data rate depends on the specific application, cable length, and noise environment.
-
Use a logic analyzer or oscilloscope to monitor the signal lines, check the signal integrity, and verify the correct configuration of the device. Also, ensure the device is properly powered and decoupled, and the PCB layout is optimized for signal integrity.
-
Yes, the ISL8483EIBZ is designed to support hot-swap and hot-plug applications. However, ensure that the device is properly powered down before removal, and follow the recommended power-up and power-down sequences to prevent damage or data corruption.
