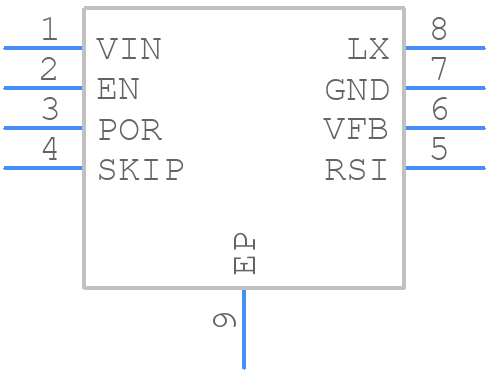

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL8009AIRZ-TK by Renesas Electronics Corporation
Results Overview of ISL8009AIRZ-TK by Renesas Electronics Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ISL8009AIRZ-TK Information
ISL8009AIRZ-TK by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ISL8009AIRZ-TK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34P4653
|
Newark | Pb-Free W/Anneal Low Iq 1.5A Buck Reg. W/ Integrated Fet, 8L/Tape & Reel Rohs Compliant: Yes |Renesas ISL8009AIRZ-TK RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
ISL8009AIRZ-TK-ND
|
DigiKey | IC REG BUCK ADJ 1.5A 8DFN Min Qty: 1000 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.8375 / $2.0301 | Buy Now |
|
DISTI #
ISL8009AIRZ-TK
|
Avnet Americas | Conv DC-DC Single Step Down 2.7V to 5.5V 8-Pin DFN EP T/R - Tape and Reel (Alt: ISL8009AIRZ-TK) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$3.3500 | Buy Now |
|
DISTI #
968-ISL8009AIRZ-TK
|
Mouser Electronics | Switching Voltage Regulators W/ANNEAL LW IQ 1 5A BUCKG W/INTEGRTD RoHS: Compliant | 0 |
|
$1.8700 / $2.0300 | Order Now |
|
DISTI #
87729214
|
Verical | Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.8V to 5.5V 1.5A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 2434 | Americas - 1000 |
|
$2.1200 / $3.5700 | Buy Now |
|
DISTI #
ISL8009AIRZ-TK
|
Avnet Silica | Conv DCDC Single Step Down 27V to 55V 8Pin DFN EP TR (Alt: ISL8009AIRZ-TK) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
ISL8009AIRZ-TK
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1000 |
|
$1.8300 / $3.6200 | Buy Now |
Part Details for ISL8009AIRZ-TK
ISL8009AIRZ-TK CAD Models
ISL8009AIRZ-TK Part Data Attributes
|
|
ISL8009AIRZ-TK
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL8009AIRZ-TK
Renesas Electronics Corporation
1.5A Low Quiescent Current 1.6MHz High Efficiency Synchronous Buck Regulator, DFN, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | DFN | |
| Package Description | DFN-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | L8.2X3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2017-10-20 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.5 A | |
| Output Voltage-Min | 0.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.08,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1750 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
