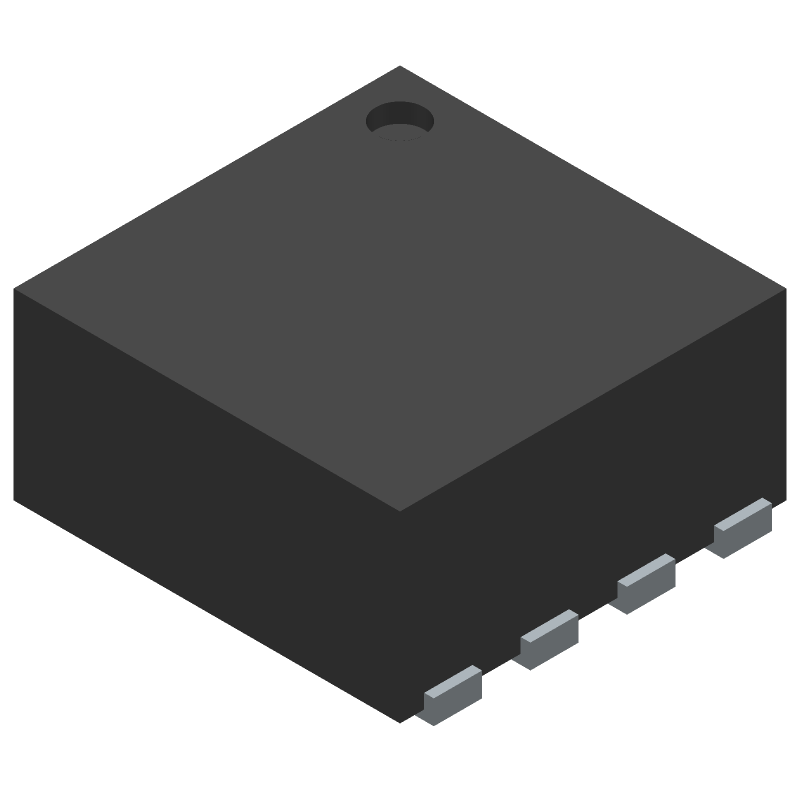

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL80030FRZ-T7A by Renesas Electronics Corporation
Results Overview of ISL80030FRZ-T7A by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Robotics and Drones
ISL80030FRZ-T7A Information
ISL80030FRZ-T7A by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ISL80030FRZ-T7A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82Y6732
|
Newark | Dc/Dc Conv, Sync Buck, 1Mhz, Dfn-8, Topology:Synchronous Buck (Step Down), Input Voltage Min:2.7V, Input Voltage Max:5.5V, No. Of Outputs:1Outputs, Dc/Dc Converter Ic Case:Dfn, No. Of Pins:8Pins, Output Current:3A, Output Voltage Rohs Compliant: Yes |Renesas ISL80030FRZ-T7A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
55Y0639
|
Newark | 3A, 1Mhz, Pwm Mode, Low Iq, High Eff, Synch Buck Reg, Dfn 2X/Tape & Reel Rohs Compliant: Yes |Renesas ISL80030FRZ-T7A RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
86110593
|
Verical | Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 3A 8-Pin DFN EP T/R Min Qty: 286 Package Multiple: 1 Date Code: 2301 | Americas - 2076 |
|
$0.8139 / $1.3125 | Buy Now |
|
|
Rochester Electronics | ISL80030 - 3A Synchronous Buck Converter in 2x2 DFN Package RoHS: Compliant Status: Obsolete Min Qty: 1 | 2097 |
|
$0.6511 / $1.0500 | Buy Now |
|
DISTI #
ISL80030FRZ-T7A
|
Avnet Silica | 3A 1MHZ PWM MODE LOW IQ HIGH EFF SYNCH BUCK REG DFN 2X (Alt: ISL80030FRZ-T7A) RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Silica - 0 |
|
Buy Now |
Part Details for ISL80030FRZ-T7A
ISL80030FRZ-T7A CAD Models
ISL80030FRZ-T7A Part Data Attributes
|
|
ISL80030FRZ-T7A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL80030FRZ-T7A
Renesas Electronics Corporation
3A Synchronous Buck Converter in 2x2 DFN Package, DFN, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | DFN | |
| Package Description | DFN-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | L8.2X2E | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Date Of Intro | 2017-11-16 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5.4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2300 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for ISL80030FRZ-T7A
This table gives cross-reference parts and alternative options found for ISL80030FRZ-T7A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL80030FRZ-T7A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL80030FRZ-T | Renesas Electronics Corporation | Check for Price | 3A Synchronous Buck Converter in 2x2 DFN Package, DFN, /Reel | ISL80030FRZ-T7A vs ISL80030FRZ-T |
| ISL80019IRZ-T | Renesas Electronics Corporation | Check for Price | Compact Synchronous Buck Regulators, TDFN, /Reel | ISL80030FRZ-T7A vs ISL80019IRZ-T |
| ISL80019FRZ-T7A | Renesas Electronics Corporation | Check for Price | Compact Synchronous Buck Regulators, TDFN, /Reel | ISL80030FRZ-T7A vs ISL80019FRZ-T7A |
| ISL80019AIRZ-T7A | Renesas Electronics Corporation | Check for Price | Compact Synchronous Buck Regulators, TDFN, /Reel | ISL80030FRZ-T7A vs ISL80019AIRZ-T7A |
| ISL80019FRZ-T | Renesas Electronics Corporation | Check for Price | Compact Synchronous Buck Regulators, TDFN, /Reel | ISL80030FRZ-T7A vs ISL80019FRZ-T |
| ISL80019AIRZ-T | Renesas Electronics Corporation | Check for Price | Compact Synchronous Buck Regulators, TDFN, /Reel | ISL80030FRZ-T7A vs ISL80019AIRZ-T |
| ISL80030AFRZ-T7A | Renesas Electronics Corporation | Check for Price | 3A Synchronous Buck Converter in 2x2 DFN Package, DFN, /Reel | ISL80030FRZ-T7A vs ISL80030AFRZ-T7A |
| ISL80030AFRZ-T | Renesas Electronics Corporation | Check for Price | 3A Synchronous Buck Converter in 2x2 DFN Package, DFN, /Reel | ISL80030FRZ-T7A vs ISL80030AFRZ-T |
| ISL80019AFRZ-T | Renesas Electronics Corporation | Check for Price | Compact Synchronous Buck Regulators, TDFN, /Reel | ISL80030FRZ-T7A vs ISL80019AFRZ-T |
