IS42S16100H-6TL Information
IS42S16100H-6TL by Integrated Silicon Solution Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS42S16100H-6TL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y1201
|
Newark | 16M, 3.3V, Sdram, 1Mx16, 166Mhz, 50 Pin Tsop Ii (400 Mil) Rohs |Integrated Silicon Solution/issi IS42S16100H-6TL RoHS: Not Compliant Min Qty: 117 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.0100 / $1.5400 | Buy Now |
|
DISTI #
IS42S16100H-6TL
|
Avnet Americas | DRAM Chip SDRAM 16M-Bit 1Mx16 3.3V 50-Pin TSOP-II - Trays (Alt: IS42S16100H-6TL) RoHS: Compliant Min Qty: 936 Package Multiple: 117 Lead time: 6 Weeks, 0 Days Container: Tray | 0 |
|
$0.7015 / $0.7503 | Buy Now |
|
DISTI #
870-IS42S16100H-6TL
|
Mouser Electronics | DRAM 16M, 3.3V, SDRAM 1Mx16, 166Mhz,RoHS RoHS: Compliant | 80 |
|
$0.9910 / $1.5800 | Buy Now |
|
|
Quest Components | 75 |
|
$1.1025 / $2.9400 | Buy Now | |
|
DISTI #
42S16100H-6TL
|
TME | IC: DRAM memory, 16MbDRAM, 512kx16bitx2, 166MHz, 6ns, TSOP50 II Min Qty: 1 | 0 |
|
$1.5100 / $2.0000 | RFQ |
|
DISTI #
IS42S16100H-6TL
|
Avnet Silica | DRAM Chip SDRAM 16MBit 1Mx16 33V 50Pin TSOPII (Alt: IS42S16100H-6TL) RoHS: Compliant Min Qty: 117 Package Multiple: 117 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for IS42S16100H-6TL

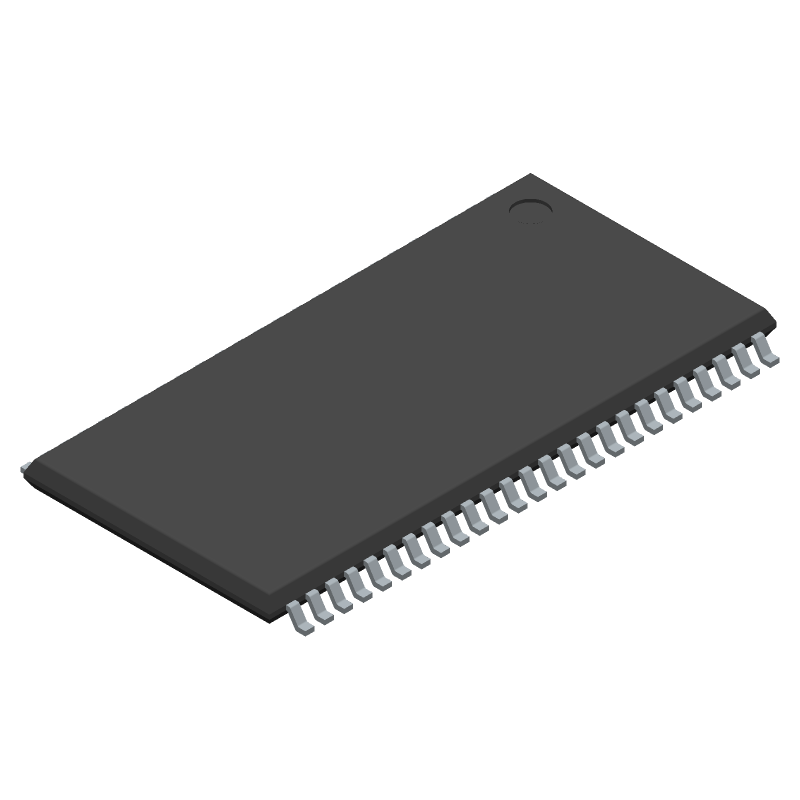

IS42S16100H-6TL CAD Models
IS42S16100H-6TL Part Data Attributes
|
|
IS42S16100H-6TL
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS42S16100H-6TL
Integrated Silicon Solution Inc
Synchronous DRAM, 1MX16, 5.5ns, CMOS, PDSO50, TSOP2-50
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | TSOP2-50 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.02 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Access Mode | DUAL BANK PAGE BURST | |
| Access Time-Max | 5.5 ns | |
| Additional Feature | PROGRAMMABLE CAS LATENCY; AUTO/SELF REFRESH | |
| Clock Frequency-Max (fCLK) | 166 MHz | |
| I/O Type | COMMON | |
| Interleaved Burst Length | 1,2,4,8 | |
| JESD-30 Code | R-PDSO-G50 | |
| Length | 20.95 mm | |
| Memory Density | 16777216 bit | |
| Memory IC Type | SYNCHRONOUS DRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 50 | |
| Number of Words | 1048576 words | |
| Number of Words Code | 1000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 1MX16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP2 | |
| Package Equivalence Code | TSOP50,.46,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Qualification Status | Not Qualified | |
| Refresh Cycles | 2048 | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Sequential Burst Length | 1,2,4,8,FP | |
| Standby Current-Max | 0.002 A | |
| Supply Current-Max | 0.07 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Width | 10.16 mm |
