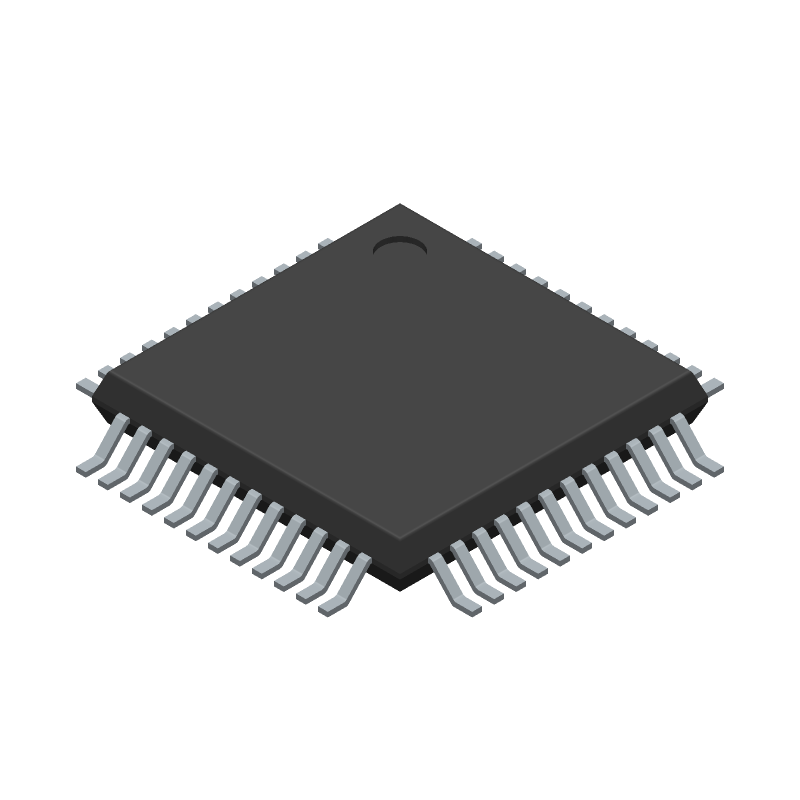

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS31FL3733-TQLS4 by Lumissil Microsystems
Results Overview of IS31FL3733-TQLS4 by Lumissil Microsystems
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
IS31FL3733-TQLS4 Information
IS31FL3733-TQLS4 by Lumissil Microsystems is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
