Memory / Flash Memories / IS25LP128-JKLE
Datasheets
IS25LP128-JKLE by: Integrated Silicon Solution Inc

Flash, 128MX1, PDSO8, WSON-8

Part Details for IS25LP128-JKLE by Integrated Silicon Solution Inc

Results Overview of IS25LP128-JKLE by Integrated Silicon Solution Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

IS25LP128-JKLE Information

IS25LP128-JKLE by Integrated Silicon Solution Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for IS25LP128-JKLE

Part # Distributor Description Stock Price Buy
DISTI # 52Y1857
Newark Nor Flash Memory 128Mbit, 133Mhz, Wson, Flash Memory Type:Serial Nor, Memory Configuration:16M X 8Bit, Interfaces:Spi, Ic Case/Package:Wson, No. Of Pins:8Pins, Clock Frequency Max:133Mhz, Access Time:-, Supply Voltage Min:2.3V Rohs Compliant: Yes |Integrated Silicon Solution/issi IS25LP128-JKLE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 7
  • 1 $0.6410
  • 10 $0.6410
  • 25 $0.6410
  • 50 $0.6410
  • 100 $0.6410
  • 250 $0.6410
$0.6410 Buy Now
DISTI # IS25LP128-JKLE
Avnet Americas Flash Memory, Serial NOR, 128 Mbit, 16M x 8bit, SPI, WSON, 8 Pins - Bulk (Alt: IS25LP128-JKLE) RoHS: Not Compliant Min Qty: 570 Package Multiple: 570 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 570 $1.3764
  • 1,140 $1.3542
  • 2,280 $1.3320
  • 3,420 $1.3098
  • 4,560 $1.2876
$1.2876 / $1.3764 Buy Now
DISTI # 870-25LP128JKLE
Mouser Electronics NOR Flash 128Mb QPI/QSPI, 8-pin WSON 5X6MM, RoHS RoHS: Compliant 5334
  • 1 $2.2100
  • 10 $2.1200
  • 25 $2.0100
  • 100 $1.9600
  • 250 $1.9000
  • 570 $1.8500
  • 1,140 $1.8000
$1.8000 / $2.2100 Buy Now
Bristol Electronics   225
RFQ
Quest Components FLASH, 128MX1, PDSO8 160
  • 1 $3.8700
  • 71 $1.9350
  • 156 $1.7899
$1.7899 / $3.8700 Buy Now
Quest Components FLASH, 128MX1, PDSO8 94
  • 1 $2.4188
  • 12 $1.9350
  • 40 $1.4513
$1.4513 / $2.4188 Buy Now
DISTI # IS25LP128-JKLE
Avnet Asia Flash Memory, Serial NOR, 128 Mbit, 16M x 8bit, SPI, WSON, 8 Pins (Alt: IS25LP128-JKLE) RoHS: Compliant Min Qty: 570 Package Multiple: 570 Lead time: 12 Weeks, 0 Days 0
RFQ
DISTI # IS25LP128-JKLE
Avnet Silica Flash Memory Serial NOR 128 Mbit 16M x 8bit SPI WSON 8 Pins (Alt: IS25LP128-JKLE) RoHS: Compliant Min Qty: 570 Package Multiple: 570 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
Win Source Electronics IC FLASH 128M SPI 133MHZ 8WSON 76340
  • 45 $1.2139
  • 90 $1.1356
  • 140 $1.0965
  • 200 $1.0182
  • 260 $0.9790
  • 320 $0.9398
$0.9398 / $1.2139 Buy Now

Part Details for IS25LP128-JKLE

IS25LP128-JKLE CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

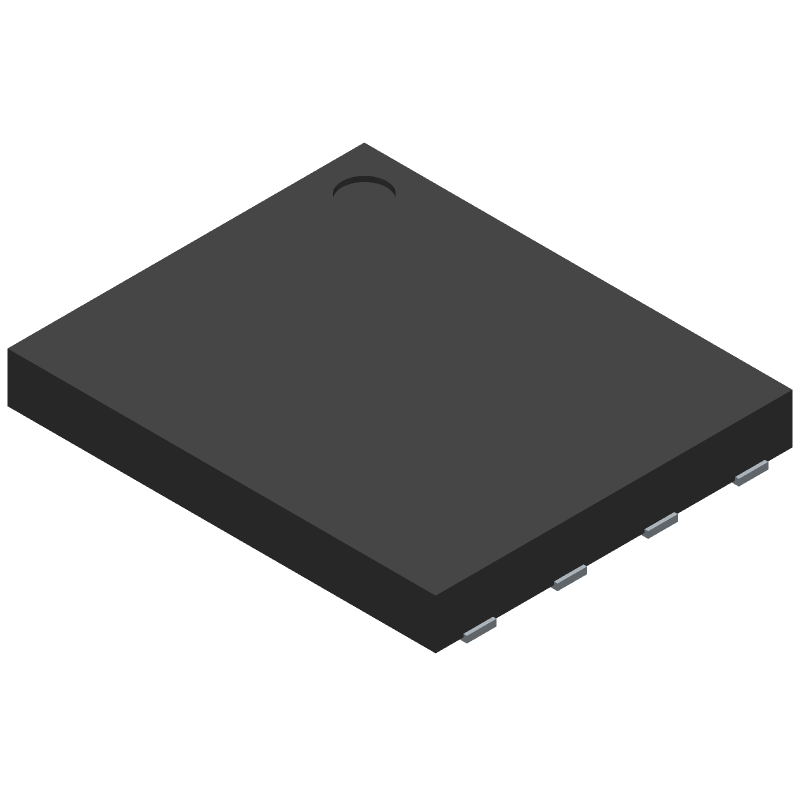

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IS25LP128-JKLE Part Data Attributes

Parametric Data
IS25LP128-JKLE Integrated Silicon Solution Inc
Buy Now Datasheet
Compare Parts:
IS25LP128-JKLE Integrated Silicon Solution Inc Flash, 128MX1, PDSO8, WSON-8
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEGRATED SILICON SOLUTION INC
Package Description WSON-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 12 Weeks
Samacsys Manufacturer Integrated Silicon Solution Inc.
Alternate Memory Width 1
Clock Frequency-Max (fCLK) 133 MHz
Command User Interface NO
Data Polling NO
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-N8
JESD-609 Code e3
Length 6 mm
Memory Density 134217728 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 8
Number of Words 16777216 words
Number of Words Code 16000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Organization 16MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.2
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Parallel/Serial SERIAL
Programming Voltage 2.7 V
Seated Height-Max 0.8 mm
Serial Bus Type 4-WIRE
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.3 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 5 mm
Write Protection HARDWARE/SOFTWARE

Alternate Parts for IS25LP128-JKLE

This table gives cross-reference parts and alternative options found for IS25LP128-JKLE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS25LP128-JKLE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IS25LP128-JKLV Integrated Silicon Solution Inc Check for Price Flash, 128MX1, PDSO8, 5 X 6 MM, WSON-8 IS25LP128-JKLE vs IS25LP128-JKLV
IS25LP128-JKLE1 Integrated Silicon Solution Inc Check for Price Flash, 128MX1, PDSO8, WSON-8 IS25LP128-JKLE vs IS25LP128-JKLE1

IS25LP128-JKLE Related Parts

IS25LP128-JKLE Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IS25LP128-JKLE is -40°C to 85°C.

  • To ensure data integrity, use the WP# pin to protect the memory array during power-down or power-up cycles. Additionally, use the HOLD# pin to prevent any unwanted writes during power transitions.

  • The recommended clock frequency for the IS25LP128-JKLE is up to 104 MHz.

  • Use the erase commands (e.g., 0x20 for page erase and 0xD8 for block erase) followed by the address and data bytes. Ensure that the WP# pin is high during erase operations.

  • The WP# pin is a write-protect pin that prevents unwanted writes to the memory array. Tie the WP# pin to VCC to enable write protection or to GND to disable it.
