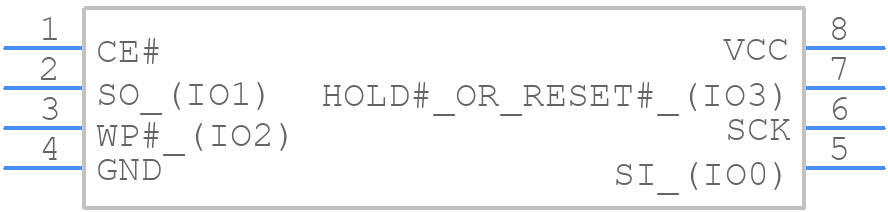

Part Symbol
-

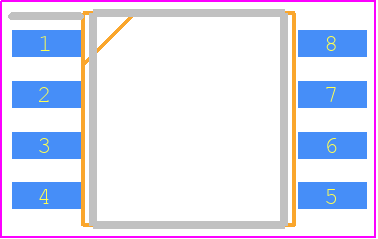

Footprint
-

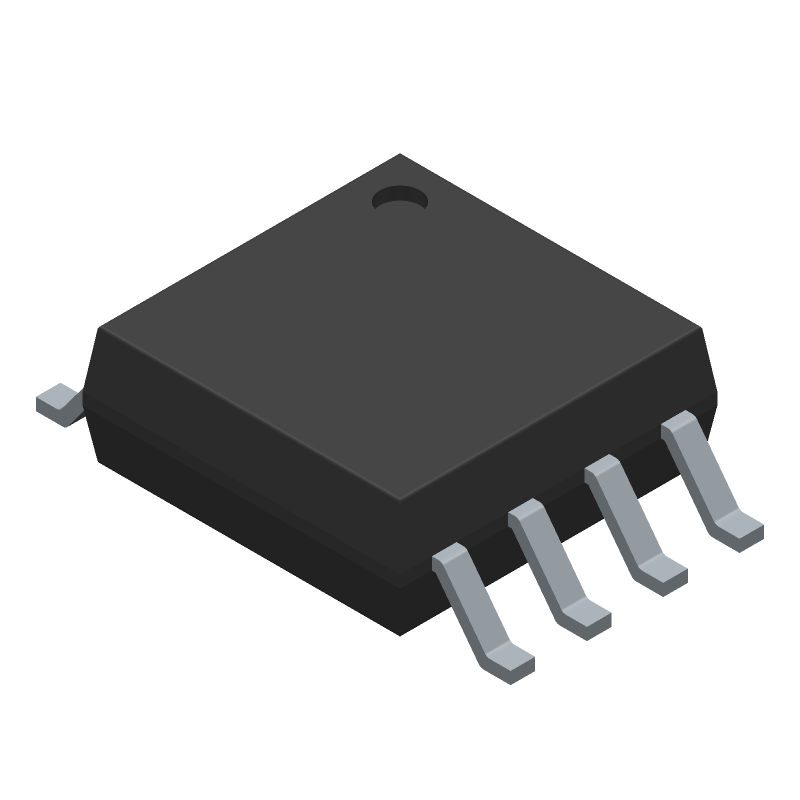

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS25LP016D-JBLA3-TR by Integrated Silicon Solution Inc
Results Overview of IS25LP016D-JBLA3-TR by Integrated Silicon Solution Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IS25LP016D-JBLA3-TR Information
IS25LP016D-JBLA3-TR by Integrated Silicon Solution Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS25LP016D-JBLA3-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56AC5760
|
Newark | 16Mb Qspi, 8-Pin Sop 208Mil, Rohs, T&r, Auto Grade |Integrated Silicon Solution/issi IS25LP016D-JBLA3-TR RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5630 / $0.7560 | Buy Now |
|
DISTI #
706-IS25LP016D-JBLA3-TR-ND
|
DigiKey | IC FLASH 16MBIT SPI/QUAD 8SOIC Min Qty: 2000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.7202 | Buy Now |
|
DISTI #
IS25LP016D-JBLA3-T
|
Avnet Americas | NOR Flash Serial-SPI 2.5V/3.3V 16Mbit 2M X 8bit 7ns/8ns 8-Pin SOIC T/R - Tape and Reel (Alt: IS25LP016D-JBLA3-T) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.5175 / $0.5535 | Buy Now |
|
DISTI #
870-IS25LP016DJBLA3T
|
Mouser Electronics | NOR Flash 16M 2.3-3.6V 133Mhz Serial NOR Flash RoHS: Compliant | 2613 |
|
$0.7090 / $1.0500 | Buy Now |
|
DISTI #
IS25LP016D-JBLA3-TR
|
Avnet Asia | NOR Flash Serial-SPI 2.5V/3.3V 16Mbit 2M X 8bit 7ns/8ns 8-Pin SOIC T/R (Alt: IS25LP016D-JBLA3-TR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
IS25LP016D-JBLA3-TR
|
Avnet Silica | NOR Flash SerialSPI 25V33V 16Mbit 2M X 8bit 7ns8ns 8Pin SOIC TR (Alt: IS25LP016D-JBLA3-TR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days | Silica - 114000 |
|
Buy Now | |
|
DISTI #
IS25LP016D-JBLA3-TR
|
EBV Elektronik | NOR Flash SerialSPI 25V33V 16Mbit 2M X 8bit 7ns8ns 8Pin SOIC TR (Alt: IS25LP016D-JBLA3-TR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | SPI 133MHz SOIC-8-208mil NOR FLASH ROHS | 1508 |
|
$0.4421 / $0.8012 | Buy Now |
Part Details for IS25LP016D-JBLA3-TR
IS25LP016D-JBLA3-TR CAD Models
IS25LP016D-JBLA3-TR Part Data Attributes
|
|
IS25LP016D-JBLA3-TR
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS25LP016D-JBLA3-TR
Integrated Silicon Solution Inc
Flash,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2018-06-22 | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Clock Frequency-Max (fCLK) | 133 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | S-PDSO-G8 | |
| Length | 5.28 mm | |
| Memory Density | 16777216 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 2097152 words | |
| Number of Words Code | 2000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 2MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programming Voltage | 3 V | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.16 mm | |
| Serial Bus Type | QSPI | |
| Standby Current-Max | 0.00003 A | |
| Supply Current-Max | 0.025 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.3 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Type | NOR TYPE | |
| Width | 5.28 mm | |
| Write Protection | HARDWARE/SOFTWARE |
IS25LP016D-JBLA3-TR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IS25LP016D-JBLA3-TR is -40°C to 85°C.
-
The hold signal (HOLD#) should be asserted low to pause the current operation and de-asserted high to resume the operation. During hold, the device will tri-state the output and ignore any input.
-
The WP# (Write Protect) pin is used to prevent accidental writes to the device. When WP# is low, the device is in write-protect mode, and any write operations will be ignored.
-
The IS25LP016D-JBLA3-TR has a density of 16Mbit and is organized as 2048 pages of 8192 bytes each.
-
The typical programming time for a page is 1.5ms (max).
