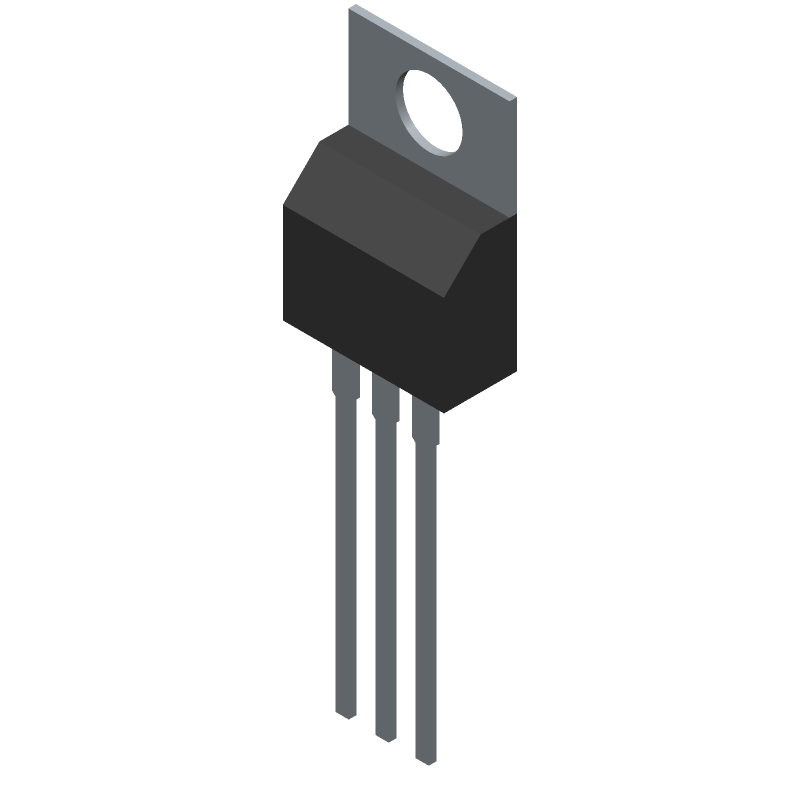

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRLZ24PBF by Vishay Intertechnologies
Results Overview of IRLZ24PBF by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IRLZ24PBF Information
IRLZ24PBF by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRLZ24PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K2376
|
Newark | Mosfet Transistor, N Channel, 17 A, 60 V, 100 Mohm, 5 V, 2 V Rohs Compliant: Yes |Vishay IRLZ24PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.7270 / $1.5400 | Buy Now |
|
DISTI #
IRLZ24PBF
|
Avnet Americas | LOGIC MOSFET N-CHANNEL 60V (Alt: IRLZ24PBF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days | 0 |
|
$0.6979 / $0.7125 | Buy Now |
|
DISTI #
70079099
|
RS | IRLZ24PBF N-channel MOSFET Transistor, 17 A, 60 V, 3-Pin TO-220AB Min Qty: 1000 Package Multiple: 1 Container: Bulk | 0 |
|
$1.6400 | RFQ |
|
DISTI #
IRLZ24PBF
|
TME | Transistor: N-MOSFET, unipolar, 60V, 12A, 60W, TO220AB Min Qty: 1 | 1301 |
|
$0.4870 / $1.5310 | Buy Now |
|
DISTI #
SMC-IRLZ24PBF
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 648 |
|
RFQ |
Part Details for IRLZ24PBF
IRLZ24PBF CAD Models
IRLZ24PBF Part Data Attributes
|
|
IRLZ24PBF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IRLZ24PBF
Vishay Intertechnologies
Power Field-Effect Transistor, 17A I(D), 60V, 0.1ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LOGIC LEVEL COMPATIBLE | |
| Avalanche Energy Rating (Eas) | 64.1 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 17 A | |
| Drain-source On Resistance-Max | 0.1 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 60 W | |
| Pulsed Drain Current-Max (IDM) | 68 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
IRLZ24PBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IRLZ24PBF is -55°C to 175°C.
-
Yes, the IRLZ24PBF is suitable for high-frequency switching applications due to its low gate charge and low RDS(on).
-
The maximum current rating for the IRLZ24PBF is 12A.
-
The IRLZ24PBF is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.
-
The typical turn-on and turn-off time for the IRLZ24PBF is around 10-20ns.
