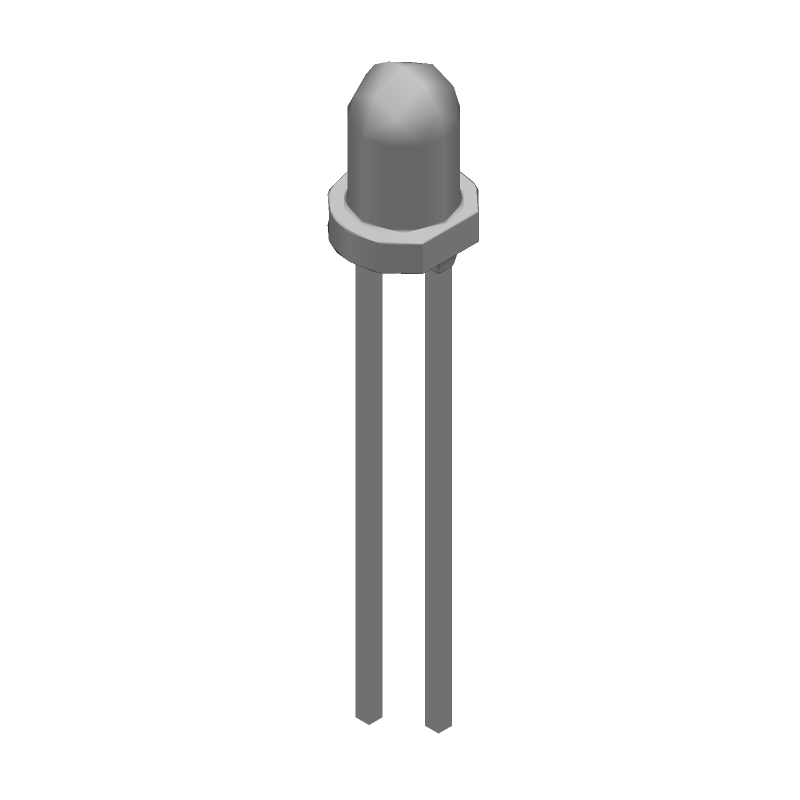

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IR204C-A by Everlight Electronics Co Ltd
Results Overview of IR204C-A by Everlight Electronics Co Ltd
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IR204C-A Information
IR204C-A by Everlight Electronics Co Ltd is an Infrared LED.
Infrared LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for IR204C-A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1080-1077-ND
|
DigiKey | EMITTER IR 940NM 100MA RADIAL Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
3159 In Stock |
|
$0.1033 / $0.3700 | Buy Now |
|
DISTI #
IR204C-A
|
Avnet Americas | - Tape and Reel (Alt: IR204C-A) RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Lead time: 22 Weeks, 0 Days Container: Reel | 0 |
|
$0.0843 / $0.0896 | Buy Now |
|
DISTI #
IR204C-A
|
TME | IR transmitter, 3mm, blue, 35°, 1.2÷1.8VDC, λp max: 940nm, THT Min Qty: 5 | 0 |
|
$0.0563 / $0.1640 | RFQ |
|
DISTI #
3402040104
|
EBV Elektronik | (Alt: 3402040104) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for IR204C-A
IR204C-A CAD Models
IR204C-A Part Data Attributes
|
|
IR204C-A
Everlight Electronics Co Ltd
Buy Now
Datasheet
|
Compare Parts:
IR204C-A
Everlight Electronics Co Ltd
Infrared LED, 3mm, 1-Element, 940nm, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | EVERLIGHT ELECTRONICS CO LTD | |
| Package Description | PLASTIC PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.40.20.00 | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | Everlight | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.1 A | |
| Forward Voltage-Max | 1.5 V | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | INFRARED LED | |
| Peak Wavelength | 940 nm | |
| Reverse Voltage-Max | 5 V | |
| Semiconductor Material | GaAlAs | |
| Shape | ROUND | |
| Size | 3 mm | |
| Spectral Bandwidth | 45 m | |
| Surface Mount | NO | |
| Viewing Angle | 35 deg |
IR204C-A Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the IR204C-A is -40°C to 100°C.
-
Yes, the IR204C-A is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing procedures.
-
Yes, the IR204C-A is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
The maximum forward current rating for the IR204C-A is 1A.
-
Yes, the IR204C-A is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
