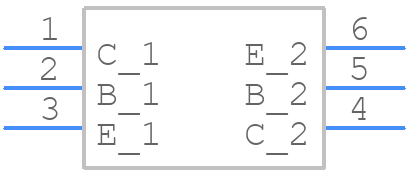

Part Symbol
-
Footprint
-

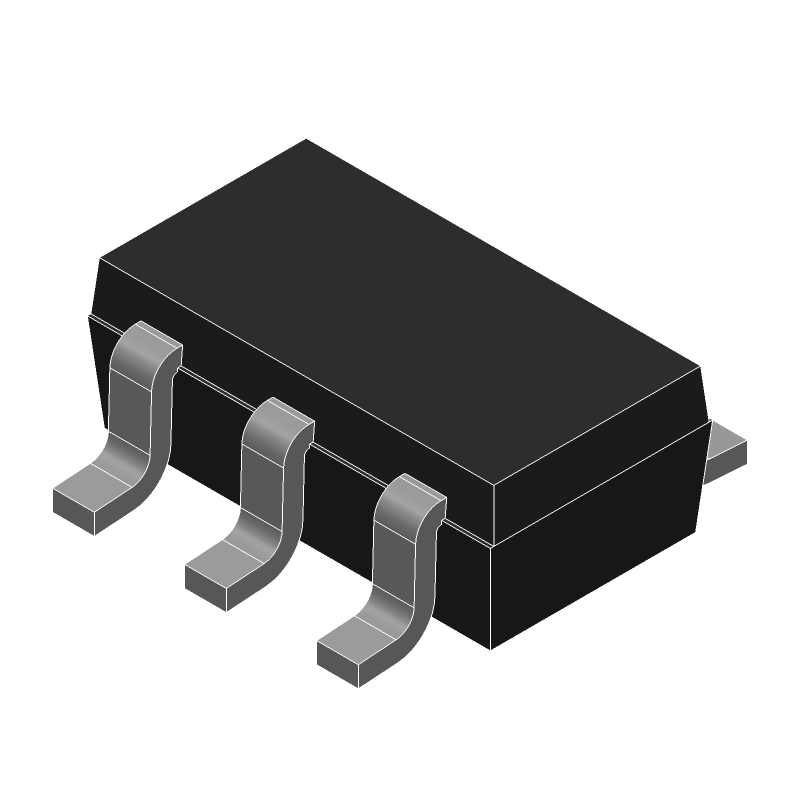

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IMD3AT108 by ROHM Semiconductor
Results Overview of IMD3AT108 by ROHM Semiconductor
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IMD3AT108 Information
IMD3AT108 by ROHM Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IMD3AT108
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
IMD3AT108CT-ND
|
DigiKey | TRANS PREBIAS 1NPN 1PNP 50V SMT6 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
3575 In Stock |
|
$0.0800 / $0.5200 | Buy Now |
|
DISTI #
IMD3AT108
|
Avnet Americas | Trans Digital BJT NPN/PNP 100mA 6-Pin SMT T/R - Tape and Reel (Alt: IMD3AT108) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
755-IMD3AT108
|
Mouser Electronics | Digital Transistors DUAL DIGITAL PNP/NPN RoHS: Compliant | 0 |
|
$0.0800 / $0.3700 | Order Now |
|
DISTI #
70600327
|
RS | Rohm, Bip, Tr., BRT, IMD3AT108 Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1250 | RFQ |
|
|
Bristol Electronics | 30 |
|
RFQ | ||
|
|
Quest Components | 50 mA, 50 V, 2 CHANNEL, NPN AND PNP, Si, SMALL SIGNAL TRANSISTOR | 2075 |
|
$0.1080 / $0.3600 | Buy Now |
|
|
Quest Components | 50 mA, 50 V, 2 CHANNEL, NPN AND PNP, Si, SMALL SIGNAL TRANSISTOR | 24 |
|
$0.2000 | Buy Now |
|
DISTI #
IMD3AT108
|
TTI | Digital Transistors DUAL DIGITAL PNP/NPN RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0580 / $0.0630 | Buy Now |
|
DISTI #
IMD3AT108
|
TTI | Digital Transistors DUAL DIGITAL PNP/NPN RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0580 / $0.0630 | Buy Now |
|
DISTI #
IMD3AT108
|
TME | Transistor: NPN / PNP, bipolar, BRT,complementary pair, 50V, 0.1A Min Qty: 10 | 0 |
|
$0.0488 / $0.0819 | RFQ |
Part Details for IMD3AT108
IMD3AT108 CAD Models
IMD3AT108 Part Data Attributes
|
|
IMD3AT108
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
IMD3AT108
ROHM Semiconductor
Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 2-Element, NPN and PNP, Silicon, SC-74, 6 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SC-74 | |
| Package Description | SC-74, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | DIGITAL, BUILT-IN BIAS RESISTOR RATIO IS 1 | |
| Collector Current-Max (IC) | 0.05 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN AND PNP | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 250 MHz | |
| VCEsat-Max | 0.3 V |
