IHLP5050FDER6R8M01 Information
IHLP5050FDER6R8M01 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for IHLP5050FDER6R8M01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1289452
|
Farnell | INDUCTOR, 6.8UH, 11.5A, 20%, SMD RoHS: Compliant Min Qty: 1 Lead time: 15 Weeks, 0 Days Container: Cut Tape | 113 |
|
$1.3816 / $2.3115 | Buy Now |
|
DISTI #
1289452RL
|
Farnell | INDUCTOR, 6.8UH, 11.5A, 20%, SMD RoHS: Compliant Min Qty: 100 Lead time: 15 Weeks, 0 Days Container: Reel | 113 |
|
$1.3816 | Buy Now |
|
DISTI #
IHLP5050FDER6R8M01
|
Avnet Americas | Power Inductor (SMD), 6.8 ?H, 11.5 A, Shielded, 16.5 A, IHLP-5050FD-01 Series - Tape and Reel (Alt: IHLP5050FDER6R8M01) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.6141 / $0.6525 | Buy Now |
|
DISTI #
70-IHLP5050FDER6R8M1
|
Mouser Electronics | Power Inductors - SMD 6.8uH 20% RoHS: Compliant | 1544 |
|
$0.9260 / $1.8700 | Buy Now |
|
|
Future Electronics | IHLP Series 5050 6.8 uH 20% 11.5A Shielded Low Profile High Current SMT Inductor RoHS: Compliant pbFree: Yes Min Qty: 250 Package Multiple: 250 Lead time: 10 Weeks Container: Reel | 1750Reel |
|
$0.7150 / $0.7450 | Buy Now |
|
|
Quest Components | GENERAL PURPOSE INDUCTOR, 6.8UH, 20%, 1 ELEMENT, COMPOSITE-CORE, SMD, 5050 | 214 |
|
$1.3875 / $3.0000 | Buy Now |
|
DISTI #
IHLP5050FDER6R8M01
|
TTI | Power Inductors - SMD 6.8uH 20% pbFree: Pb-Free Min Qty: 250 Package Multiple: 250 Container: Reel |
Americas - 500 In Stock |
|
$0.8400 / $1.1000 | Buy Now |
|
|
Future Electronics | IHLP Series 5050 6.8 uH 20% 11.5A Shielded Low Profile High Current SMT Inductor Min Qty: 250 Package Multiple: 250 |
1750 null |
|
$0.7150 / $0.7450 | Buy Now |
|
|
ComSIT USA | HIGH SATURATION COMMERCIAL INDUCTOR General Purpose Inductor, 6.8uH, 20%, 1 Element, Composite-Core, SMD, 5050 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
IHLP5050FDER6R8M01
|
IBS Electronics | IND HIGH CURRENT SHIELDED WIREWOUND 6.8UH 20% 100KHZ 11.5A 5050 T/R Min Qty: 250 Package Multiple: 1 | 1750 |
|
$0.9295 / $0.9685 | Buy Now |
Part Details for IHLP5050FDER6R8M01

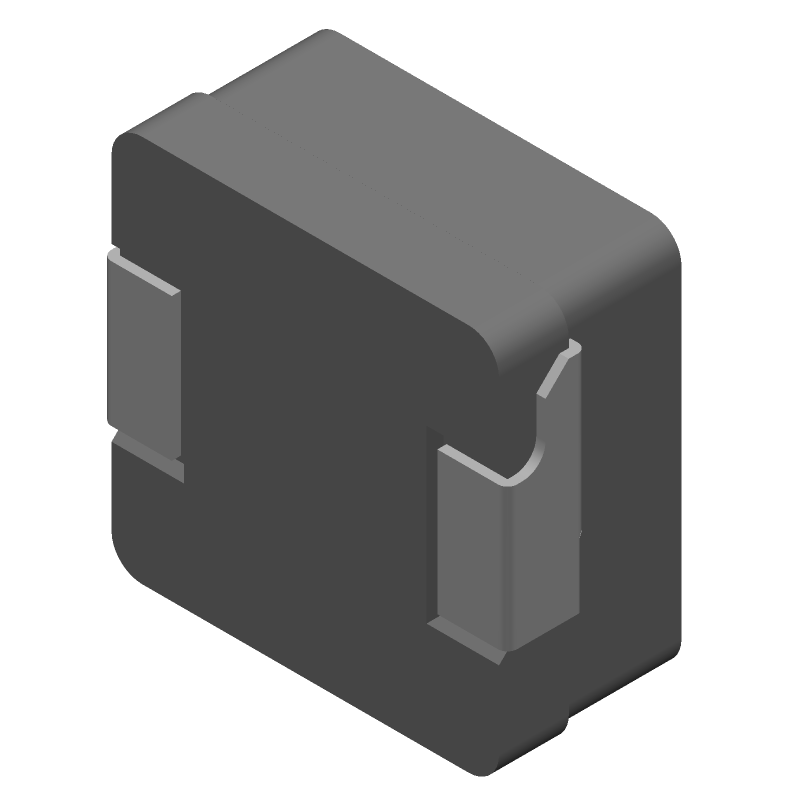

IHLP5050FDER6R8M01 CAD Models
IHLP5050FDER6R8M01 Part Data Attributes
|
|
IHLP5050FDER6R8M01
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IHLP5050FDER6R8M01
Vishay Intertechnologies
General Purpose Inductor, 6.8uH, 20%, 1 Element, Composite-Core, SMD, 5050, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Case/Size Code | 5050 | |
| Construction | Shielded Construction | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.014 Ω | |
| Inductance-Nom (L) | 6.8 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 6.4 mm | |
| Package Length | 13.2 mm | |
| Package Style | SMT | |
| Package Width | 12.9 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 11.5 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
IHLP5050FDER6R8M01 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the IHLP5050FDER6R8M01 is a rectangular pad with a size of 5.5 mm x 3.5 mm, with a non-solder mask defined (NSMD) pad shape.
-
The IHLP5050FDER6R8M01 has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a thermal interface material (TIM) to improve heat transfer between the inductor and the PCB.
-
The SRF of the IHLP5050FDER6R8M01 is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. A rough estimate can be made using the formula: SRF ≈ 1 / (2 * π * sqrt(L * C)), where L is the inductance and C is the capacitance.
-
The IHLP5050FDER6R8M01 is designed for high-frequency applications, but its performance may degrade above 100 MHz. Be sure to evaluate the inductor's impedance and loss characteristics at the specific frequency of interest.
-
Follow the recommended soldering profile for the IHLP5050FDER6R8M01, which includes a peak temperature of 260°C and a soldering time of 3-5 seconds. Ensure the PCB is clean and free of oxidation, and use a solder with a melting point below 220°C.
