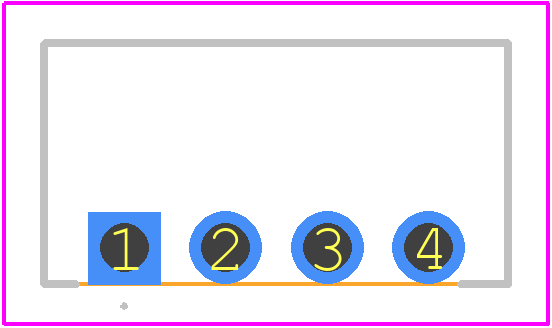

Footprint
-

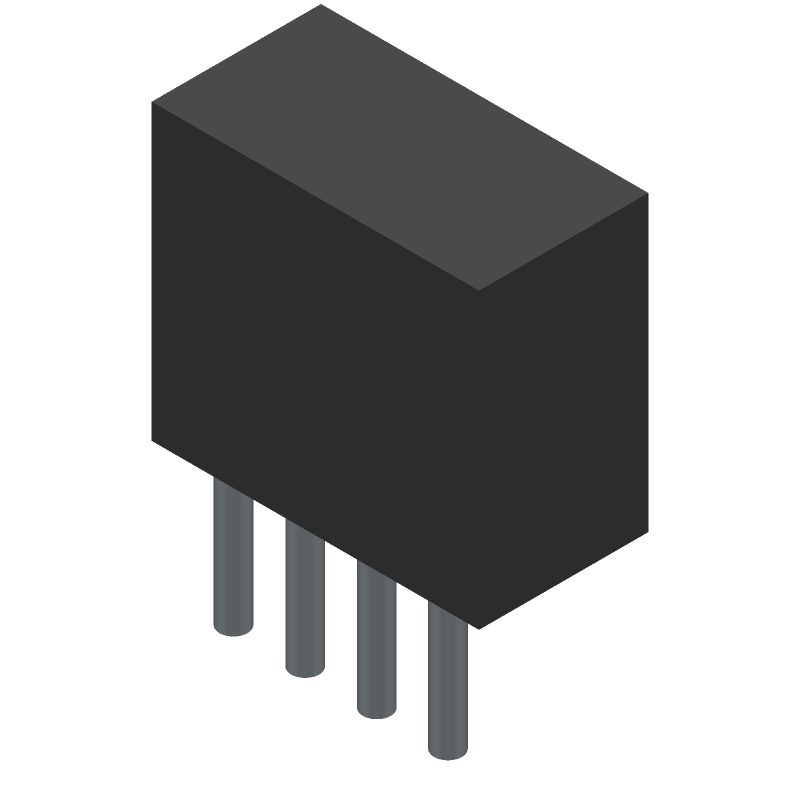

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IEB0112S12 by XP Power
Results Overview of IEB0112S12 by XP Power
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IEB0112S12 Information
IEB0112S12 by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for IEB0112S12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61AK3130
|
Newark | Dc-Dc Converter, 12V, 0.083A, Power Supply Applications:Ite, Dc/Dc Converter Type:Sip, Input Ratio:-, Output Power Max:1W, No. Of Outputs:1 Output, Output Voltage - Output 1:12V, Output Current - Output 1:83Ma, Width:6Mm Rohs Compliant: Yes |Xp Power IEB0112S12 RoHS: Compliant Min Qty: 43 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
1470-IEB0112S12-ND
|
DigiKey | DC DC CONVERTER SINGLE 12V 1W Min Qty: 43 Lead time: 10 Weeks Container: Tube | Limited Supply - Call |
|
$2.2200 | Buy Now |
|
DISTI #
IEB0112S12
|
TME | Converter: DC/DC, 1W, SIP4, THT, IEB01, OUT: 1 Min Qty: 1 | 0 |
|
$2.1600 / $2.3300 | RFQ |
Part Details for IEB0112S12
IEB0112S12 CAD Models
IEB0112S12 Part Data Attributes
IEB0112S12 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IEB0112S12 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
-
Yes, the IEB0112S12 is designed to operate in humid environments, with a humidity range of 5% to 95% RH, non-condensing.
-
The recommended input fuse value for the IEB0112S12 is 2A slow-blow or 1A fast-acting, depending on the specific application and safety requirements.
-
Yes, the IEB0112S12 is designed to meet the requirements for Class I, Division 2 hazardous locations, but it's essential to ensure that the specific application meets all relevant safety standards and regulations.
-
The typical efficiency of the IEB0112S12 is around 85%, depending on the input voltage, output load, and operating temperature.
