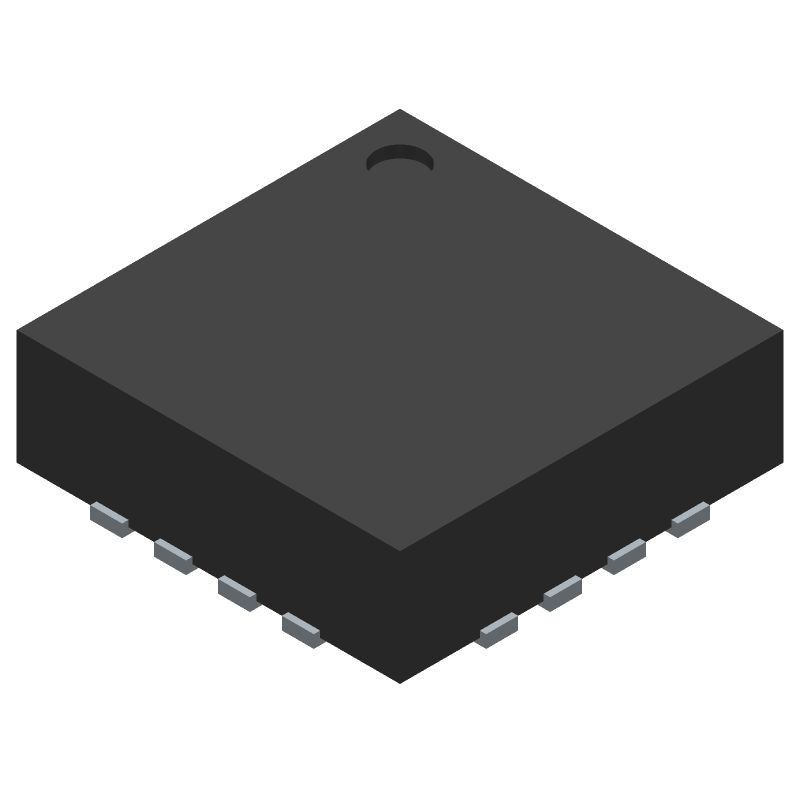

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HMC7992LP3DE by Analog Devices Inc
Results Overview of HMC7992LP3DE by Analog Devices Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
HMC7992LP3DE Information
HMC7992LP3DE by Analog Devices Inc is an RF/Microwave Switch.
RF/Microwave Switches are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for HMC7992LP3DE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK8331
|
Newark | Rf Switch, Sp4T, Silicon, 6Ghz, Lfcsp-Ep, Frequency Min:100Mhz, Frequency Max:6Ghz, Rf Ic Case Style:Lfcsp-Ep, No. Of Pins:16Pins, Supply Voltage Min:3.3V, Supply Voltage Max:5V, Operating Temperature Min:-40°C, Product Range:- Rohs Compliant: Yes |Analog Devices HMC7992LP3DE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 14 |
|
$7.1300 / $10.2500 | Buy Now |
|
DISTI #
505-HMC7992LP3DE-ND
|
DigiKey | IC RF SWITCH SP4T 6GHZ 16LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Strip |
762 In Stock |
|
$6.8751 / $10.2500 | Buy Now |
|
DISTI #
584-HMC7992LP3DE
|
Mouser Electronics | RF Switch ICs SP4T Switch RoHS: Compliant | 1346 |
|
$7.0200 / $10.2500 | Buy Now |
|
DISTI #
E54:1762_09730880
|
Arrow Electronics | RF Switch SP4T 100MHz to 6GHz 25dB 16-Pin LFCSP EP Cut Tape RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 10 Weeks Date Code: 2513 | Europe - 108 |
|
$6.8614 | Buy Now |
|
DISTI #
V36:1790_14246220
|
Arrow Electronics | RF Switch SP4T 100MHz to 6GHz 25dB 16-Pin LFCSP EP Cut Tape RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 10 Weeks Date Code: 2513 | Americas - 24 |
|
$6.8614 | Buy Now |
|
|
Analog Devices Inc | SP4T Switch Package Multiple: 1 | 153 |
|
$6.8751 / $10.2500 | Buy Now |
|
DISTI #
89496054
|
Verical | RF Switch SP4T 100MHz to 6GHz 25dB 16-Pin LFCSP EP Cut Tape RoHS: Compliant Min Qty: 108 Package Multiple: 108 Date Code: 2513 | Americas - 108 |
|
$12.4013 | Buy Now |
|
DISTI #
89490286
|
Verical | RF Switch SP4T 100MHz to 6GHz 25dB 16-Pin LFCSP EP Cut Tape RoHS: Compliant Min Qty: 24 Package Multiple: 24 Date Code: 2513 | Americas - 24 |
|
$6.8614 | Buy Now |
|
|
Rochester Electronics | HMC7992 - SP4T Switch RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$4.8300 / $6.0400 | Buy Now |
|
DISTI #
HMC7992LP3DE
|
Richardson RFPD | RF AND MICROWAVE SWITCH RoHS: Compliant Min Qty: 1 | 0 |
|
$6.2400 / $6.8900 | Buy Now |
Part Details for HMC7992LP3DE
HMC7992LP3DE CAD Models
HMC7992LP3DE Part Data Attributes
|
|
HMC7992LP3DE
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
HMC7992LP3DE
Analog Devices Inc
Nonreflective, Silicon SP4T Switch, 0.1 GHz to 6.0 GHz
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | MO-220-4, 16 PIN | |
| Pin Count | 16 | |
| Manufacturer Package Code | CP-16-38 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| 1dB Compression Point | 33 dBm | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 35 dBm | |
| Insertion Loss-Max | 1.5 dB | |
| Isolation-Min | 25 dB | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| On Time-Nom | 0.15 µs | |
| Operating Frequency-Max | 6000 MHz | |
| Operating Frequency-Min | 100 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Port Termination | ABSORPTIVE | |
| Power Supplies | 3.3/5 V | |
| RF/Microwave Device Type | SP4T | |
| Supply Current-Max | 0.23 mA | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
HMC7992LP3DE Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
-
Use a low-noise power supply, decouple the power pins, and ensure a good ground plane. Also, use a balanced layout and minimize signal trace lengths to reduce noise and improve linearity.
-
Perform a phase calibration by applying a known phase shift and adjusting the device's phase adjustment pins. Then, perform an amplitude calibration by applying a known amplitude and adjusting the device's amplitude adjustment pins.
-
Use a thermocouple or thermistor to monitor the device temperature. Ensure good airflow and use a heat sink if necessary. Avoid operating the device outside the specified temperature range of -40°C to 85°C.
-
Handle the device by the body or in an ESD-protected environment. Use an ESD wrist strap or mat, and ensure all equipment is grounded. Avoid touching the device pins or exposing it to static electricity.
