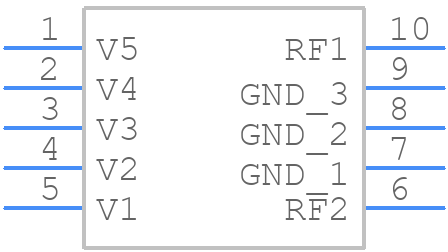

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HMC306AMS10ETR by Analog Devices Inc
Results Overview of HMC306AMS10ETR by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HMC306AMS10ETR Information
HMC306AMS10ETR by Analog Devices Inc is an RF/Microwave Attenuator.
RF/Microwave Attenuators are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for HMC306AMS10ETR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK5947
|
Newark | Digital Attenuator, 3.8Ghz, Msop, Frequency Max:3.8Ghz, Frequency Min:700Mhz, Attenuation Step Size:0.5Db, Attenuation - Typical:15.5Db, Insertion Loss:2.3Db, No. Of Bits:5Bit, Supply Voltage Min:3V, Supply Voltage Max:5V Rohs Compliant: Yes |Analog Devices HMC306AMS10ETR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 65 |
|
$5.9900 / $9.4100 | Buy Now |
|
DISTI #
1127-3087-1-ND
|
DigiKey | RF ATTENUATOR 15.5DB 10TFSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
81 In Stock |
|
$6.1898 / $9.4400 | Buy Now |
|
DISTI #
584-HMC306AMS10ETR
|
Mouser Electronics | Attenuators 5-bit Digital Attenuator RoHS: Compliant | 347 |
|
$5.9900 / $9.4000 | Buy Now |
|
DISTI #
V72:2272_07093961
|
Arrow Electronics | 5Bit 0.5dBStep 15.5dB 3.8GHz 10-Pin MSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2147 Container: Cut Strips | Americas - 178 |
|
$5.6240 / $9.3490 | Buy Now |
|
|
Analog Devices Inc | 5-bit Digital Attenuator Min Qty: 1 Package Multiple: 500 | 11017 |
|
$6.1898 / $9.4400 | Buy Now |
|
DISTI #
26620603
|
Verical | 5Bit 0.5dBStep 15.5dB 3.8GHz 10-Pin MSOP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 11000 |
|
$5.1824 | Buy Now |
|
DISTI #
HMC306AMS10ETR
|
Richardson RFPD | ATTENUATOR - DIGITALLY CONTROLLED RoHS: Compliant Min Qty: 500 | 0 |
|
$5.4800 / $5.5500 | Buy Now |
Part Details for HMC306AMS10ETR
HMC306AMS10ETR CAD Models
HMC306AMS10ETR Part Data Attributes
|
|
HMC306AMS10ETR
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
HMC306AMS10ETR
Analog Devices Inc
0.5 dB LSB GaAs MMIC 5-Bit Digital Attenuator, 0.7 - 3.8 GHz
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 10 | |
| Manufacturer Package Code | HRM-10-1 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| RF/Microwave Device Type | VARIABLE ATTENUATOR |
