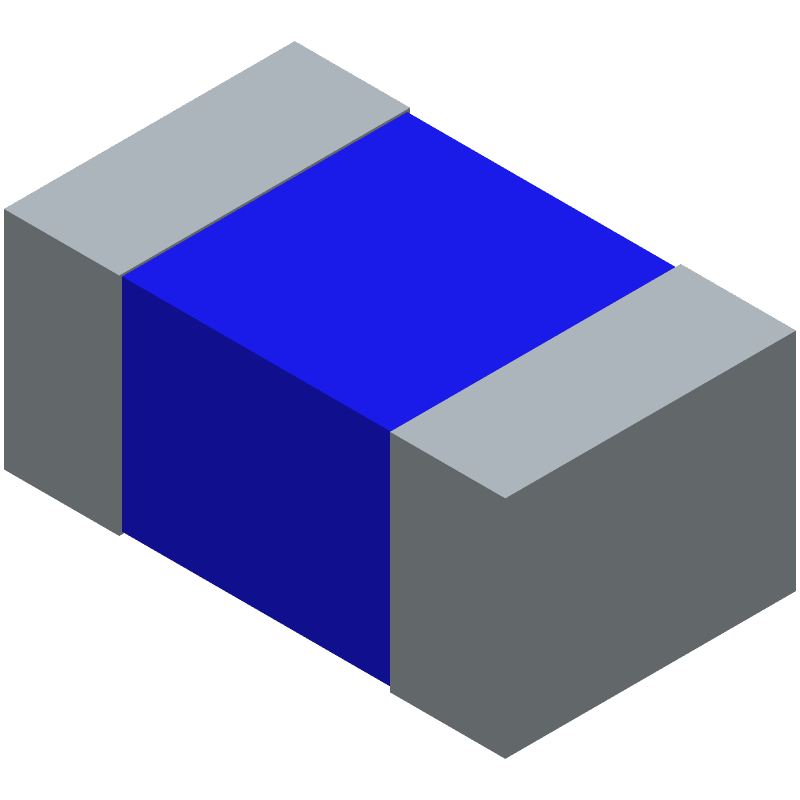

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HLC02180HTTR by Kyocera AVX Components
Results Overview of HLC02180HTTR by Kyocera AVX Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
HLC02180HTTR Information
HLC02180HTTR by Kyocera AVX Components is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for HLC02180HTTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28W2890
|
Newark | Inductor, 18Nh, 210Ma, 1.5Nh, 3Ghz, Inductance:18Nh, Dc Resistance Max:1.5Ohm, Self Resonant Frequency:3Ghz, Dc Current Rating:210Ma, Inductor Case/Package:0402 [1005 Metric], Product Range:Mlo Hlc02 Series, Product Length:1Mm Rohs Compliant: Yes |Kyocera Avx HLC02180HTTR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4679 |
|
$0.0150 | Buy Now |
|
DISTI #
478-7185-1-ND
|
DigiKey | FIXED IND 18NH 210MA 1.5 OHM SMD Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1854 / $0.4200 | Buy Now |
|
DISTI #
28W2890
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 28W2890) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Ammo Pack | 4679 Partner Stock |
|
$0.2800 / $0.3780 | Buy Now |
|
DISTI #
HLC02180HTTR
|
Avnet Americas | - Tape and Reel (Alt: HLC02180HTTR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.1374 / $0.1452 | Buy Now |
|
DISTI #
HLC02180HTTR
|
Richardson RFPD | RF CHIP INDUCTOR RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ |
Part Details for HLC02180HTTR
HLC02180HTTR CAD Models
HLC02180HTTR Part Data Attributes
|
|
HLC02180HTTR
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
HLC02180HTTR
Kyocera AVX Components
General Purpose Inductor, 0.018uH, 3%, Ceramic-Core, 0402
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Case/Size Code | 0402 | |
| Construction | Rectangular | |
| DC Resistance | 1.5 Ω | |
| Inductance-Nom (L) | 0.018 µH | |
| Inductor Application | HIGH CURRENT INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.35 mm | |
| Package Length | 1 mm | |
| Package Style | SMT | |
| Package Width | 0.58 mm | |
| Packing Method | TR | |
| Quality Factor-Min (at L-nom) | 28 | |
| Rated Current-Max | 0.21 A | |
| Self Resonance Frequency | 3000 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 450 MHz | |
| Tolerance | 3% |
HLC02180HTTR Frequently Asked Questions (FAQ)
-
The recommended land pattern for HLC02180HTTR is available in the Kyocera AVX Components' recommended land pattern document, which can be found on their website. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
-
While HLC02180HTTR is a robust component, it's still important to consider the vibration specifications in your application. Kyocera AVX Components recommends following the guidelines in their vibration testing document, which outlines the component's vibration tolerance. Additionally, it's essential to ensure proper mounting and soldering to prevent mechanical stress on the component.
-
To prevent electrostatic discharge (ESD) damage, it's crucial to follow proper ESD handling procedures when working with HLC02180HTTR. This includes using ESD-safe workstations, wrist straps, and packaging materials. Kyocera AVX Components also recommends following the guidelines in their ESD handling document, which outlines specific precautions for their components.
-
While the datasheet specifies the maximum operating temperature range for HLC02180HTTR, it's essential to note that the component's performance may degrade at higher temperatures. Kyocera AVX Components recommends derating the component's power rating at higher temperatures to ensure reliable operation. Consult the datasheet and application notes for more information.
-
HLC02180HTTR is designed to operate in a variety of environments, but it's still important to consider the humidity specifications in your application. Kyocera AVX Components recommends following the guidelines in their humidity testing document, which outlines the component's moisture sensitivity level. Additionally, it's essential to ensure proper sealing and conformal coating to prevent moisture ingress.
