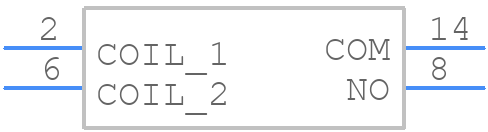

Part Symbol
-

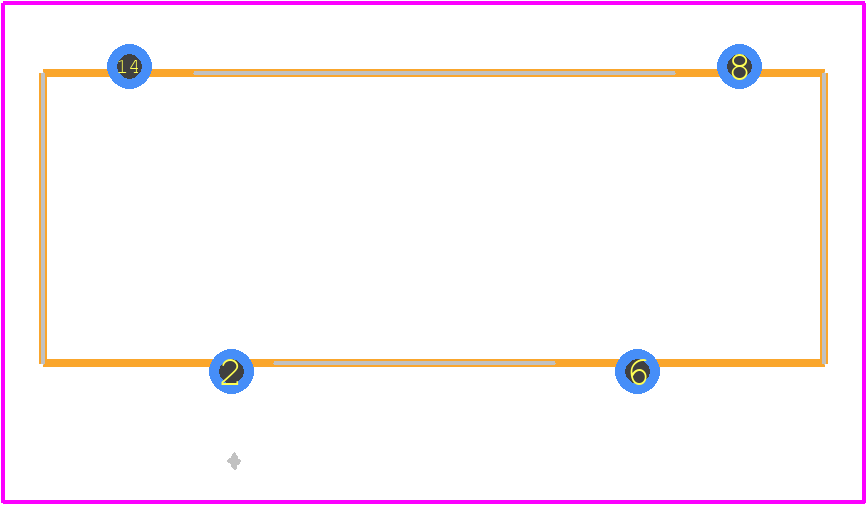

Footprint
-

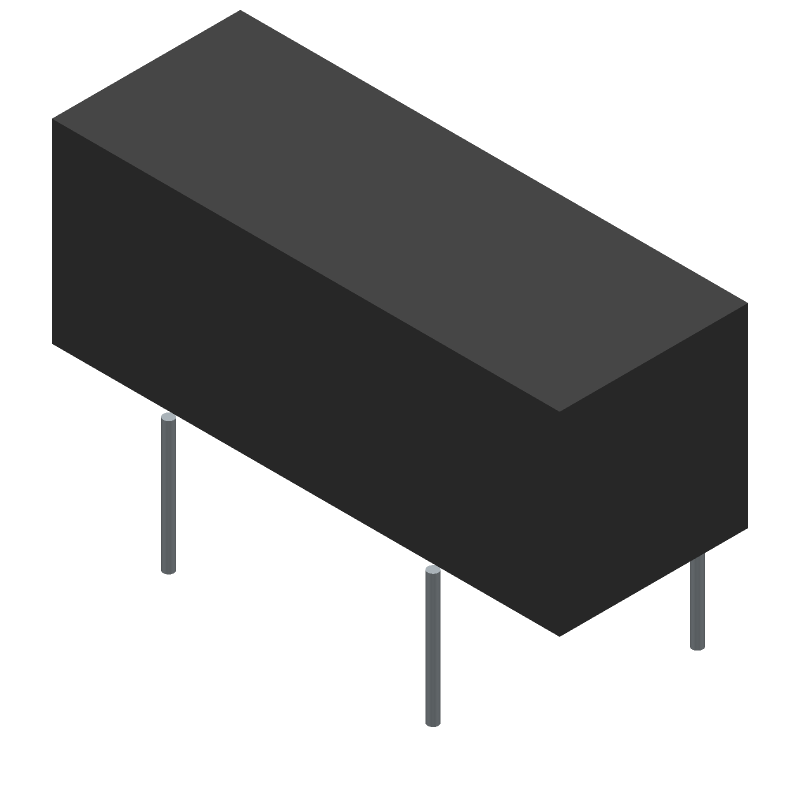

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HE751A0510 by Hamlin Electronics
Results Overview of HE751A0510 by Hamlin Electronics
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HE751A0510 Information
HE751A0510 by Hamlin Electronics is a Reed Relay.
Reed Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for HE751A0510
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K1327
|
Newark | Relay, Reed, Spst-No, 300Vdc, 0.5A, Tht, Contact Configuration:Spst-No, Coil Voltage:5Vdc, Product Range:He700 Series, Relay Mounting:Through Hole, Coil Resistance:500Ohm, Switching Current Max:500Ma, Switching Voltage Max:300Vdc Rohs Compliant: Yes |HAMLIN HE751A0510 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.0400 / $2.8900 | Buy Now |
|
|
Bristol Electronics | 192 |
|
RFQ | ||
|
|
Quest Components | DRY REED RELAY, 1 FORM A, SPST, MOMENTARY, 0.01A (COIL), 5VDC (COIL), 50MW (COIL), 0.5A (CONTACT), 300VDC (CONTACT), DC INPUT, RANDOM, DC OUTPUT, THRO | 265 |
|
$3.7000 / $6.0000 | Buy Now |
Part Details for HE751A0510
HE751A0510 CAD Models
HE751A0510 Part Data Attributes
|
|
HE751A0510
Hamlin Electronics
Buy Now
Datasheet
|
Compare Parts:
HE751A0510
Hamlin Electronics
Dry Reed Relay, 1 Form A, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 0.5A (Contact), 300VDC (Contact), DC Input, Random, DC Output, Through Hole-Straight Mount,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | HAMLIN ELECTRONICS EUROPE LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.49.00.50 | |
| Samacsys Manufacturer | HAMLIN | |
| Additional Feature | WITH COIL SUPPRESSION DIODE | |
| Body Breadth | 7.22 mm | |
| Body Height | 5.5 mm | |
| Body Length or Diameter | 19.5 mm | |
| Coil Current(DC)-Max | 0.01 A | |
| Coil Operate Voltage(DC) | 3.75 V | |
| Coil Power | 50 mW | |
| Coil Release Voltage(DC) | 0.5 V | |
| Coil Resistance | 500 Ω | |
| Coil Voltage(DC)-Max | 5 V | |
| Coil Voltage-Nom | 5 V | |
| Coil/Input Supply Type | DC | |
| Contact Current(DC)-Max | 0.5 A | |
| Contact (DC) Max Power Rating R Load | 10W@300VDC | |
| Contact (DC) Max Rating R Load | .5A@300VDC | |
| Contact Resistance | 150 mΩ | |
| Contact Voltage(DC)-Max | 300 V | |
| Contact/Output Supply Type | DC | |
| Input Switching Control Type | Random | |
| Insulation Resistance | 10000000000 Ω | |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT | |
| Number of Terminals | 8 | |
| Operate Time | 1 ms | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Physical Dimension | 19.5mm x 7.22mm x 5.5mm | |
| Reference Standard | CUL; UL | |
| Relay Action | MOMENTARY | |
| Relay Form | 1 FORM A | |
| Relay Function | SPST | |
| Relay Type | DRY REED RELAY | |
| Release Time | 1 ms | |
| Sealing | HERMETICALLY SEALED | |
| Surface Mount | NO | |
| Terminal Length | 0.002999745999491999 inch | |
| Termination Type | SOLDER |
