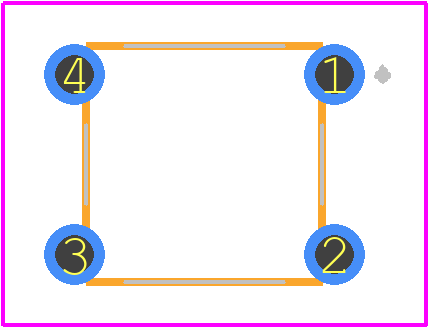

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FSM2JLH by TE Connectivity
Results Overview of FSM2JLH by TE Connectivity
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
FSM2JLH Information
FSM2JLH by TE Connectivity is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for FSM2JLH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
23R8450
|
Newark | Tactile Switch, Spst, 0.05A, 24V, Tht, Product Range:Fsmj Series, Actuator Orientation:Top Actuated, Switch Mounting:Through Hole, Actuator Style:Round Button, Actuating Force:100Gf, Contact Rating:50Ma At 24Vdc, Ip Rating:- Rohs Compliant: Yes |Alcoswitch Te Connectivity FSM2JLH RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7941 |
|
$0.0710 / $0.0830 | Buy Now |
|
DISTI #
23R8450
|
Avnet Americas | - Bulk (Alt: 23R8450) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks, 4 Days Container: Bulk | 8041 Partner Stock |
|
$0.1020 / $0.1260 | Buy Now |
|
DISTI #
506-FSM2JLH
|
Mouser Electronics | Tactile Switches 6MM HIGH TEMP TACTILE SWITCH RoHS: Compliant | 23310 |
|
$0.0660 / $0.1400 | Buy Now |
|
|
Onlinecomponents.com | Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 24VDC 100000Cycles 0.98N Thru-Hole Loose RoHS: Compliant | 0 |
|
$0.0505 / $0.0877 | Buy Now |
|
DISTI #
1825910-1
|
TTI | Tactile Switches SWITCH TACTILE Min Qty: 750 Package Multiple: 750 Container: Each |
Americas - 0 Limited Supply - Call TTI |
|
Buy Now | |
|
DISTI #
000000000002659457
|
Sager | Tactile Switches 6MM HIGH TEMP TACTILE SWITCH | 0 |
|
Buy Now | |
|
|
Master Electronics | Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 24VDC 100000Cycles 0.98N Thru-Hole Loose RoHS: Compliant | 0 |
|
$0.0505 / $0.0877 | Buy Now |
Part Details for FSM2JLH
FSM2JLH CAD Models
FSM2JLH Part Data Attributes
|
|
FSM2JLH
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
FSM2JLH
TE Connectivity

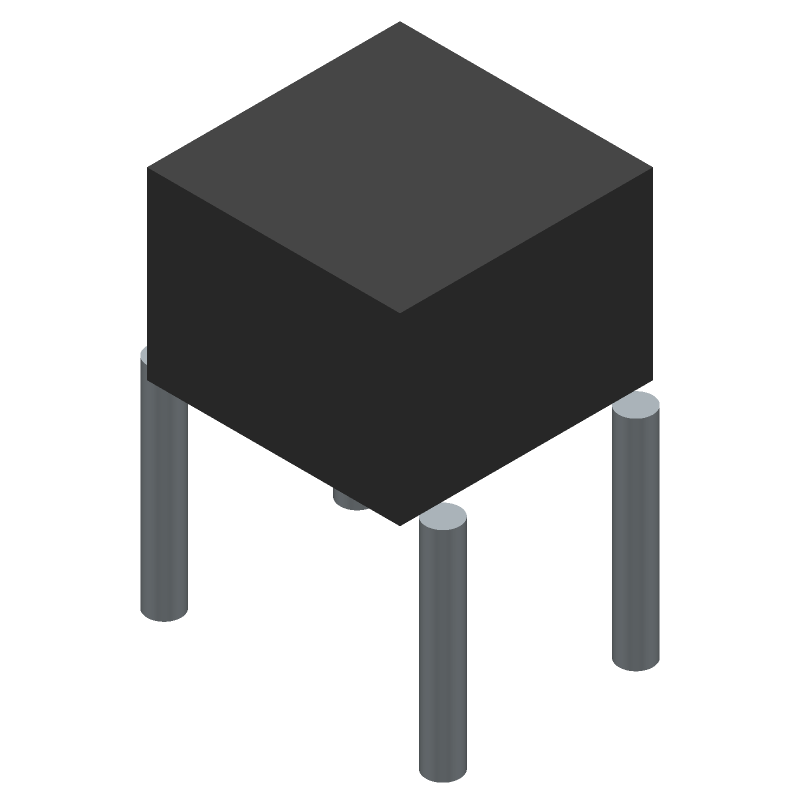

KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 1.47N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Factory Lead Time | 21 Weeks, 4 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Actuator Color | BROWN | |
| Actuator Length | 0.028 inch | |
| Actuator Material | POLYBUTYLENE TEREPHTHALATE | |
| Body Breadth | 5.99 mm | |
| Body Color | BLACK | |
| Body Height | 3.61 mm | |
| Body Length or Diameter | 5.99 mm | |
| Center Contact Plating | SILVER | |
| Circuit Configuration | 1X1 | |
| Contact Current(AC)-Max | 0.05 A | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | .05A@24VDC | |
| Contact Voltage(DC)-Max | 24 V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| Housing Material | NYLON | |
| Mounting Feature | PANEL MOUNT | |
| Number of Switches | 1 | |
| Operating Force-Max | 0.98 N | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -35 °C | |
| Packing Method | BULK | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Termination Type | SOLDER |
Alternate Parts for FSM2JLH
This table gives cross-reference parts and alternative options found for FSM2JLH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FSM2JLH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| KSA0M311LFT | ITT Interconnect Solutions | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 32VDC, 1.3N, Solder Terminal, Through Hole-straight, ROHS COMPLIANT | FSM2JLH vs KSA0M311LFT |
| FSM17JL | TE Connectivity | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 1.47N, THROUGH HOLE-STRAIGHT | FSM2JLH vs FSM17JL |
| FSM14JL | TE Connectivity | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 1.47N, THROUGH HOLE-STRAIGHT | FSM2JLH vs FSM14JL |
| 1BT003-2712L-001 | Foxconn | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 1.27N, Solder Terminal, Through Hole-straight, LEAD FREE | FSM2JLH vs 1BT003-2712L-001 |
| PHAP3301A | APEM Inc | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Through Hole-straight | FSM2JLH vs PHAP3301A |
| KSM0631C | Hokuriku Electric Industry Co Ltd | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 24VDC, 3.24N, Solder Terminal, Through Hole-right Angle | FSM2JLH vs KSM0631C |
| KT11B0CM | ITT Interconnect Solutions | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary, 0.02A, 50VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight | FSM2JLH vs KT11B0CM |
| FSM9JL | TE Connectivity | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 1.47N, THROUGH HOLE-STRAIGHT | FSM2JLH vs FSM9JL |
| KT11P2CM | C&K | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY, 0.02A, 50VDC, THROUGH HOLE-STRAIGHT | FSM2JLH vs KT11P2CM |
| FSM10JLH | TE Connectivity | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 1.47N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT | FSM2JLH vs FSM10JLH |
