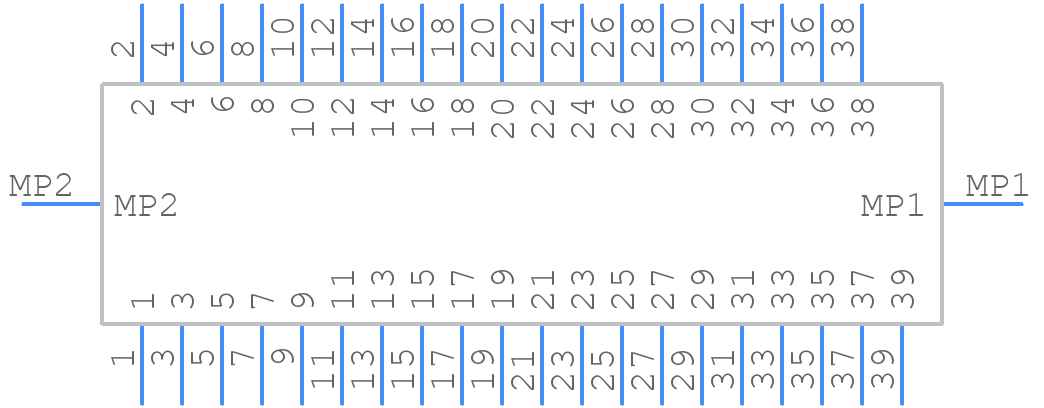

Part Symbol
-
Footprint
-

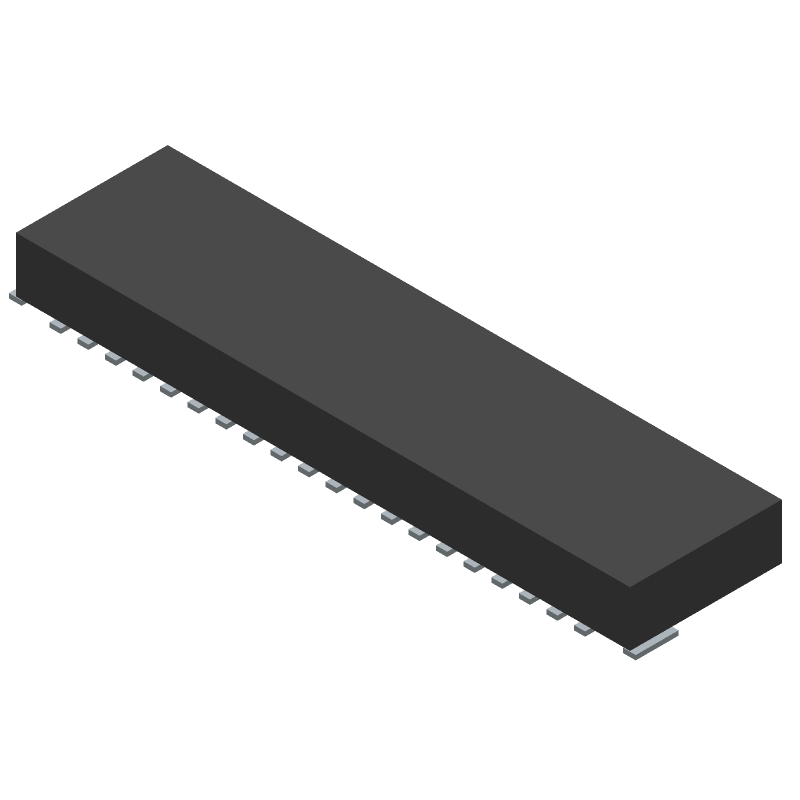

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FH39-39S-0.3SHW(10) by Hirose Electric Co Ltd
Results Overview of FH39-39S-0.3SHW(10) by Hirose Electric Co Ltd
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FH39-39S-0.3SHW(10) Information
FH39-39S-0.3SHW(10) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for FH39-39S-0.3SHW(10)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
580-1800-1-10
|
Avnet Abacus | Conn FPC Connector SKT 39 POS 03mm Solder RA SMD TR (Alt: 580-1800-1-10) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | Abacus - 0 |
|
Buy Now |
Part Details for FH39-39S-0.3SHW(10)
FH39-39S-0.3SHW(10) CAD Models
FH39-39S-0.3SHW(10) Part Data Attributes
|
|
FH39-39S-0.3SHW(10)
Hirose Electric Co Ltd
Buy Now
Datasheet
|
Compare Parts:
FH39-39S-0.3SHW(10)
Hirose Electric Co Ltd
Card Edge Connector, 39 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | HIROSE ELECTRIC CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Hirose | |
| Additional Feature | LOW PROFILE | |
| Connector Type | FFC/FPC CONNECTOR | |
| Contact Finish Mating | TIN | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | FEMALE | |
| Contact Material | COPPER ALLOY | |
| Contact Pattern | STAGGERED | |
| Contact Resistance | 100 mΩ | |
| Contact Style | BELLOWED TYPE | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 120VAC V | |
| Durability | 10 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | ZIF N | |
| Insulation Resistance | 50000000 Ω | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.012 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | STAGGERED | |
| Rated Current (Signal) | 0.2 A | |
| Reference Standard | UL | |
| Terminal Pitch | 0.3 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 39 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | ZIF N |
FH39-39S-0.3SHW(10) Frequently Asked Questions (FAQ)
-
The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
-
Yes, the FH39-39S-0.3SHW(10) is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and ratings.
-
The FH39-39S-0.3SHW(10) has a IP67 rating, making it suitable for outdoor use. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific environmental ratings and considerations.
-
The FH39-39S-0.3SHW(10) is designed for use with 30 AWG wire. While it may be possible to use it with a different wire gauge, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific wire gauge compatibility and recommendations.
-
The operating temperature range for the FH39-39S-0.3SHW(10) is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and considerations.
