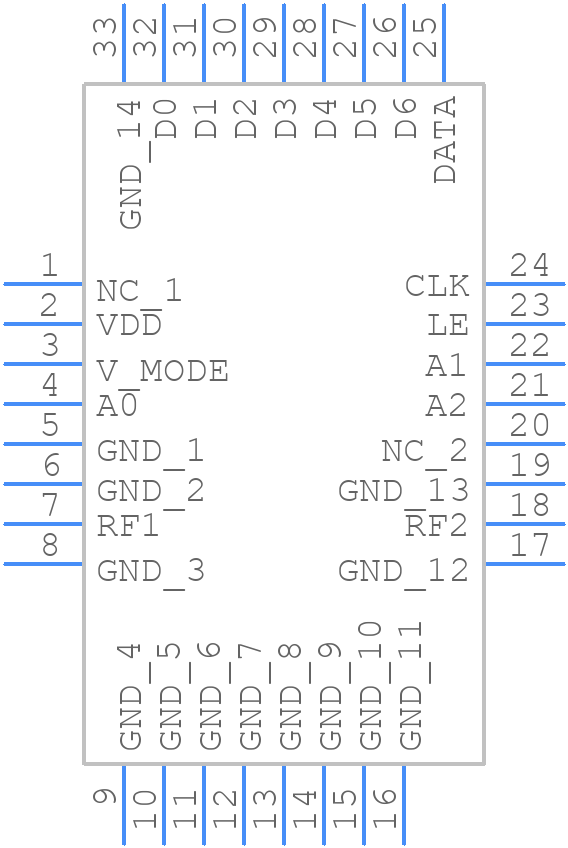

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for F1956NBGI by Renesas Electronics Corporation
Results Overview of F1956NBGI by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
F1956NBGI Information
F1956NBGI by Renesas Electronics Corporation is an RF/Microwave Attenuator.
RF/Microwave Attenuators are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for F1956NBGI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC8833
|
Newark | Digital Attenuator, 1Mhz-4Ghz, Tqfn-32, Frequency Max:4Ghz, Frequency Min:1Mhz, Attenuation Step Size:0.25Db, Attenuation - Typical:31.75Db, Insertion Loss:1.3Db, No. Of Bits:7Bit, Supply Voltage Min:3V, Supply Voltage Max:5.25V, Rf Rohs Compliant: Yes |Renesas F1956NBGI RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 24 |
|
$4.4400 / $6.6600 | Buy Now |
|
DISTI #
800-2973-ND
|
DigiKey | RF ATTENUATOR 31.75DB 32WFQFN Min Qty: 1 Lead time: 12 Weeks Container: Tray | Temporarily Out of Stock |
|
$4.6105 | Buy Now |
|
DISTI #
972-F1956NBGI
|
Mouser Electronics | Attenuators 7-Bit 0.25dB WideB 31.5dB Attenuator RoHS: Compliant | 620 |
|
$4.2200 / $6.6600 | Buy Now |
|
DISTI #
F1956NBGI
|
EBV Elektronik | (Alt: F1956NBGI) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for F1956NBGI
F1956NBGI CAD Models
F1956NBGI Part Data Attributes
|
|
F1956NBGI
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
F1956NBGI
Renesas Electronics Corporation
7-bit 0.25dB Glitch-Free™ Wideband Digital Step Attenuator, VFQFPN490/Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | VFQFPN | |
| Pin Count | 32 | |
| Manufacturer Package Code | NBG32P2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | NLR | |
| HTS Code | 8542390001 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| JESD-609 Code | e3 | |
| Terminal Finish | Tin (Sn) |
