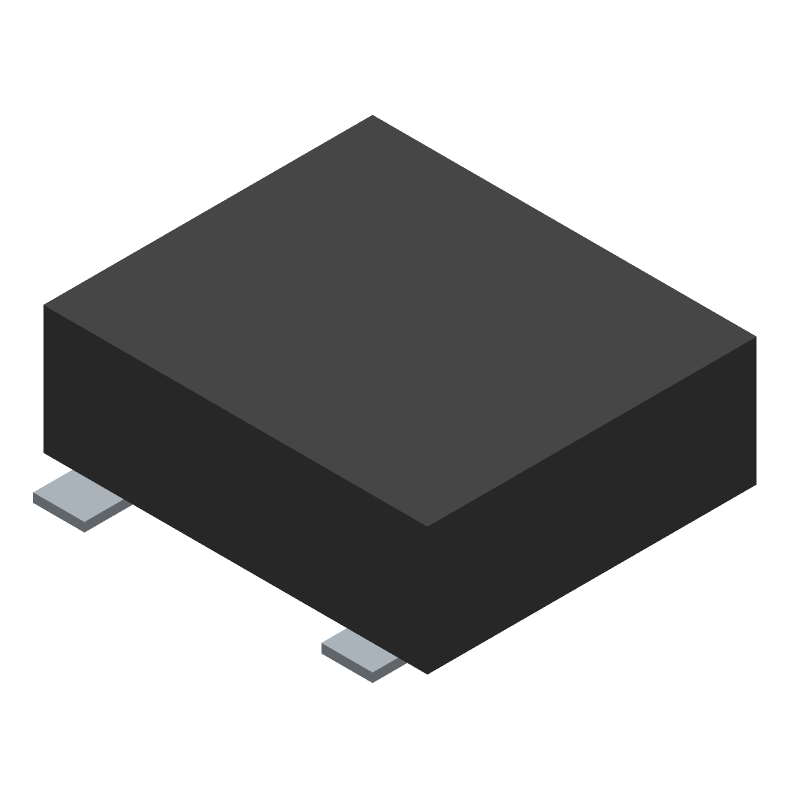

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESE13V01C by Panasonic Electronic Components
Results Overview of ESE13V01C by Panasonic Electronic Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
ESE13V01C Information
ESE13V01C by Panasonic Electronic Components is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for ESE13V01C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63W1719
|
Newark | Switch, Detect, Spst, No, Product Range:-, Contact Configuration:Spst-No, Switch Terminals:Solder, Contact Current Max:10Ma, Contact Voltage Dc Nom:5V, External Height:1.2Mm, External Width:3.6Mm, External Depth:4.2Mm, Svhc:No Svhc Rohs Compliant: Yes |Panasonic ESE13V01C RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1375 |
|
$0.4300 / $0.5220 | Buy Now |
|
DISTI #
70363078
|
RS | Detector switch, SMT, SPNO,1VL, no boss Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$1.5600 | RFQ |
|
DISTI #
ESE13V01C
|
TME | Switch: detecting, Pos: 2, SPST, 0.01A/5VDC, Leads: straight, 500mΩ Min Qty: 2 | 2775 |
|
$0.3590 / $0.5030 | Buy Now |
Part Details for ESE13V01C
ESE13V01C CAD Models
ESE13V01C Part Data Attributes
|
|
ESE13V01C
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ESE13V01C
Panasonic Electronic Components
Snap Acting/Limit Switch, SPST, Momentary, 0.01A, 5VDC, Solder Terminal, Lever Actuator, Surface Mount-right Angle
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Actuator Type | LEVER | |
| Body Breadth | 3.6 mm | |
| Body Height | 1.2 mm | |
| Body Length or Diameter | 4.2 mm | |
| Contact Current(DC)-Max | 0.01 A | |
| Contact (DC) Max Rating R Load | .01A@5VDC | |
| Contact Voltage(DC)-Max | 5 V | |
| Electrical Life | 50000 Cycle(s) | |
| Mounting Feature | SURFACE MOUNT-RIGHT ANGLE | |
| Operating Force-Max | 0.3 N | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -10 °C | |
| Packing Method | BOX; TR | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Finish | Tin (Sn) - Copper (Cu) | |
| Termination Type | SOLDER |
Alternate Parts for ESE13V01C
This table gives cross-reference parts and alternative options found for ESE13V01C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESE13V01C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ESE2121BT | Panasonic Electronic Components | Check for Price | Snap Acting/Limit Switch, SPST, Momentary, 0.01A, 5VDC, Solder Terminal, Lever Actuator, Surface Mount-straight | ESE13V01C vs ESE2121BT |
| ESE2121AT | Panasonic Electronic Components | Check for Price | Snap Acting/Limit Switch, SPST, Momentary, 0.01A, 5VDC, Solder Terminal, Lever Actuator, Surface Mount-straight | ESE13V01C vs ESE2121AT |
ESE13V01C Frequently Asked Questions (FAQ)
-
The recommended land pattern for ESE13V01C is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm solder mask clearance.
-
While the ESE13V01C is rated for operation up to 125°C, it's recommended to derate the voltage and current ratings when operating above 85°C to ensure reliability and prevent thermal runaway.
-
To prevent damage, handle the ESE13V01C by the tabs or body, avoiding touching the electrical contacts. Use a soldering iron with a temperature of 350°C or less, and avoid applying excessive force or pressure during rework.
-
The ESR of the ESE13V01C is approximately 0.15 ohms at 100 kHz, but this value may vary depending on the frequency and operating conditions.
-
While the ESE13V01C is designed to withstand normal vibration, it's recommended to secure the component using a suitable mounting method, such as adhesive or a mechanical clamp, to prevent movement and ensure reliability in high-vibration applications.
