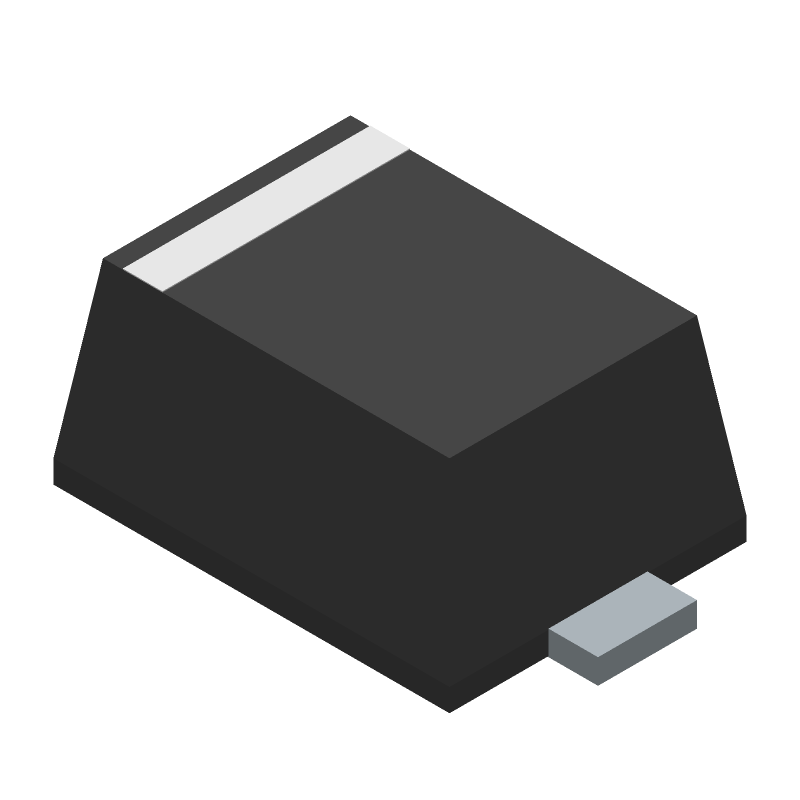

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESD9X5.0ST5G by onsemi
Results Overview of ESD9X5.0ST5G by onsemi
- Distributor Offerings: (34 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
ESD9X5.0ST5G Information
ESD9X5.0ST5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD9X5.0ST5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2627964
|
element14 Asia-Pacific | DIODE, ESD PROTECTION, AEC-Q101, 65PF RoHS: Compliant Min Qty: 5 Container: Cut Tape | 2256 |
|
$0.0400 / $0.1600 | Buy Now |
|
DISTI #
2627964RL
|
element14 Asia-Pacific | DIODE, ESD PROTECTION, AEC-Q101, 65PF RoHS: Compliant Min Qty: 500 Container: Reel | 2256 |
|
$0.0400 | Buy Now |
|
DISTI #
2985324
|
element14 Asia-Pacific | , , AEC-Q101, 65PF RoHS: Compliant Min Qty: 8000 Container: Reel | 0 |
|
$0.0200 | Buy Now |
|
DISTI #
ESD9X5.0ST5GOSCT-ND
|
DigiKey | TVS DIODE 5VWM 12.3VC SOD923 Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
328057 In Stock |
|
$0.0290 / $0.1100 | Buy Now |
|
DISTI #
863-ESD9X5.0ST5G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SOD-923 ESD PROT RoHS: Compliant | 159841 |
|
$0.0150 / $0.1100 | Buy Now |
|
DISTI #
E02:0323_00077092
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 5V 12.3Vc 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 9 Weeks Date Code: 2507 | Europe - 1576000 |
|
$0.0141 / $0.0147 | Buy Now |
|
DISTI #
V36:1790_07305730
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 5V 12.3Vc 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 9 Weeks Date Code: 2416 | Americas - 312000 |
|
$0.0144 / $0.0145 | Buy Now |
|
DISTI #
V72:2272_07305730
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 5V 12.3Vc 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2411 Container: Cut Strips | Americas - 2273 |
|
$0.0161 / $0.1028 | Buy Now |
|
DISTI #
70339637
|
RS | ESD9X5.0ST5G, Uni-Directional TVS Diode, 150mW, 2-Pin SOD-923 Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0400 / $0.0470 | RFQ |
|
|
Future Electronics | ESD9X5.0ST5G Series 6.2 V 65 pF TVS Diode for ESD Protection - SOD-923 RoHS: Compliant pbFree: Yes Min Qty: 8000 Package Multiple: 8000 Lead time: 9 Weeks Container: Reel | 336000Reel |
|
$0.0151 / $0.0163 | Buy Now |
Part Details for ESD9X5.0ST5G
ESD9X5.0ST5G CAD Models
ESD9X5.0ST5G Part Data Attributes
|
|
ESD9X5.0ST5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD9X5.0ST5G
onsemi
ESD Protection Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-923, 1.0x0.6, 0.43 Max Height | |
| Pin Count | 2 | |
| Manufacturer Package Code | 514AB | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, PRSM-NOM | |
| Breakdown Voltage-Min | 6.2 V | |
| Clamping Voltage-Max | 12.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 107 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.15 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for ESD9X5.0ST5G
This table gives cross-reference parts and alternative options found for ESD9X5.0ST5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESD9X5.0ST5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UESD5.0ST5G | onsemi | Check for Price | ESD Protection Diode, SOD-723 2 LEAD, 8000-REEL | ESD9X5.0ST5G vs UESD5.0ST5G |
| ESD9M5.0ST5G | onsemi | $0.0740 | Low Capacitance ESD Protection; Unidirectional, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X5.0ST5G vs ESD9M5.0ST5G |
| ESD9X7.0ST5G | onsemi | $50.1098 | ESD Protection Diode, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X5.0ST5G vs ESD9X7.0ST5G |
| ESD9X12ST5G | onsemi | $0.0353 | ESD Protection Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL | ESD9X5.0ST5G vs ESD9X12ST5G |
| ESD9R3.3ST5G | onsemi | $0.2887 | ESD Protection Diode, Ultra-Low Leakage, Low Capacitance, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X5.0ST5G vs ESD9R3.3ST5G |
| ESD9X3.3ST5G | onsemi | $0.0430 | ESD Protection Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL | ESD9X5.0ST5G vs ESD9X3.3ST5G |
| ESD9L3.3ST5G | onsemi | $0.0500 | ESD Protection Diode, Ultra Low Capacitance, Unidirectional, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL | ESD9X5.0ST5G vs ESD9L3.3ST5G |
ESD9X5.0ST5G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for ESD9X5.0ST5G is -40°C to 125°C.
-
ESD9X5.0ST5G protects against ESD by using a combination of voltage clamping and current limiting to prevent damage to sensitive electronics.
-
The response time of ESD9X5.0ST5G to an ESD event is typically in the range of 1-2 nanoseconds.
-
Yes, ESD9X5.0ST5G is designed to protect high-speed data lines up to 5 Gbps and is suitable for use in high-speed interfaces such as USB, HDMI, and Ethernet.
-
Yes, ESD9X5.0ST5G is designed to be compatible with industry-standard ESD protection devices and can be used as a drop-in replacement in many applications.
