Resistors / Fixed Resistors / ERJ3EKF9100V
Datasheets
ERJ3EKF9100V by: Panasonic Electronic Components

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

Part Details for ERJ3EKF9100V by Panasonic Electronic Components

Results Overview of ERJ3EKF9100V by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Energy and Power Systems Renewable Energy

ERJ3EKF9100V Information

ERJ3EKF9100V by Panasonic Electronic Components is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for ERJ3EKF9100V

Part # Distributor Description Stock Price Buy
DISTI # 53W4691
Newark Res, Thick Film, 910R, 1%, 0.1W, 0603, Resistance:910Ohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:Precision, Voltage Rating:75V Rohs Compliant: Yes |Panasonic ERJ3EKF9100V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 28
  • 1 $0.0010
  • 25 $0.0010
  • 50 $0.0010
  • 100 $0.0010
  • 250 $0.0010
  • 500 $0.0010
  • 1,000 $0.0010
  • 2,500 $0.0010
$0.0010 Buy Now
DISTI # 73AC7515
Newark Res, 910R, 1%, 0.1W, 0603, Thick Film, Resistor Case Style:0603 [1608 Metric], Resistance:910Ohm, Product Range:Erj3Ek Series, Voltage Rating:75V, Resistor Element Material:Thick Film, Power Rating:100Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Panasonic ERJ3EKF9100V RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.0110
  • 10,000 $0.0090
  • 20,000 $0.0070
$0.0070 / $0.0110 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 PPM, 910 OHM, SURFACE MOUNT, 0603 34771
  • 1 $0.0224
  • 1,430 $0.0084
  • 5,953 $0.0042
$0.0042 / $0.0224 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 PPM, 910 OHM, SURFACE MOUNT, 0603 (Also Known As: ERJ-3EKF9100V) 34771
  • 1 $0.0224
  • 1,430 $0.0084
  • 5,953 $0.0042
$0.0042 / $0.0224 Buy Now
Future Electronics Precision Thick Film Chip Resistors / 0603 / 1% / 910Ohm / 0,1W / T.C.R. -100 to Min Qty: 5000 Package Multiple: 5000 40000
null
  • 5,000 $0.0042
  • 20,000 $0.0041
  • 100,000 $0.0039
  • 200,000 $0.0038
  • 625,000 $0.0036
$0.0036 / $0.0042 Buy Now
DISTI # ERJ3EKF9100V
TME Resistor: thick film, 0603, 910Ω, 100mW, ±1%, 100ppm/°C Min Qty: 5000 0
  • 5,000 $0.0068
$0.0068 RFQ
DISTI # ERJ3EKF9100V
IBS Electronics ERJ3EKF9100V by Panasonic is a thick film chip resistor with a resistance of 910 ohms, 1% tolerance, 1/10W power rating, and 0603 package size, ideal for surface-mount applications. Min Qty: 5000 Package Multiple: 1 40000
  • 5,000 $0.0055
  • 20,000 $0.0053
  • 100,000 $0.0051
  • 200,000 $0.0050
  • 625,000 $0.0047
$0.0047 / $0.0055 Buy Now
DISTI # ERJ3EKF9100V
Avnet Abacus SMD Chip Resistor 910 Ohm 1 100 mW 0603 1608 Metric Thick Film Precision - Tape and Reel (Alt: ERJ3EKF9100V) RoHS: Compliant Min Qty: 50000 Package Multiple: 5000 Lead time: 21 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 5000 30000
  • 25,000 $0.0072
  • 30,000 $0.0066
$0.0066 / $0.0072 Buy Now

Part Details for ERJ3EKF9100V

ERJ3EKF9100V CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

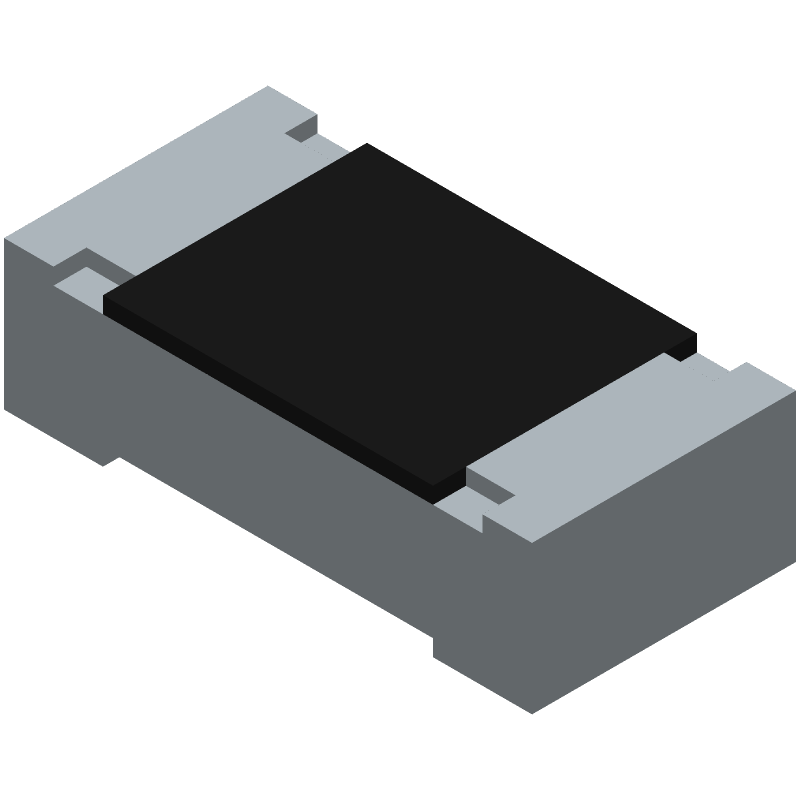

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ERJ3EKF9100V Part Data Attributes

Parametric Data
ERJ3EKF9100V Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ERJ3EKF9100V Panasonic Electronic Components Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 49 Weeks, 1 Day
Samacsys Manufacturer Panasonic
Additional Feature IEC60115-8, PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.6 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PUNCHED, 7 INCH
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 910 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 75 V

Alternate Parts for ERJ3EKF9100V

This table gives cross-reference parts and alternative options found for ERJ3EKF9100V. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ERJ3EKF9100V, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RMCF0603FT910R SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF9100V vs RMCF0603FT910R
RTT039100FTP Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, ERJ3EKF9100V vs RTT039100FTP
CR169100F-13 MERITEK Electronics Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT ERJ3EKF9100V vs CR169100F-13
CRCW0603910RFKTABC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, 0603, ERJ3EKF9100V vs CRCW0603910RFKTABC
CRG0603F910R TE Connectivity Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF9100V vs CRG0603F910R
CRCW0603910RFKEAC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF9100V vs CRCW0603910RFKEAC
CR0603-FX-9100ELF Bourns Inc Check for Price Fixed Resistor, Ruthenium Oxide, 0.1W, 910ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT ERJ3EKF9100V vs CR0603-FX-9100ELF
CR0603-16W-9100FT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF9100V vs CR0603-16W-9100FT
SF06P9100FBP Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 910ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP ERJ3EKF9100V vs SF06P9100FBP
CR-03FL7--910R Viking Tech Corp Check for Price Fixed Resistor, CHIP ERJ3EKF9100V vs CR-03FL7--910R

ERJ3EKF9100V Related Parts

ERJ3EKF9100V Frequently Asked Questions (FAQ)

  • The recommended land pattern for ERJ3EKF9100V is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.

  • During reflow soldering, the ERJ3EKF9100V should be placed on a flat surface to prevent tombstoning. The component should be aligned with the PCB pads and the solder paste should be applied evenly. The recommended reflow profile is 260°C peak temperature with a 3-5°C/s ramp rate.

  • The maximum power rating for ERJ3EKF9100V is 0.25W. It is recommended to derate the power rating based on the operating temperature and other environmental factors to ensure reliable operation.

  • Yes, ERJ3EKF9100V is compatible with lead-free soldering. The component is designed to withstand the higher temperatures required for lead-free soldering and meets the requirements of the RoHS directive.

  • The operating temperature range for ERJ3EKF9100V is -55°C to 125°C. The component is designed to operate within this temperature range, but the performance may vary depending on the specific application and environmental conditions.
