Diodes / Rectifier Diodes / ER3D-TP-HF
Datasheets

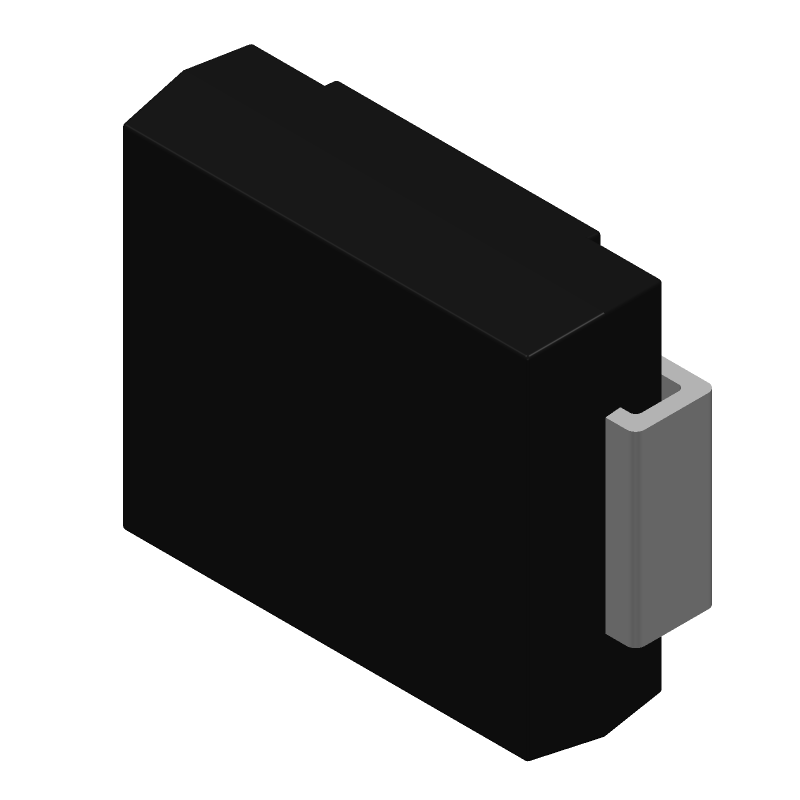

ER3D-TP-HF by: Micro Commercial Components

Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, SMC, 2 PIN

Part Details for ER3D-TP-HF by Micro Commercial Components

Results Overview of ER3D-TP-HF by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Environmental Monitoring Space Technology Industrial Automation Aerospace and Defense Telecommunications Automotive

ER3D-TP-HF Information

ER3D-TP-HF by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for ER3D-TP-HF

Part # Distributor Description Stock Price Buy
DISTI # 833-ER3D-TP-HF
Mouser Electronics Rectifiers 3A SUPER FAST RECOVERY SILICON RECTIFIER RoHS: Compliant 0
  • 1 $0.4400
  • 10 $0.3780
  • 100 $0.2630
  • 500 $0.2050
  • 1,000 $0.1710
  • 3,000 $0.1460
  • 24,000 $0.1430
  • 45,000 $0.1410
$0.1410 / $0.4400 Order Now
Vyrian Diodes 345
RFQ

Part Details for ER3D-TP-HF

ER3D-TP-HF Part Data Attributes

Parametric Data
ER3D-TP-HF Micro Commercial Components
Buy Now Datasheet
Compare Parts:
ER3D-TP-HF Micro Commercial Components Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, SMC, 2 PIN
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description SMC, 2 PIN
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Application EFFICIENCY
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.95 V
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 100 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -50 °C
Output Current-Max 3 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Rep Pk Reverse Voltage-Max 200 V
Reverse Current-Max 5 µA
Reverse Recovery Time-Max 0.035 µs
Surface Mount YES
Terminal Finish TIN
Terminal Form C BEND
Terminal Position DUAL

Alternate Parts for ER3D-TP-HF

This table gives cross-reference parts and alternative options found for ER3D-TP-HF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ER3D-TP-HF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ES3D-13-F Diodes Incorporated $0.1886 Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, GREEN, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ES3D-13-F
ES3D onsemi $0.2291 3.0A Ultra Fast Recovery Rectifier, SMC, 3000-REEL ER3D-TP-HF vs ES3D
ES3DR6 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ES3DR6
Part Number Manufacturer Composite Price Description Compare
ES3D-E3/57T Vishay Intertechnologies $0.2758 Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, ER3D-TP-HF vs ES3D-E3/57T
ES3DR6G Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ES3DR6G
ER3D PanJit Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ER3D
ES3DM6G Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ES3DM6G
ES3D Vishay Intertechnologies Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon ER3D-TP-HF vs ES3D
ES3D-7-F Diodes Incorporated Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ES3D-7-F
ER3D Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ER3D
ES3D Lite-On Semiconductor Corporation Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ES3D
ES3D-E3/9AT Vishay Semiconductors Check for Price DIODE 3 A, 200 V, SILICON, RECTIFIER DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Rectifier Diode ER3D-TP-HF vs ES3D-E3/9AT
ER3D_R2_10001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 3A, 300V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN ER3D-TP-HF vs ER3D_R2_10001
