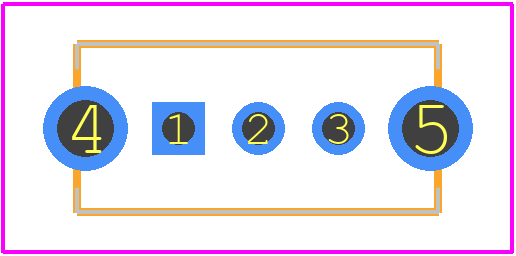

Footprint
-

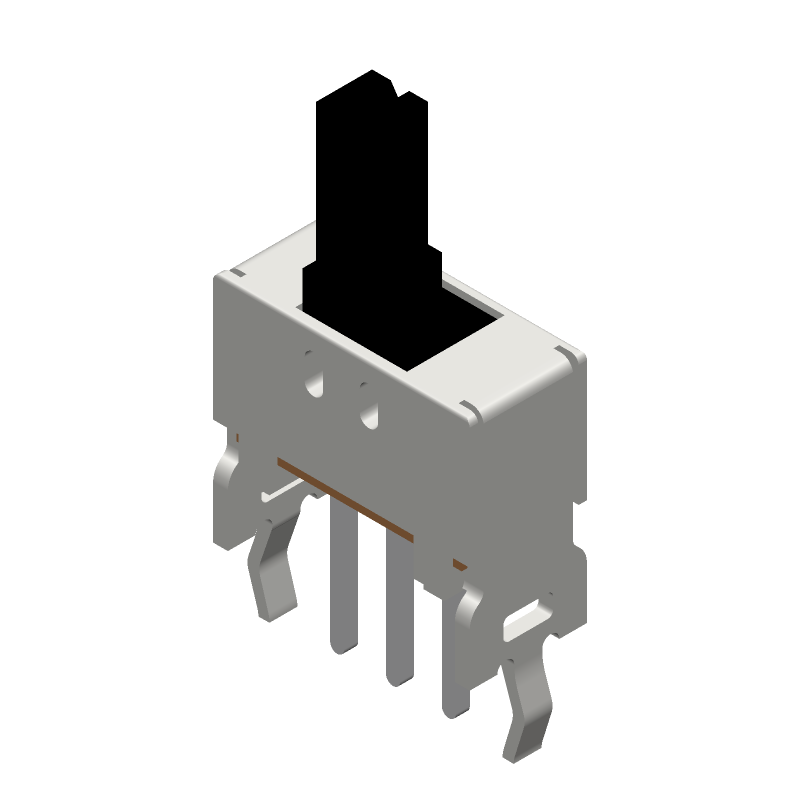

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EG1249 by E-Switch Inc
Results Overview of EG1249 by E-Switch Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Renewable Energy
EG1249 Information
EG1249 by E-Switch Inc is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for EG1249
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N7306
|
Newark | Slide Switch, Spdt, 0.1A, 12Vdc, Tht, Contact Configuration:Spdt, Switch Operation:-, Switch Mounting:Through Hole, Product Range:Eg Series, Contact Current Max:100Ma, Contact Voltage Ac Max:-, Contact Voltage Dc Max:12V Rohs Compliant: Yes |E-Switch EG1249 RoHS: Compliant Min Qty: 3200 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.5970 | Buy Now |
|
DISTI #
EG1249-ND
|
DigiKey | SWITCH SLIDE SPDT 100MA 12V Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
3200 In Stock |
|
$0.4833 / $0.9400 | Buy Now |
|
DISTI #
612-EG1249
|
Mouser Electronics | Slide Switches SPDT 6MM LEVER RoHS: Compliant | 2135 |
|
$0.4830 / $0.9200 | Buy Now |
|
DISTI #
87988917
|
Verical | Switch Slide ON ON SPDT Top Slide 0.1A 12VDC PC Pins Thru-Hole Min Qty: 86 Package Multiple: 1 | Americas - 3190 |
|
$0.5447 / $0.6847 | Buy Now |
|
DISTI #
69080228
|
Verical | Switch Slide ON ON SPDT Top Slide 0.1A 12VDC PC Pins Thru-Hole Min Qty: 100 Package Multiple: 50 Date Code: 1852 | Americas - 350 |
|
$0.6024 / $0.9581 | Buy Now |
|
DISTI #
EG1249
|
TME | Switch: slide, Pos: 2, SPDT, 0.1A/12VDC, ON-ON, THT, -20÷70°C, EG Min Qty: 3200 | 0 |
|
$0.4800 | RFQ |
|
DISTI #
EG1249
|
IBS Electronics | SLIDE SWITCH SPDT ON-ON 100 MA 12V DC TH PC PIN EG SERIES | E-SWITCH EG1249 Min Qty: 50 Package Multiple: 1 | 361 |
|
$0.5885 / $0.9581 | Buy Now |
|
|
Master Electronics | Slide Switch - SPDT - 100mA - 12VDC - Standard Actuator - 6.00mm Actuator Length - PC Pin - Through Hole. RoHS: Compliant |
361 In Stock |
|
$0.4527 / $0.7370 | Buy Now |
Part Details for EG1249
EG1249 CAD Models
EG1249 Part Data Attributes
|
|
EG1249
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
EG1249
E-Switch Inc
Slide Switch, SPDT, Latched, Solder Terminal, Through Hole-straight
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Samacsys Manufacturer | E-Switch | |
| Body Breadth | 4.2 mm | |
| Body Height | 8.5 mm | |
| Body Length or Diameter | 9 mm | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | Silver (Ag) | |
| Termination Type | SOLDER |
