Capacitors / Aluminum Electrolytic Capacitors / EEVFK1H102M
Datasheets
EEVFK1H102M by:

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 6767, CHIP

Part Details for EEVFK1H102M by Panasonic Electronic Components

Results Overview of EEVFK1H102M by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

EEVFK1H102M Information

EEVFK1H102M by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EEVFK1H102M

Part # Distributor Description Stock Price Buy
DISTI # 17AC6858
Newark Cap, Alu Elec, 1000Uf, 50Vdc, Smd Can, Ae Capacitor Case:Radial Can - Smd, Capacitance:1000Μf, Voltage Rating:50V, Esr:-, Product Range:Aec-Q200 Fk Series, Lifetime @ Temperature:5000 Hours @ 105°C, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Panasonic EEVFK1H102M RoHS: Compliant Min Qty: 125 Package Multiple: 1 Date Code: 1 Container: Reel 18746
  • 125 $1.0900
  • 250 $1.0400
  • 500 $1.0000
  • 750 $0.9590
  • 1,250 $0.9050
$0.9050 / $1.0900 Buy Now
DISTI # 85AK4411
Newark Cap, Alu Elec, 1000Uf, 50V, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:1000Μf, Voltage(Dc):50V, Esr:-, Lifetime @ Temperature:2000 Hours @ 105°C, Polarity:Polar, Product Range:Fk Series, Capacitance Tolerance:± 20% Rohs Compliant: Yes |Panasonic EEVFK1H102M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 6719
  • 1 $1.1900
$1.1900 Buy Now
Bristol Electronics   120
RFQ
Quest Components CAP,AL2O3,1MF,50VDC,20-% TOL,20+% TOL 6
  • 1 $2.5000
  • 3 $2.0000
$2.0000 / $2.5000 Buy Now
Quest Components CAP,AL2O3,1MF,50VDC,20-% TOL,20+% TOL (Also Known As: EEV-FK1H102M) 6
  • 1 $2.5000
  • 3 $2.0000
$2.0000 / $2.5000 Buy Now
DISTI # EEVFK1H102M
TME Capacitor: electrolytic, low ESR, SMD, 1000uF, 50VDC, Ø16x16.5mm Min Qty: 1 915
  • 1 $3.1600
  • 5 $2.1500
  • 25 $1.7600
  • 50 $1.5500
  • 125 $1.4400
  • 250 $1.4100
  • 500 $1.3700
  • 1,000 $1.3600
$1.3600 / $3.1600 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 47
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # SMC-EEVFK1H102M
Sensible Micro Corporation Aluminum Electrolytic Capacitor, 1000 Uf, 50 V, ± 20%, 5000 Hours @ 105°C, Radial Can - Smd - Tape And Reel RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days 27
  • 100 $0.6354
  • 500 $0.6191
  • 1,000 $0.5865
$0.5865 / $0.6354 RFQ
DISTI # EEVFK1H102M
Avnet Abacus Aluminum Electrolytic Capacitor 1000 uF 50 V 20 5000 hours 105C Radial Can SMD - Tape and Reel (Alt: EEVFK1H102M) RoHS: Compliant Min Qty: 125 Package Multiple: 125 Lead time: 23 Weeks, 0 Days Container: Reel Abacus - 166750
Buy Now
New Advantage Corporation Cap Alu SMD 1000uF 20% 50V 105C 5000hrs 1610mA 16x16.5 Auto Low ESR RoHS: Compliant Min Qty: 1 Package Multiple: 125 181500
  • 125 $1.6800
  • 181,500 $1.5600
$1.5600 / $1.6800 Buy Now

Part Details for EEVFK1H102M

EEVFK1H102M CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

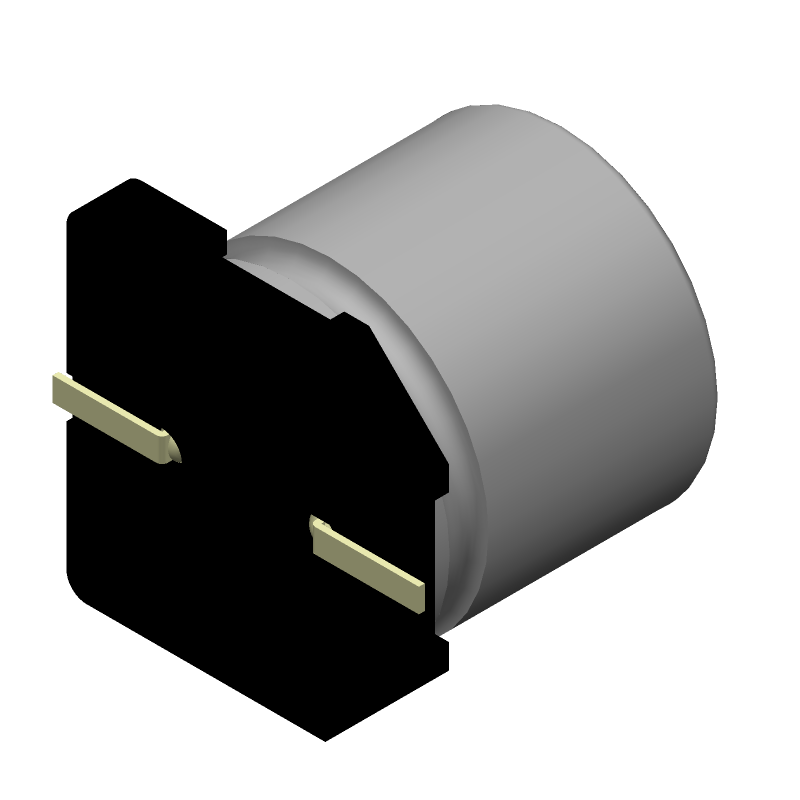

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EEVFK1H102M Part Data Attributes

Parametric Data
EEVFK1H102M Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
EEVFK1H102M Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 6767, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 21 Weeks
Samacsys Manufacturer Panasonic
Capacitance 1000 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 16 mm
Dielectric Material ALUMINUM (WET)
Height 16.5 mm
JESD-609 Code e3
Leakage Current 0.5 mA
Length 17 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 13 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 50 V
Reference Standard AEC-Q200
Ripple Current 1207.5 mA
Size Code 6767
Surface Mount YES
Tan Delta 0.1
Terminal Finish Tin (Sn)
Terminal Shape FLAT
Width 17 mm

EEVFK1H102M Related Parts

EEVFK1H102M Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for EEVFK1H102M is 260°C for 10 seconds or less.

  • Yes, the EEVFK1H102M capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The ESR of the EEVFK1H102M capacitor is approximately 0.015 ohms at 100 kHz.

  • Yes, the EEVFK1H102M capacitor is designed to operate in high-temperature environments, with a maximum operating temperature of 125°C.

  • Yes, the EEVFK1H102M capacitor meets the requirements for automotive applications, including AEC-Q200 qualification.
