Part Details for EEHZA1H100R by Panasonic Electronic Components
Results Overview of EEHZA1H100R by Panasonic Electronic Components
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
EEHZA1H100R Information
EEHZA1H100R by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEHZA1H100R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85AK4373
|
Newark | Cap, Alu Elec, Hybrid, 10Uf, 50V, Smd, Capacitance:10Μf, Capacitance Tolerance:± 20%, Voltage(Dc):50V, Capacitor Case/Package:Radial Can - Smd, Esr:0.12Ohm, Lifetime @ Temperature:10000 Hours @ 105°C, Product Diameter:5Mm Rohs Compliant: Yes |Panasonic EEHZA1H100R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1645 |
|
$0.3580 | Buy Now |
|
DISTI #
83AK4159
|
Newark | Capacitor, 10Uf, 50V, 0.12Ohm, Capacitance:10Μf, Capacitance Tolerance:± 20%, Voltage(Dc):50V, Capacitor Case/Package:Radial Can - Smd, Esr:0.12Ohm, Lifetime @ Temperature:10000 Hours @ 105°C, Product Diameter:5Mm, Product Length:-Rohs Compliant: Yes |Panasonic EEHZA1H100R RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.3710 / $0.4300 | Buy Now |
|
DISTI #
V36:1790_11316834
|
Arrow Electronics | Cap Aluminum Polymer Hybrid 10uF 50VDC 20%( 5 X 5.8mm) SMD 0.12 Ohm 0.75A 10000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Date Code: 2446 | Americas - 3000 |
|
$0.2216 | Buy Now |
|
DISTI #
V72:2272_11316834
|
Arrow Electronics | Cap Aluminum Polymer Hybrid 10uF 50VDC 20%( 5 X 5.8mm) SMD 0.12 Ohm 0.75A 10000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 83 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2412 Container: Cut Strips | Americas - 83 |
|
$0.4253 | Buy Now |
|
DISTI #
87160100
|
Verical | Cap Aluminum Polymer Hybrid 10uF 50VDC 20%( 5 X 5.8mm) SMD 0.12 Ohm 0.75A 10000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2329 | Americas - 2000 |
|
$0.5067 / $0.5659 | Buy Now |
|
DISTI #
88739204
|
Verical | Cap Aluminum Polymer Hybrid 10uF 50VDC 20%( 5 X 5.8mm) SMD 0.12 Ohm 0.75A 10000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 116 Package Multiple: 1 | Americas - 985 |
|
$0.5047 | Buy Now |
|
DISTI #
EEHZA1H100R
|
TME | Capacitor: hybrid, 10uF, 50VDC, ESR: 120mΩ, ZA, SMD, ±20%, -55÷105°C Min Qty: 1 | 91 |
|
$0.3930 / $1.0910 | Buy Now |
|
DISTI #
EEHZA1H100R
|
Avnet Abacus | Hybrid Aluminium Electrolytic Capacitor 10 F 20 50 V Radial Can SMD 012 ohm - Tape and Reel (Alt: EEHZA1H100R) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 4000 |
|
Buy Now | |
|
|
LCSC | 20% 50V 10uF SMDD5xL6.1mm Hybrid Aluminum Electrolytic Capacitors ROHS | 265 |
|
$0.3994 / $0.8737 | Buy Now |
Part Details for EEHZA1H100R

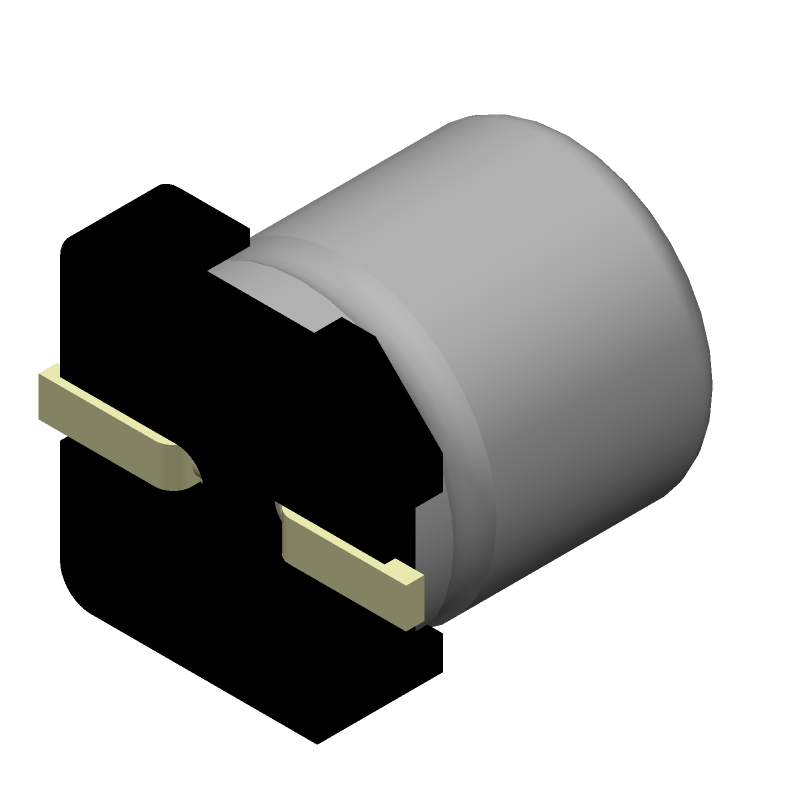

EEHZA1H100R CAD Models
