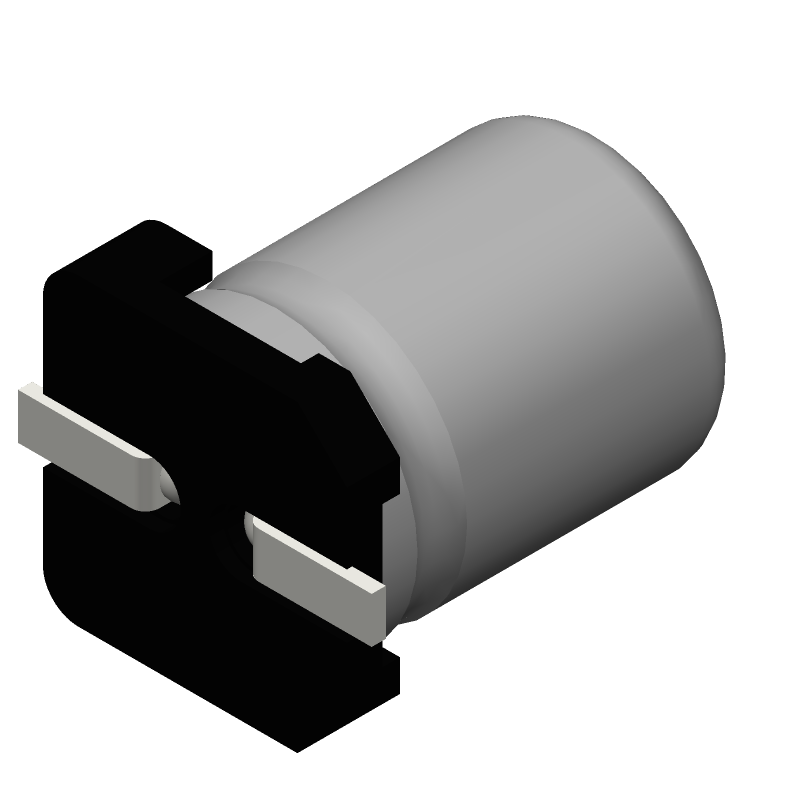

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEE0JA220SR by Panasonic Electronic Components
Results Overview of EEE0JA220SR by Panasonic Electronic Components
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
EEE0JA220SR Information
EEE0JA220SR by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEE0JA220SR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96K9424
|
Newark | Aluminum Electrolytic Capacitor, 22Uf, 6.3V, 20%, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:22Μf, Voltage(Dc):6.3V, Esr:-, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Product Range:S Series, Msl:- Rohs Compliant: Yes |Panasonic EEE0JA220SR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 16 |
|
$0.0150 | Buy Now |
|
DISTI #
70067999
|
RS | 22uF 6.3 V dc Aluminium Electrolytic Capacitor, VS Series 2000h 4 (Dia.) x 5.4mm Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2040 / $0.2430 | RFQ |
|
|
Bristol Electronics | 90 |
|
RFQ | ||
|
|
Quest Components | 2824 |
|
$0.1152 / $0.3840 | Buy Now | |
|
|
Quest Components | 896 |
|
$0.4480 / $1.1200 | Buy Now | |
|
DISTI #
EEE0JA220SR
|
TME | Capacitor: electrolytic, SMD, 22uF, 6.3VDC, Ø4x5.4mm, ±20%, 2000h Min Qty: 1 | 2153 |
|
$0.0710 / $0.3060 | Buy Now |
|
DISTI #
EEE0JA220SR
|
Avnet Abacus | Aluminum Electrolytic Capacitor 22 uF 63 V 20 2000 hours 85C Radial Can SMD - Tape and Reel (Alt: EEE0JA220SR) RoHS: Compliant Min Qty: 4000 Package Multiple: 2000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | Cap Aluminium SMD 22uF 20% 6.3V 85C 2000hrs 29mA 4X6 Auto RoHS: Compliant Min Qty: 1 Package Multiple: 2000 | 4000 |
|
$0.0839 / $0.0906 | Buy Now |
|
|
Vyrian | Capacitors | 6815 |
|
RFQ |
Part Details for EEE0JA220SR
EEE0JA220SR CAD Models
EEE0JA220SR Part Data Attributes
|
|
EEE0JA220SR
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEE0JA220SR
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 1717, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 47 Weeks, 1 Day | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 22 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 4 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| Height | 5.4 mm | |
| JESD-609 Code | e6 | |
| Leakage Current | 0.003 mA | |
| Length | 4.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 15 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 29 mA | |
| Size Code | 1717 | |
| Surface Mount | YES | |
| Tan Delta | 0.26 | |
| Terminal Finish | Tin/Bismuth (Sn/Bi) | |
| Terminal Shape | FLAT | |
| Width | 4.3 mm |
EEE0JA220SR Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the EEE0JA220SR is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the EEE0JA220SR is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
-
The ESR of the EEE0JA220SR is approximately 0.015 ohms at 100 kHz.
-
Yes, the EEE0JA220SR is designed to operate in humid environments and can withstand humidity levels up to 95% RH.
-
The recommended storage temperature for the EEE0JA220SR is between -30°C to 30°C.
