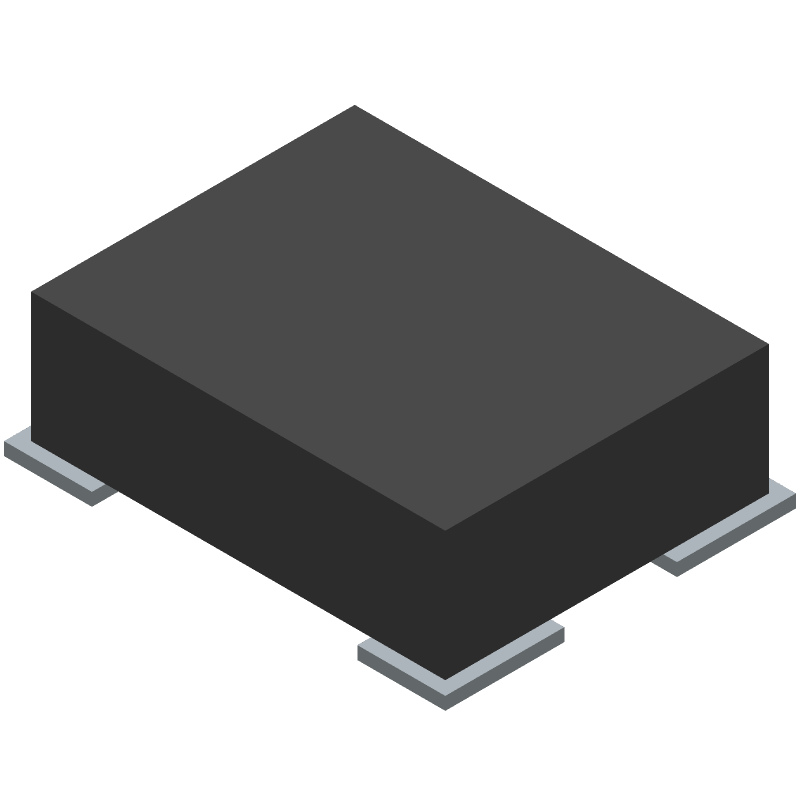

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECS-TXO-3225-100-TR by ECS International Inc
Results Overview of ECS-TXO-3225-100-TR by ECS International Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
ECS-TXO-3225-100-TR Information
ECS-TXO-3225-100-TR by ECS International Inc is a TCXO.
TCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DFE322520F-1R5M=P2 | Murata Manufacturing Co Ltd | Fixed IND 1.5uH 5200mA NONAUTO | |
| DFE322520F-1R0M=P2 | Murata Manufacturing Co Ltd | Fixed IND 1uH 6700mA NONAUTO | |
| DFE322520F-R47M=P2 | Murata Manufacturing Co Ltd | Fixed IND 0.47uH 8500mA NONAUTO |
Price & Stock for ECS-TXO-3225-100-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
XC2056CT-ND
|
DigiKey | XTAL OSC TCXO 10.0000MHZ HCMOS Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
202 In Stock |
|
$1.5823 / $2.6600 | Buy Now |
|
DISTI #
ECS-TXO-3225-100-TR
|
Avnet Americas | TCXO, Oscillator, 10 MHz, 2.5 ppm, SMD, 3.2mm x 2.5mm, HCMOS, 3.3 V, ECS-TXO-3225 - Tape and Reel (Alt: ECS-TXO-3225-100-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$1.3680 / $1.5943 | Buy Now |
|
DISTI #
520-TXO-3225-10.0T
|
Mouser Electronics | TCXO Oscillators 10MHz 3.3V HCMOS 2.5ppm -30C +85C RoHS: Compliant | 631 |
|
$1.5500 / $2.6600 | Buy Now |
|
DISTI #
V72:2272_17703134
|
Arrow Electronics | Oscillator TCXO 10MHz ±1.5ppm (Tol) ±2.5ppm (Stability) 15pF HCMOS 60% 3.3V 4-Pin SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2231 Container: Cut Strips | Americas - 580 |
|
$1.5390 / $1.6960 | Buy Now |
|
|
Onlinecomponents.com | Oscillator TCXO - 10.000MHz - HCMOS - 3.3V - ±2.5ppm -30°C to 85°C - 6mA - SMD - 0.126" x 0.098" (3.20mm x 2.50mm) RoHS: Compliant | 0 |
|
$1.3300 / $1.7900 | Buy Now |
|
DISTI #
ECS-TXO-3225-100-TR
|
Avnet Abacus | TCXO Oscillator 10 MHz 25 ppm SMD 32mm x 25mm HCMOS 33 V ECSTXO3225 - Tape and Reel (Alt: ECS-TXO-3225-100-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for ECS-TXO-3225-100-TR
ECS-TXO-3225-100-TR CAD Models
ECS-TXO-3225-100-TR Part Data Attributes
|
|
ECS-TXO-3225-100-TR
ECS International Inc
Buy Now
Datasheet
|
Compare Parts:
ECS-TXO-3225-100-TR
ECS International Inc
HCMOS Output Clock Oscillator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ECS INC INTERNATIONAL | |
| Package Description | SMD, 4 PIN | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | ECS | |
| Aging | 1 PPM/YEAR | |
| Fall Time-Max | 10 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 2.5% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 10 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Oscillator Type | HCMOS | |
| Output Load | 15 pF | |
| Package Equivalence Code | LCC4,.1X.12,98/61 | |
| Physical Dimension | 3.2mm x 2.5mm x 1mm | |
| Rise Time-Max | 10 ns | |
| Supply Current-Max | 6 mA | |
| Supply Voltage-Max | 3.465 V | |
| Supply Voltage-Min | 3.135 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 40/60 % | |
| Terminal Finish | Gold (Au) |
ECS-TXO-3225-100-TR Frequently Asked Questions (FAQ)
-
The recommended storage condition is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 85°C and humidity below 80%.
-
Yes, ECS-TXO-3225-100-TR is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration.
-
The typical lead time for ECS-TXO-3225-100-TR is 4-6 weeks, but it may vary depending on the quantity and availability.
-
Yes, ECS-TXO-3225-100-TR is RoHS and REACH compliant, meeting the European Union's directives on the restriction of hazardous substances.
-
The operating temperature range for ECS-TXO-3225-100-TR is -40°C to 85°C, with a storage temperature range of -40°C to 100°C.
