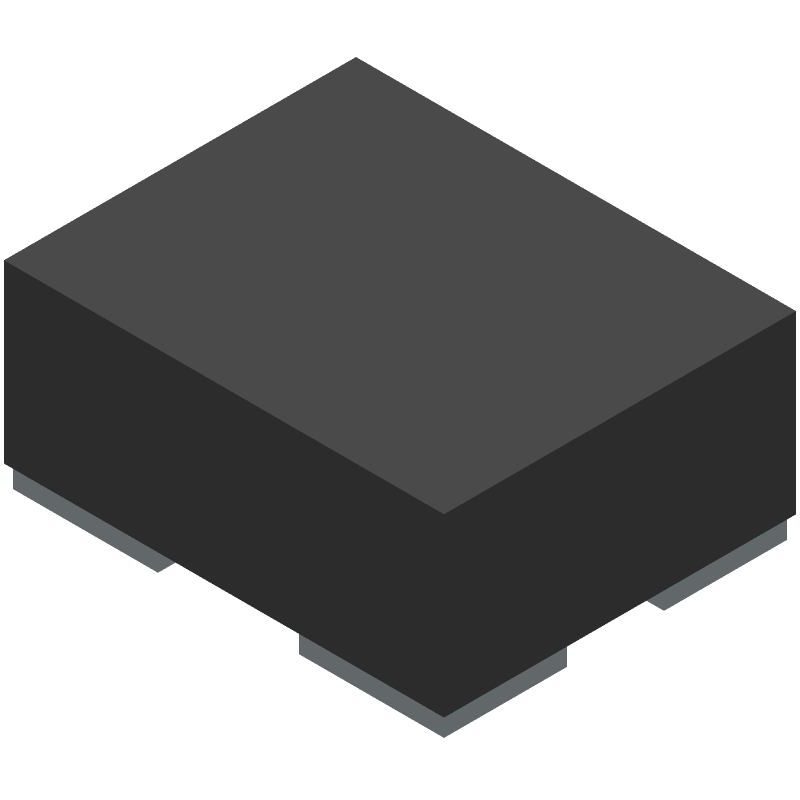

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECS-TXO-20CSMV-320-EY-TR by ECS International Inc
Results Overview of ECS-TXO-20CSMV-320-EY-TR by ECS International Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ECS-TXO-20CSMV-320-EY-TR Information
ECS-TXO-20CSMV-320-EY-TR by ECS International Inc is a TCXO.
TCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for ECS-TXO-20CSMV-320-EY-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AK8437
|
Newark | Tcxo, 32Mhz, Smd, 2Mm X 1.6Mm Rohs Compliant: Yes |Ecs Inc International ECS-TXO-20CSMV-320-EY-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 995 |
|
$1.5400 / $2.0800 | Buy Now |
|
DISTI #
50-ECS-TXO-20CSMV-320-EY-CT-ND
|
DigiKey | XTAL OSC TCXO 32.0000MHZ CLP SNW Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
22843 In Stock |
|
$1.1648 / $2.0000 | Buy Now |
|
DISTI #
ECS-TXO-20CSMV-320-EY-TR
|
Avnet Americas | TCXO, Oscillator, 32 MHz, 2.5 ppm, SMD, 2mm x 1.6mm, Clipped Sinewave, 3.3 V, ECS-TXO-20CSMV - Tape and Reel (Alt: ECS-TXO-20CSMV-320-EY-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$1.0944 / $1.2838 | Buy Now |
|
DISTI #
520-TXO20CSMV320EYTR
|
Mouser Electronics | TCXO Oscillators MultiVolt TCXO,32MHz,+/-2.5ppm,1.7V 3.465V,2.5 mA,-30 C 85 C, 2.00mm x 1.60mm RoHS: Compliant | 3630 |
|
$1.1800 / $2.0000 | Buy Now |
|
DISTI #
V36:1790_24624010
|
Arrow Electronics | Oscillator TCXO 32MHz ±2ppm (Tol) ±2.5ppm (Stability) 10pF Clipped Sinewave 1.8V/2.5V/3.3V 4-Pin CSMD T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Date Code: 2510 | Americas - 1000 |
|
$1.2200 / $1.2600 | Buy Now |
|
|
Onlinecomponents.com | Oscillator TCXO - 32MHz - ±2.5ppm -30°C to 85°C - 1.7V to 3.465V - 2.5 mA - Clipped Sine Wave - 4-SMD - 0.079" x 0.063" (2.00mm x 1.60mm) RoHS: Compliant | 0 |
|
$1.1200 / $1.5600 | Buy Now |
|
DISTI #
ECS-TXO-20CSMV-320-EY-TR
|
Avnet Abacus | TCXO Oscillator 32 MHz 25 ppm SMD 2mm x 16mm Clipped Sinewave 33 V ECSTXO20CSMV - Tape and Reel (Alt: ECS-TXO-20CSMV-320-EY-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Oscillators | 605 |
|
RFQ |
Part Details for ECS-TXO-20CSMV-320-EY-TR
ECS-TXO-20CSMV-320-EY-TR CAD Models
ECS-TXO-20CSMV-320-EY-TR Part Data Attributes
|
|
ECS-TXO-20CSMV-320-EY-TR
ECS International Inc
Buy Now
Datasheet
|
Compare Parts:
ECS-TXO-20CSMV-320-EY-TR
ECS International Inc
Clipped Sine Output Oscillator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ECS INC INTERNATIONAL | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | ECS | |
| Aging | 1 PPM/FIRST YEAR | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 2.5% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 32 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Oscillator Type | CLIPPED SINE | |
| Output Impedance | 10000 Ω | |
| Output Level | 0.8 V | |
| Package Body Material | CERAMIC | |
| Package Equivalence Code | LCC4,.06X.08,63/51 | |
| Physical Dimension | 2mm x 1.6mm x 0.8mm | |
| Supply Current-Max | 2.5 mA | |
| Supply Voltage-Max | 3.465 V | |
| Supply Voltage-Min | 1.7 V | |
| Surface Mount | YES | |
| Terminal Finish | Gold (Au) |
ECS-TXO-20CSMV-320-EY-TR Frequently Asked Questions (FAQ)
-
A symmetrical layout with the oscillator at the center, and a solid ground plane underneath is recommended. Keep the oscillator away from high-frequency signals and ensure a low-impedance path to ground.
-
Ensure the power supply is stable and has a low ripple. Add a 10-100nF capacitor between VCC and GND near the oscillator to filter out noise. Also, ensure the oscillator is not exposed to electrostatic discharge (ESD).
-
The ECS-TXO-20CSMV-320-EY-TR has a frequency deviation of ±20 ppm over the operating temperature range of -40°C to 85°C.
-
Yes, the ECS-TXO-20CSMV-320-EY-TR is designed to withstand vibrations up to 20G. However, ensure proper mounting and secure the oscillator to prevent mechanical stress.
-
Store the oscillator in a dry, cool place (20°C to 30°C, 60% RH max) away from direct sunlight and moisture. Avoid exposing it to extreme temperatures, humidity, or physical stress.
