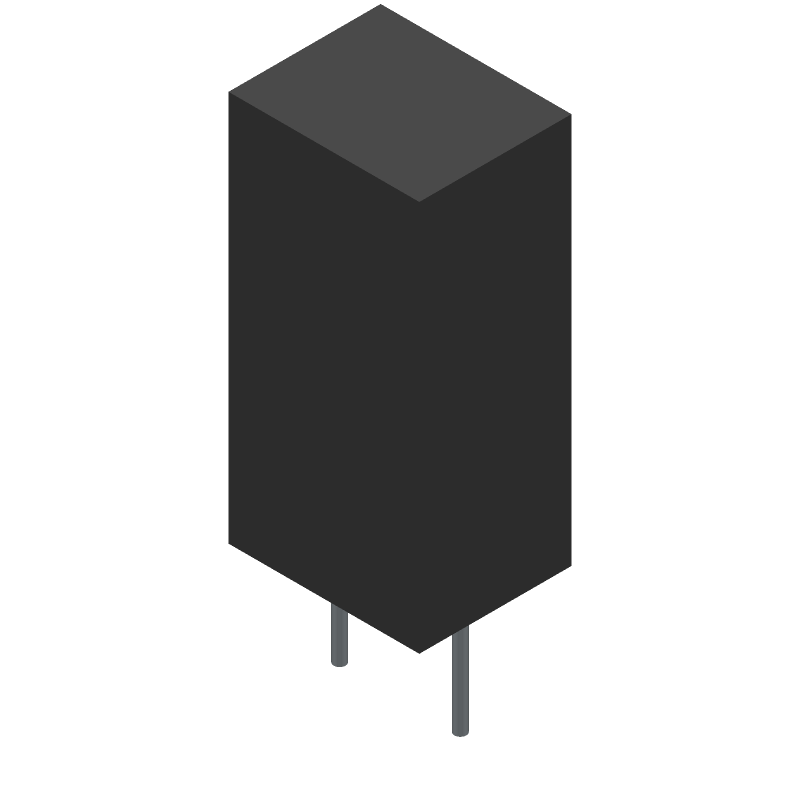

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECQE2154JBB by Panasonic Electronic Components
Results Overview of ECQE2154JBB by Panasonic Electronic Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
ECQE2154JBB Information
ECQE2154JBB by Panasonic Electronic Components is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECQE2154JBB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ECQE2154JBB
|
TME | Capacitor: polyimide, ECQE, 0.15uF, 7.9x6.3x16.2mm, THT, ±5%, 5mm Min Qty: 100 | 0 |
|
$0.2100 | RFQ |
Part Details for ECQE2154JBB
ECQE2154JBB CAD Models
ECQE2154JBB Part Data Attributes
|
|
ECQE2154JBB
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECQE2154JBB
Panasonic Electronic Components
Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 0.15uF, Through Hole Mount, 3125, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 39 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 0.15 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYESTER | |
| Height | 16.2 mm | |
| JESD-609 Code | e3 | |
| Length | 7.9 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 250 V | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE | |
| Width | 6.3 mm |
