Capacitors / Aluminum Electrolytic Capacitors / ECEA1HKS2R2
Datasheets
ECEA1HKS2R2 by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for ECEA1HKS2R2 by Panasonic Electronic Components

Results Overview of ECEA1HKS2R2 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ECEA1HKS2R2 Information

ECEA1HKS2R2 by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for ECEA1HKS2R2

Part # Distributor Description Stock Price Buy
DISTI # 55T0253
Newark Aluminum Electrolytic Capacitor, 2.2Uf, 20%, 50V, Radial, Capacitance:2.2Μf, Voltage(Dc):50V, Capacitance Tolerance:± 20%, Capacitor Terminals:Radial Leaded, Lifetime @ Temperature:1000 Hours @ 85°C, Polarity:Polar, Product Length:- Rohs Compliant: Yes |Panasonic ECEA1HKS2R2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 136
  • 1 $0.0130
  • 10 $0.0130
  • 25 $0.0130
  • 50 $0.0130
  • 100 $0.0130
  • 500 $0.0130
  • 1,000 $0.0130
$0.0130 Buy Now
DISTI # 70067890
RS Capacitor, Aluminum Electrolytic, Cap 2.2uF, Vol-Rtg 50V, Radial, Ks, Height 5mm Min Qty: 1000 Package Multiple: 1 Container: Bulk 0
  • 1,000 $0.1070
$0.1070 RFQ
DISTI # ECEA1HKS2R2
TME Capacitor: electrolytic, THT, 2.2uF, 50VDC, Ø4x5mm, Pitch: 1.5mm Min Qty: 6000 0
  • 6,000 $0.0680
$0.0680 RFQ
DISTI # ECEA1HKS2R2
Avnet Abacus Aluminum Electrolytic Capacitor 22 uF 50 V 20 1000 hours 85C Radial Leaded (Alt: ECEA1HKS2R2) RoHS: Compliant Min Qty: 6000 Package Multiple: 200 Lead time: 17 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for ECEA1HKS2R2

ECEA1HKS2R2 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

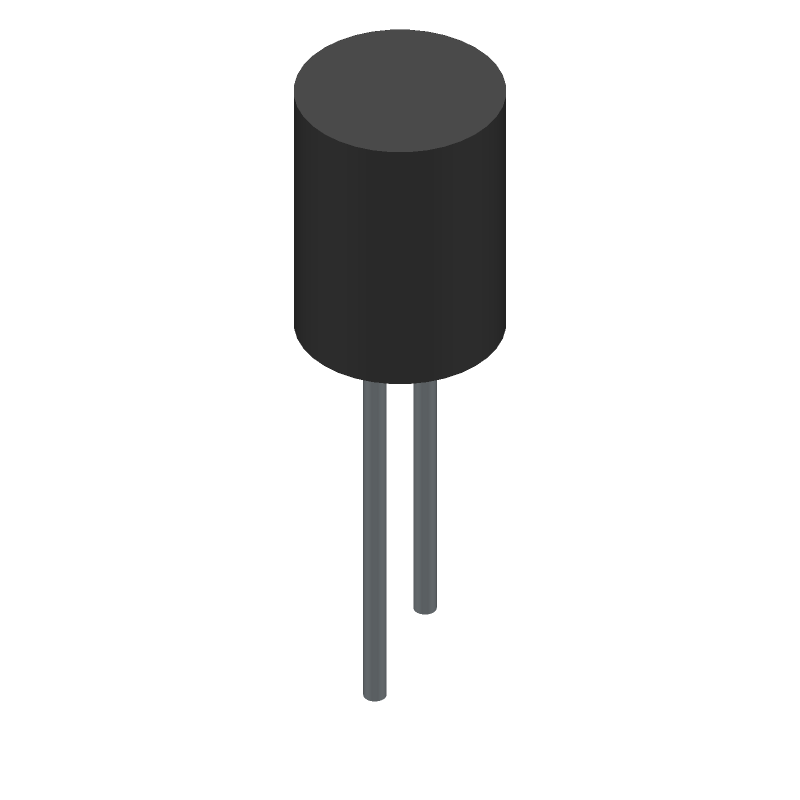

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ECEA1HKS2R2 Part Data Attributes

Parametric Data
ECEA1HKS2R2 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ECEA1HKS2R2 Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description RADIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 28 Weeks, 1 Day
Samacsys Manufacturer Panasonic
Capacitance 2.2 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 4 mm
Dielectric Material ALUMINUM (WET)
JESD-609 Code e3
Leakage Current 0.003 mA
Length 5 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method BULK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 50 V
Ripple Current 16 mA
Surface Mount NO
Tan Delta 0.1
Terminal Finish Tin (Sn)
Terminal Pitch 1.5 mm
Terminal Shape WIRE

Alternate Parts for ECEA1HKS2R2

This table gives cross-reference parts and alternative options found for ECEA1HKS2R2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECEA1HKS2R2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
12R2LFM0405MVN28FM Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 12R2LFM0405MVN28FM
12R2LFM0405MVN38EM Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 12R2LFM0405MVN38EM
UMW1H2R2MDD1CV Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 2.2uF, ECEA1HKS2R2 vs UMW1H2R2MDD1CV
12R2LFM0405MVN38FC Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 12R2LFM0405MVN38FC
82R2LFM0405MVN78EM Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 82R2LFM0405MVN78EM
12R2LFM0405MVN48EC Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 12R2LFM0405MVN48EC
12R2LFM0405MVN78E0 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 12R2LFM0405MVN78E0
22R2LFM0405MVN78ED Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 22R2LFM0405MVN78ED
82R2LFM0405MVN38EF Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 82R2LFM0405MVN38EF
82R2LFM0405MVN781F Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2UF,50VDC,20% -TOL,20% +TOL ECEA1HKS2R2 vs 82R2LFM0405MVN781F
