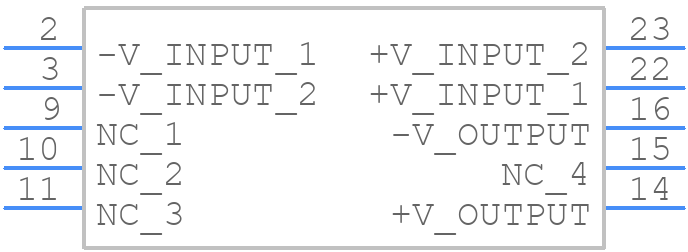

Part Symbol
-
Footprint
-

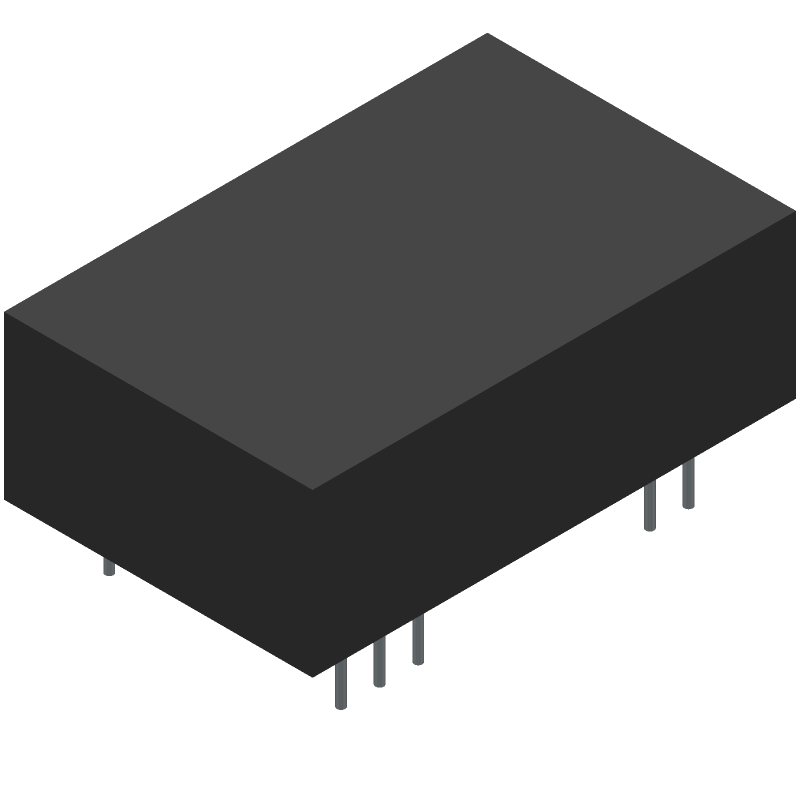

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EC3AW11HMS by Cincon Electronics Corporation
Results Overview of EC3AW11HMS by Cincon Electronics Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
EC3AW11HMS Information
EC3AW11HMS by Cincon Electronics Corporation is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for EC3AW11HMS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2034-EC3AW11HMS-ND
|
DigiKey | LOW POWER DC-DC I/P:18-72VDC O/P Min Qty: 1 Lead time: 10 Weeks Container: Tube | Temporarily Out of Stock |
|
$17.2200 | Buy Now |
|
DISTI #
418-EC3AW11HMS
|
Mouser Electronics | Isolated DC/DC Converters - SMD DC-DC Converter, 3 Watt, 4:1 Input Range, 18-72VDC Input, 5VDC Output, 1.5KVDC min. Isolation, Black Coated Copper with Non-Conductive Base, SMD, 1.25x0.80x.45" RoHS: Compliant | 0 |
|
$14.6300 / $16.8000 | Order Now |
|
|
Onlinecomponents.com | Isolated DC/DC Converter - 3W - 18-72 VDC Input - 5 VDC Output - 600mA - 1.5 kVDC Isolation - Encapsulated - 24 Pin Copper SMD Package RoHS: Compliant | 0 |
|
$12.7100 / $14.0700 | Buy Now |
|
DISTI #
EC3AW11HMS
|
TME | Converter: DC/DC Min Qty: 1 | 0 |
|
$13.0100 / $16.5200 | RFQ |
|
DISTI #
000000000005584636
|
Sager | Isolated DC/DC Converters - SMD DC-DC Converter, 3 Watt, 4:1 Input Range, 18-72VDC Input, 5VDC Output, 1.5KVDC min. Isolation, Black Coated Copper with Non-Conductive Base, SMD, 1.25x0.80x.45 Min Qty: 1 | 0 |
|
$12.7100 / $14.2100 | Buy Now |
|
|
Braemac Americas-Symmetry | LOW POWER DC-DC I/P:18-72VDC O/P:5V/600mA Min Qty: 1 | 0 |
|
$16.7600 | Buy Now |
Part Details for EC3AW11HMS
EC3AW11HMS CAD Models
EC3AW11HMS Part Data Attributes
|
|
EC3AW11HMS
Cincon Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
EC3AW11HMS
Cincon Electronics Corporation
Analog Circuit,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CINCON ELECTRONICS CO LTD | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Cincon | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, EN, IEC, UL | |
| Efficiency (Main Output) | 72% | |
| Input Voltage-Max | 72 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-PDMA-G10 | |
| Length | 31.8 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 95 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 0.6 A | |
| Output Voltage-Max | 5.1 V | |
| Output Voltage-Min | 4.9 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.03535 Vrms | |
| Seated Height-Max | 11.9 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 20.3 mm |
