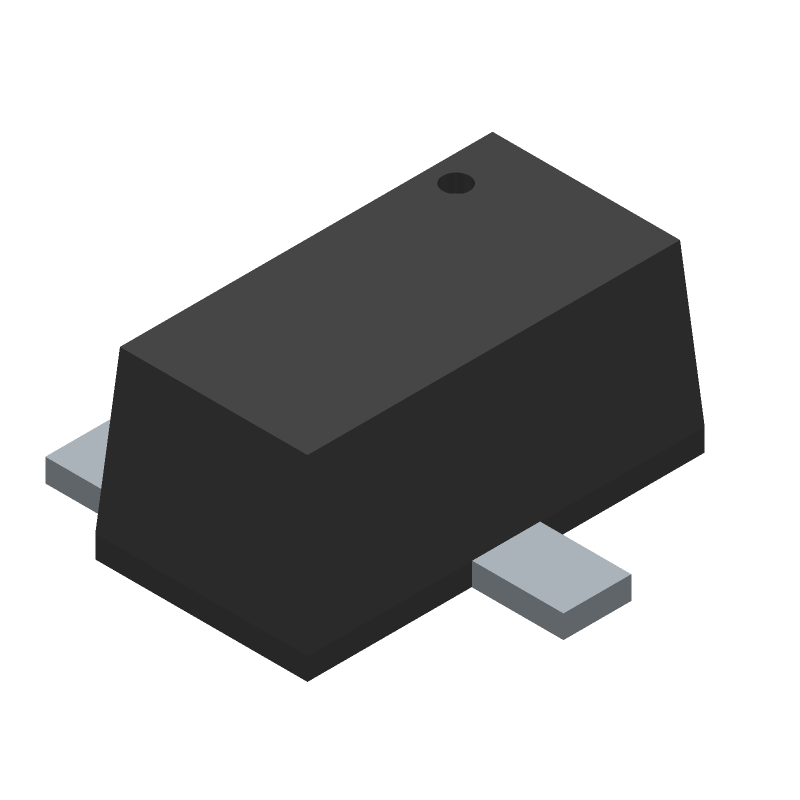

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DSA9001R0L by Panasonic Electronic Components
Results Overview of DSA9001R0L by Panasonic Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DSA9001R0L Information
DSA9001R0L by Panasonic Electronic Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Part Details for DSA9001R0L
DSA9001R0L CAD Models
DSA9001R0L Part Data Attributes
|
|
DSA9001R0L
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
DSA9001R0L
Panasonic Electronic Components
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SSMINI3-F3-B, SC-89, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, SSMINI3-F3-B, SC-89, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Panasonic | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 210 | |
| JESD-30 Code | R-PDSO-F3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | NPN | |
| Surface Mount | YES | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 150 MHz |
Alternate Parts for DSA9001R0L
This table gives cross-reference parts and alternative options found for DSA9001R0L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DSA9001R0L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2SD2216R | Panasonic Electronic Components | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SSMINI3-G1, SC-75, 3 PIN | DSA9001R0L vs 2SD2216R |
| DSC9001-R | Panasonic Electronic Components | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, SSMINI3-F3-B, 3 PIN | DSA9001R0L vs DSC9001-R |
| DSA5001R0L | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SMINI3-F2-B, SC-85, 3 PIN | DSA9001R0L vs DSA5001R0L |
| DSC2001R0L | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AA, HALOGEN FREE AND ROHS COMPLIANT, MINI3-G3-B, SC-59A, 3 PIN | DSA9001R0L vs DSC2001R0L |
| DSA9001R0L | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SSMINI3-F3-B, SC-89, 3 PIN | DSA9001R0L vs DSA9001R0L |
| DSC9001R0L | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SSMINI3-F3-B, SC-89, 3 PIN | DSA9001R0L vs DSC9001R0L |
| DSA2001R0L | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AA, HALOGEN FREE AND ROHS COMPLIANT, MINI3-G3-B, SC-59A, 3 PIN | DSA9001R0L vs DSA2001R0L |
| DSC5001-R | Panasonic Electronic Components | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, SMINI3-F2-B, 3 PIN | DSA9001R0L vs DSC5001-R |
| DSC4001R | Panasonic Electronic Components | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, NS-B1-B-B, 3 PIN | DSA9001R0L vs DSC4001R |
| 2SD0601AR | Panasonic Electronic Components | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-236, ROHS COMPLIANT, MINI3-G1, 3 PIN | DSA9001R0L vs 2SD0601AR |
DSA9001R0L Frequently Asked Questions (FAQ)
-
Panasonic recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output stages. Additionally, keep the input and output traces as short as possible and avoid routing them near each other to minimize noise coupling.
-
Ensure good thermal design and heat dissipation by providing a heat sink or thermal pad, and keeping the device away from heat sources. Also, consider the thermal resistance of the PCB and the ambient temperature to ensure the device operates within its specified temperature range of -40°C to 125°C.
-
Panasonic recommends using 10uF to 22uF ceramic capacitors for input and output decoupling, and 100nF to 1uF ceramic capacitors for bypassing. The exact values may vary depending on the specific application and operating frequency.
-
To prevent damage or malfunction, ensure that the input voltage (VIN) is applied before the enable signal (EN). During power-down, ensure that the enable signal is turned off before the input voltage is removed. A soft-start circuit can also be used to control the power-up sequence.
-
The maximum allowed voltage drop across the input pins (VIN to GND) is 5.5V, and across the output pins (VOUT to GND) is 3.3V. Exceeding these voltage drops may cause the device to malfunction or fail.
