Part Details for DS2406P+ by Analog Devices Inc
Results Overview of DS2406P+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Smart Cities
DS2406P+ Information
DS2406P+ by Analog Devices Inc is an OTP ROM.
OTP ROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for DS2406P+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS2406P
|
Mouser Electronics | Interface - Specialized Dual Addressable Switch Plus 1Kb Memory RoHS: Compliant | 343 |
|
$5.1200 / $8.5900 | Buy Now |
|
|
Analog Devices Inc | Dual Addressable Switch Plus 1 Package Multiple: 1 | 12182 |
|
$3.7300 / $8.5900 | Buy Now |
|
DISTI #
DS2406P+
|
TME | IC: analog switch, SPDT, Ch: 2, TSOC6 Min Qty: 1 | 0 |
|
$4.3400 / $5.9000 | RFQ |
Part Details for DS2406P+
DS2406P+ CAD Models
DS2406P+ Part Data Attributes
|
|
DS2406P+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS2406P+
Analog Devices Inc

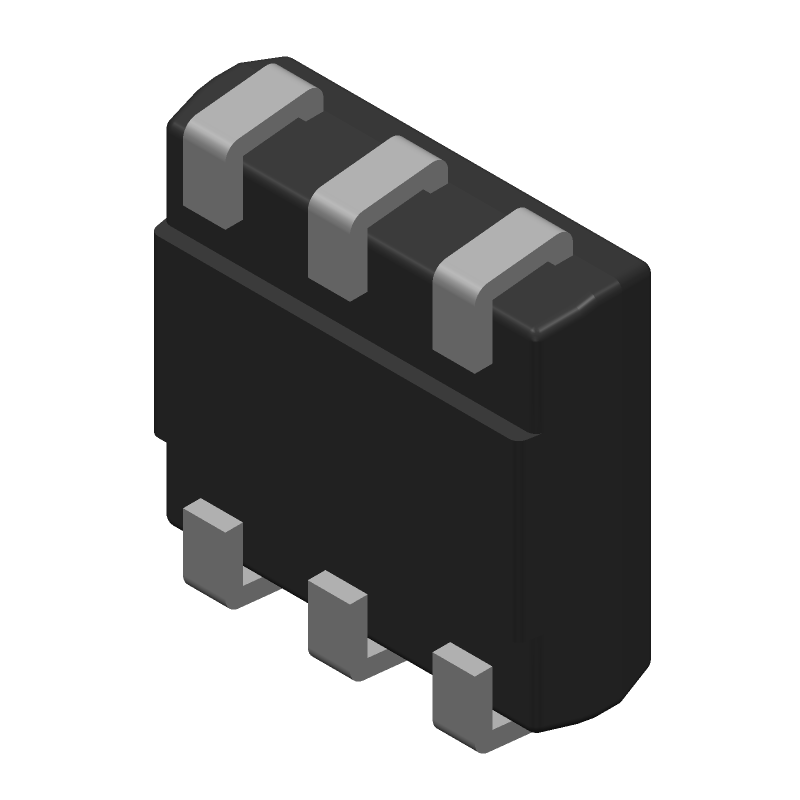

Dual Addressable Switch Plus 1Kb Memory, 6-PLCC-N/A, 6 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 6-PLCC-N/A | |
| Package Description | LEAD FREE, TSOC-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 6-PLCC-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1999-11-26 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | R-PDSO-C6 | |
| JESD-609 Code | e3 | |
| Length | 3.94 mm | |
| Memory Density | 1024 bit | |
| Memory IC Type | OTP ROM | |
| Memory Width | 1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Number of Words | 1024 words | |
| Number of Words Code | 1000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1KX1 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOC | |
| Package Equivalence Code | SOC6,.17 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.5 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2.8 V | |
| Supply Voltage-Nom (Vsup) | 4 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.76 mm |
