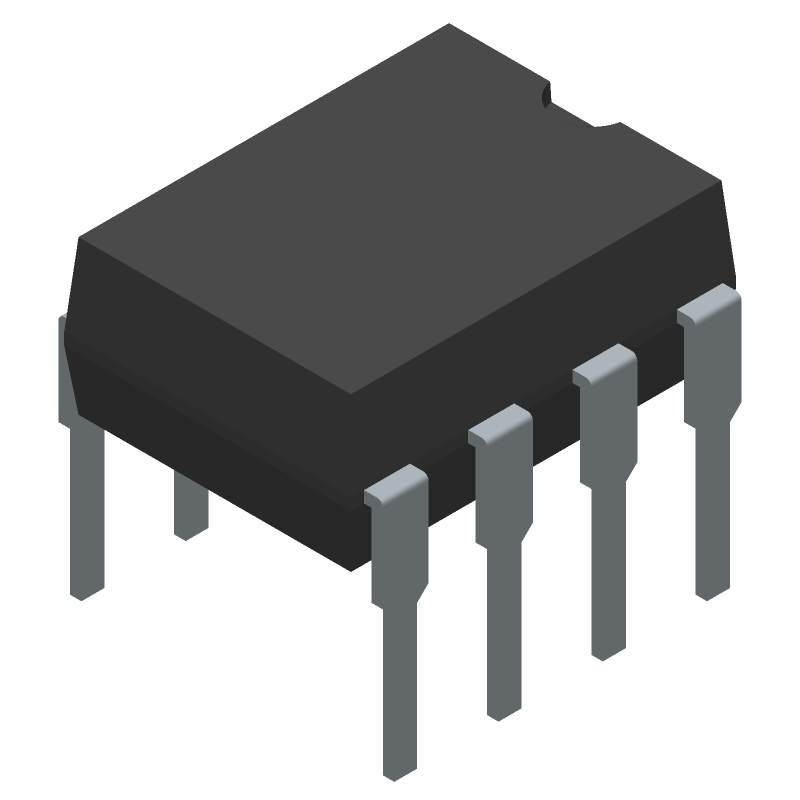

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS1620+ by Analog Devices Inc
Results Overview of DS1620+ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Industrial Automation
Robotics and Drones
DS1620+ Information
DS1620+ by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for DS1620+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y4781
|
Newark | Temp Sensor, Voltage, Dip-8, Sensor Output Type:Digital, Accuracy:± 0.5°C, Sensor Case/Package:Dip, No. Of Pins:8Pins, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, No. Of Channels:-, Resolution:12 Bits, Output Interface:3 Wirerohs Compliant: Yes |Analog Devices DS1620+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 157 |
|
$9.5100 / $13.0900 | Buy Now |
|
DISTI #
700-DS1620
|
Mouser Electronics | Thermostats Digital Thermometer and Thermostat RoHS: Compliant | 375 |
|
$9.5100 / $13.0900 | Buy Now |
|
|
Analog Devices Inc | Digital Thermometer and Thermo Package Multiple: 1 | 4115 |
|
$9.2749 / $13.0900 | Buy Now |
|
DISTI #
DS1620+
|
TME | IC: temperature sensor, digital thermometer,thermostat, DIP8 Min Qty: 1 | 0 |
|
$9.9100 / $13.6400 | RFQ |
Part Details for DS1620+
DS1620+ CAD Models
DS1620+ Part Data Attributes
|
|
DS1620+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS1620+
Analog Devices Inc
Digital Thermometer and Thermostat, 8-PDIP-300_MIL, 8 Pins, -55 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-PDIP-300_MIL | |
| Package Description | 0.300 INCH, LEAD FREE, DIP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-PDIP-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1999-07-20 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | COMPLIANCE TO MIL-300 | |
| Body Breadth | 7.62 mm | |
| Body Height | 4.318 mm | |
| Body Length or Diameter | 13.97 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Bits | 9 | |
| Number of Terminals | 8 | |
| Operating Current-Max | 1 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 3-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
