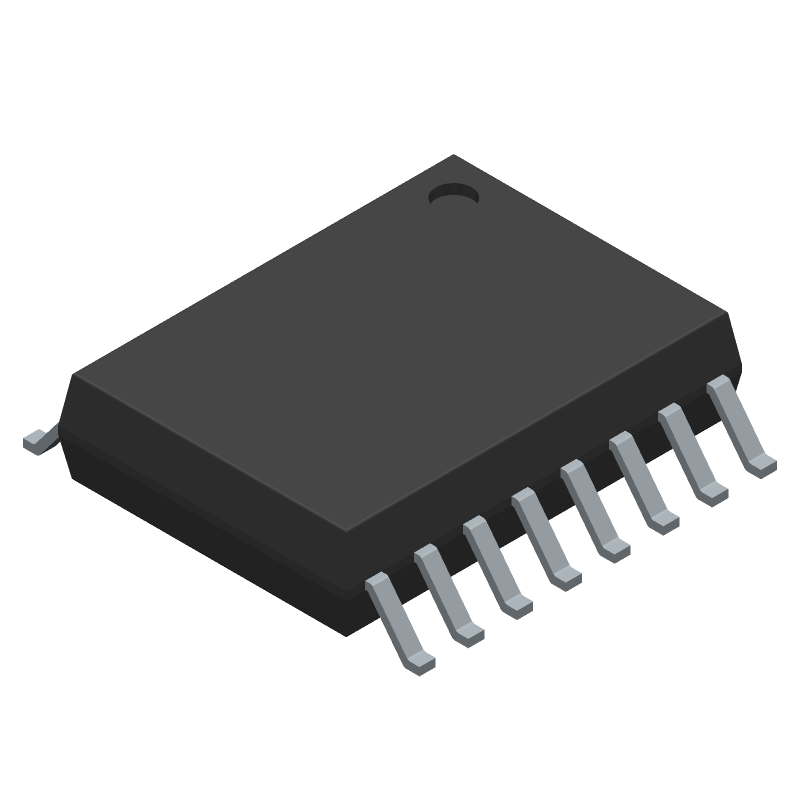

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS1023S-500+ by Analog Devices Inc
Results Overview of DS1023S-500+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
DS1023S-500+ Information
DS1023S-500+ by Analog Devices Inc is a Delay Line.
Delay Lines are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for DS1023S-500+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y1006
|
Newark | Delay Line, 256, 5.25V, 1.275Us, Wsoic16, No. Of Taps:256, Delay Time Per Tap:5Ns, Total Delay Time:1.275Μs, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Digital Ic Case:Wsoic, No. Of Pins:16Pins, Operating Temperature Min:0°Crohs Compliant: Yes |Analog Devices DS1023S-500+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 97 |
|
$15.4000 / $24.0000 | Buy Now |
|
DISTI #
700-DS1023S-500
|
Mouser Electronics | Delay Lines / Timing Elements 8-Bit Programmable Timing Element RoHS: Compliant | 128 |
|
$15.1800 / $24.0600 | Buy Now |
|
|
Analog Devices Inc | 8-Bit Programmable Timing Elem Package Multiple: 1 | 25008 |
|
$11.5600 / $24.0800 | Buy Now |
Part Details for DS1023S-500+
DS1023S-500+ CAD Models
DS1023S-500+ Part Data Attributes
|
|
DS1023S-500+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS1023S-500+
Analog Devices Inc
8-Bit Programmable Timing Element, 16-SOIC_W-300_MIL, 16 Pins, 0 to 70C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-SOIC_W-300_MIL | |
| Package Description | 0.300 INCH, SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-SOIC_W-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2000-02-23 | |
| Samacsys Manufacturer | Analog Devices | |
| Family | CMOS/TTL | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Logic IC Type | SILICON DELAY LINE | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Taps/Steps | 255 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 60 mA | |
| Programmable Delay Line | YES | |
| Prop. Delay@Nom-Sup | 1292 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Delay-Nom (td) | 1038 ns | |
| Width | 7.5 mm |
Alternate Parts for DS1023S-500+
This table gives cross-reference parts and alternative options found for DS1023S-500+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS1023S-500+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS1023S-500+ | Maxim Integrated Products | $9.8777 | Silicon Delay Line, Programmable, 1-Func, 255-Tap, True Output, CMOS, PDSO16, 0.300 INCH, SOIC-16 | DS1023S-500+ vs DS1023S-500+ |
| DS1023S-500+T&R | Analog Devices Inc | Check for Price | 8-Bit Programmable Timing Element, 16-SOIC_W-300_MIL, 16 Pins, 0 to 70C | DS1023S-500+ vs DS1023S-500+T&R |
DS1023S-500+ Frequently Asked Questions (FAQ)
-
A good PCB layout for the DS1023S-500+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
The DS1023S-500+ requires a single 5V power supply. A 0.1uF decoupling capacitor should be placed as close as possible to the device, and a 10uF bulk capacitor should be placed near the power supply. The power supply should be able to provide a minimum of 100mA of current.
-
The maximum clock frequency for the DS1023S-500+ is 500MHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
-
The DS1023S-500+ has a parallel interface that can be connected to a microcontroller or FPGA. The interface consists of 10-bit data output, a clock output, and a data ready output. The microcontroller or FPGA should be configured to read the data output on the rising edge of the clock output, and to wait for the data ready output to go high before reading the data.
-
The typical power consumption of the DS1023S-500+ is 250mW, assuming a 5V power supply and a 500MHz clock frequency. However, the actual power consumption may vary depending on the specific application and operating conditions.
