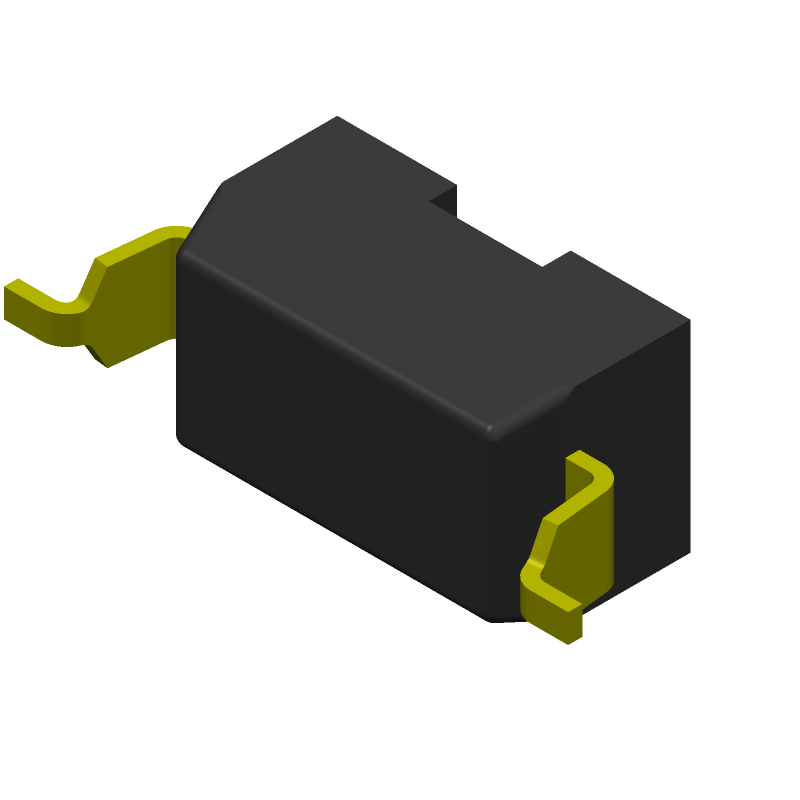

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS04-254-2-01BK-SMT by Same Sky
Results Overview of DS04-254-2-01BK-SMT by Same Sky
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
DS04-254-2-01BK-SMT Information
DS04-254-2-01BK-SMT by Same Sky is a DIP Switch.
DIP Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for DS04-254-2-01BK-SMT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2223-DS04-254-2-01BK-SMT-ND
|
DigiKey | SWITCH SLIDE DIP SPST 0.025A 24V Min Qty: 1 Lead time: 15 Weeks Container: Tube |
2285 In Stock |
|
$0.3688 / $0.7100 | Buy Now |
|
DISTI #
490-DS04254201BK-SMT
|
Mouser Electronics | DIP Switches / SIP Switches DIP Switch, SPST, 2.54 pitch, flat actuator, SMT, 1 position, Black | 1634 |
|
$0.3640 / $0.7000 | Buy Now |
|
DISTI #
V36:1790_24080594
|
Arrow Electronics | Switch DIP OFF ON SPST 1 Flat Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube RoHS: Compliant Min Qty: 120 Package Multiple: 120 Lead time: 15 Weeks Date Code: 2438 | Americas - 1440 |
|
$0.3364 / $0.4485 | Buy Now |
|
DISTI #
V99:2348_24080594
|
Arrow Electronics | Switch DIP OFF ON SPST 1 Flat Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2314 | Americas - 18 |
|
$0.3107 / $0.4712 | Buy Now |
|
|
Onlinecomponents.com | DIP Switch - 1 Position - Surface Mount - 2.54 mm Pitch - Flat Slide Actuator - Flat Bottom - SMT Pin RoHS: Compliant |
2973 In Stock |
|
$0.3544 / $0.4716 | Buy Now |
|
DISTI #
86309552
|
Verical | Switch DIP OFF ON SPST 1 Flat Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube RoHS: Compliant Min Qty: 120 Package Multiple: 120 Date Code: 2438 | Americas - 1440 |
|
$0.3364 / $0.4485 | Buy Now |
|
DISTI #
88107107
|
Verical | Switch DIP OFF ON SPST 1 Flat Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube RoHS: Compliant Min Qty: 88 Package Multiple: 1 | Americas - 1189 |
|
$0.3362 / $0.4520 | Buy Now |
|
DISTI #
DS04254201BKSMT
|
TME | Switch: DIP-SWITCH, Poles number: 1, OFF-ON, 0.025A/24VDC, Pos: 2 Min Qty: 1 | 0 |
|
$0.3430 / $0.5710 | RFQ |
|
DISTI #
DS04-254-2-01BK-SMT
|
Chip One Stop | Electromechanicals RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Tube | 1189 |
|
$0.3030 / $0.4520 | Buy Now |
|
|
Master Electronics | DIP Switch - 1 Position - Surface Mount - 2.54 mm Pitch - Flat Slide Actuator - Flat Bottom - SMT Pin RoHS: Compliant |
2973 In Stock |
|
$0.3544 / $0.4716 | Buy Now |
Part Details for DS04-254-2-01BK-SMT
DS04-254-2-01BK-SMT CAD Models
DS04-254-2-01BK-SMT Part Data Attributes
|
|
DS04-254-2-01BK-SMT
Same Sky
Buy Now
Datasheet
|
Compare Parts:
DS04-254-2-01BK-SMT
Same Sky
1 Pole, Flat Actuator, Flat Bottom, SMT Pin, DIP Switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | CUI DEVICES | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | Same Sky | |
| Actuator Angle | ||
| Actuator Color | WHITE | |
| Actuator Material | POLYBUTYLENE TEREPHTHALATE | |
| Actuator Type | PIANO TYPE | |
| Body Breadth | 6.2 mm | |
| Body Color | BLACK | |
| Body Height | 4.25 mm | |
| Body Length or Diameter | 3.54 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD | |
| Contact Current(DC)-Max | 0.025 A | |
| Contact (DC) Max Rating R Load | 0.025A@24VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 24 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 2000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Switch Sections | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TUBE | |
| Solderability | HAND/REFLOW | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPST | |
| Switch Type | SLIDE DIP SWITCH | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
DS04-254-2-01BK-SMT Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for DS04-254-2-01BK-SMT is 260°C (500°F) for 3 seconds or less.
-
Yes, the DS04-254-2-01BK-SMT is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The operating temperature range for DS04-254-2-01BK-SMT is -40°C to 85°C (-40°F to 185°F).
-
While the DS04-254-2-01BK-SMT is designed to be rugged, it's still important to consider the specific vibration requirements of your application. Consult with a CUI Devices representative for guidance.
-
The typical lead time for DS04-254-2-01BK-SMT varies depending on the quantity and availability. Consult with a CUI Devices representative or authorized distributor for the most up-to-date information.
