DS01-254-L-01BE by:

1 Pole, Raised Actuator, Flat Bottom, Long Pin, DIP Switch

Part Details for DS01-254-L-01BE by Same Sky

Results Overview of DS01-254-L-01BE by Same Sky

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

DS01-254-L-01BE Information

DS01-254-L-01BE by Same Sky is a DIP Switch.
DIP Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for DS01-254-L-01BE

Part # Distributor Description Stock Price Buy
DISTI # 2223-DS01-254-L-01BE-ND
DigiKey SWITCH SLIDE DIP SPST 0.025A 24V Min Qty: 1 Lead time: 15 Weeks Container: Tube 11270
In Stock
  • 1 $0.4200
  • 10 $0.3600
  • 25 $0.3364
  • 100 $0.3011
  • 250 $0.2790
  • 500 $0.2633
  • 1,920 $0.2360
  • 3,840 $0.2238
  • 5,760 $0.2172
$0.2172 / $0.4200 Buy Now
DISTI # 490-DS01-254-L-01BE
Mouser Electronics DIP Switches / SIP Switches DIP Switch, SPST, 2.54 pitch, raised actuator, flat bottom, long pin, 1 position, Blue 22998
  • 1 $0.3900
  • 10 $0.3260
  • 100 $0.2770
  • 500 $0.2690
  • 1,000 $0.2590
  • 1,920 $0.2280
  • 11,520 $0.2200
  • 26,880 $0.2180
$0.2180 / $0.3900 Buy Now
DISTI # V36:1790_24080550
Arrow Electronics Switch DIP OFF ON SPST 1 Raised Slide 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube RoHS: Compliant Min Qty: 1920 Package Multiple: 1920 Lead time: 15 Weeks Date Code: 2151 Americas - 3941
  • 1,920 $0.2092
  • 3,840 $0.2090
  • 5,760 $0.1985
$0.1985 / $0.2092 Buy Now
DISTI # V99:2348_24080550
Arrow Electronics Switch DIP OFF ON SPST 1 Raised Slide 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2418 Americas - 629
  • 1 $0.3638
  • 10 $0.3099
  • 25 $0.3086
  • 100 $0.2672
  • 250 $0.2582
  • 500 $0.2432
  • 1,920 $0.2107
  • 3,840 $0.2034
  • 5,760 $0.1930
$0.1930 / $0.3638 Buy Now
Onlinecomponents.com DIP Switch - 1 Position - Through Hole - 2.54 mm Pitch - Raised Slide Actuator - Flat Bottom - Long Pin RoHS: Compliant 2014 In Stock
  • 100 $0.2692
  • 1,920 $0.2029
  • 3,840 $0.1999
  • 5,760 $0.1969
  • 7,680 $0.1918
  • 11,520 $0.1836
  • 26,880 $0.1711
  • 51,840 $0.1685
$0.1685 / $0.2692 Buy Now
DISTI # 61132976
Verical Switch DIP OFF ON SPST 1 Raised Slide 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube RoHS: Compliant Min Qty: 1920 Package Multiple: 1920 Date Code: 2151 Americas - 3840
  • 1,920 $0.2092
  • 3,840 $0.2090
  • 5,760 $0.1985
$0.1985 / $0.2092 Buy Now
DISTI # DS01254L01BE
TME Switch: DIP-SWITCH, Poles number: 1, OFF-ON, 0.025A/24VDC, Pos: 2 Min Qty: 1 0
  • 1 $0.3770
  • 10 $0.2990
  • 25 $0.2710
  • 350 $0.2260
  • 1,920 $0.2140
  • 5,760 $0.2090
$0.2090 / $0.3770 RFQ
Master Electronics DIP Switch - 1 Position - Through Hole - 2.54 mm Pitch - Raised Slide Actuator - Flat Bottom - Long Pin RoHS: Compliant 2014 In Stock
  • 100 $0.2692
  • 1,920 $0.2029
  • 3,840 $0.1999
  • 5,760 $0.1969
  • 7,680 $0.1918
  • 11,520 $0.1836
  • 26,880 $0.1711
  • 51,840 $0.1685
$0.1685 / $0.2692 Buy Now

Part Details for DS01-254-L-01BE

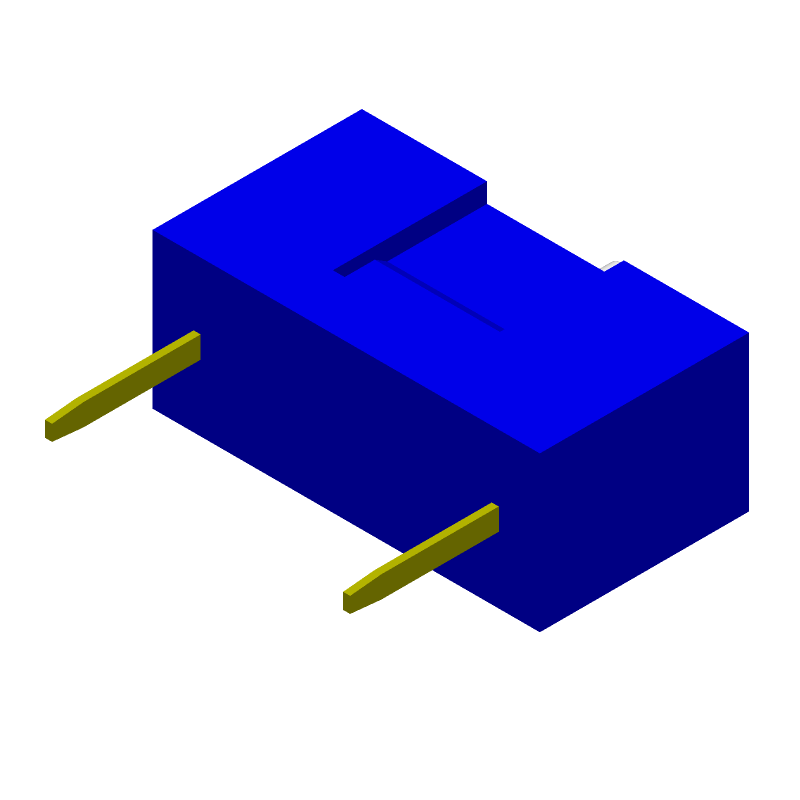

DS01-254-L-01BE CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DS01-254-L-01BE Part Data Attributes

Parametric Data
DS01-254-L-01BE Same Sky
Buy Now Datasheet
Compare Parts:
DS01-254-L-01BE Same Sky 1 Pole, Raised Actuator, Flat Bottom, Long Pin, DIP Switch
Rohs Code Yes
Part Life Cycle Code Transferred
Ihs Manufacturer CUI DEVICES
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer Same Sky
Actuator Color WHITE
Actuator Length 0.047 inch
Actuator Material POLYBUTYLENE TEREPHTHALATE
Actuator Type RAISED
Body Breadth 9.9 mm
Body Color BLACK
Body Height 5.5 mm
Body Length or Diameter 3.96 mm
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD
Contact Current(DC)-Max 0.025 A
Contact (DC) Max Rating R Load 0.025A@24VDC
Contact Resistance 0.1 mΩ
Contact Voltage(DC)-Max 24 V
Dielectric Withstand Volts 300VAC V
Electrical Life 2000 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating GOLD
Housing Material POLYBUTYLENE TEREPHTHALATE
Insulation Resistance 100000000 Ω
Insulator Material POLYBUTYLENE TEREPHTHALATE
Mounting Feature THROUGH HOLE-STRAIGHT
Number of Switch Sections 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PCB Hole Count 2
Solderability WAVE/HAND
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type SLIDE DIP SWITCH
Terminal Length 0.15 inch
Terminal Material COPPER ALLOY
Termination Type SOLDER

DS01-254-L-01BE Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the DS01-254-L-01BE is -40°C to 85°C.

  • Yes, the DS01-254-L-01BE is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The typical power consumption of the DS01-254-L-01BE is 1.5W, but this can vary depending on the specific application and operating conditions.

  • Yes, the DS01-254-L-01BE is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6.

  • Yes, the DS01-254-L-01BE is compatible with conformal coating, but it's recommended to follow the manufacturer's guidelines for coating materials and processes.
