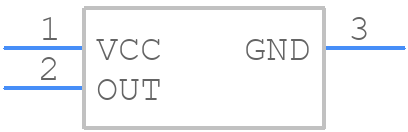

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV5015A2QDBZT by Texas Instruments
Results Overview of DRV5015A2QDBZT by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DRV5015A2QDBZT Information
DRV5015A2QDBZT by Texas Instruments is a Magnetic Field Sensor.
Magnetic Field Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DRV5015A2QDBZT | Texas Instruments | 2 mT, 5.5 V hall effect latch 3-SOT-23 -40 to 125 |
Price & Stock for DRV5015A2QDBZT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-50200-1-ND
|
DigiKey | MAGNETIC SWITCH LATCH SOT23-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
21149 In Stock |
|
$0.4563 / $0.8400 | Buy Now |
|
DISTI #
V72:2272_21836902
|
Arrow Electronics | Hall Effect Sensor 30mA Latch 3.3V/5V 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1817 Container: Cut Strips | Americas - 3 |
|
$0.2057 | Buy Now |
|
|
Bristol Electronics | 16 |
|
RFQ | ||
|
|
Win Source Electronics | MAGNETIC SWITCH LATCH SOT23-3 / Digital Switch Latch Digital Hall Effect SOT-23-3 | 91220 |
|
$0.1525 / $0.2287 | Buy Now |
Part Details for DRV5015A2QDBZT
DRV5015A2QDBZT CAD Models
DRV5015A2QDBZT Part Data Attributes
|
|
DRV5015A2QDBZT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV5015A2QDBZT
Texas Instruments
High sensitivity (±2-mT), low voltage (up to 5.5-V) Hall effect latch 3-SOT-23 -40 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOT-23, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | IT HAVE SENSITIVITY OF PLUS OR MINUS 1.8 MT | |
| Body Breadth | 1.3 mm | |
| Body Height | 1.12 mm | |
| Body Length or Diameter | 2.92 mm | |
| Housing | PLASTIC | |
| Hysteresis | 3.6 mT | |
| Input Mode | BIPOLAR(LATCHED) | |
| JESD-609 Code | e3 | |
| Magnetic Field Range-Max | 3.7 mT | |
| Magnetic Field Range-Min | -3.7 mT | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 3 | |
| Operating Current-Max | 2.8 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | OPEN-DRAIN | |
| Output Current-Max | 20 mA | |
| Output Range | 0-20mA | |
| Output Type | DIGITAL CURRENT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | MAGNETIC FIELD SENSOR,HALL EFFECT | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.5 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Termination Type | SOLDER |
