DM1-01P-30-3 by SPC Multicomp is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for DM1-01P-30-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24R6054
|
Newark | Microswitch, Spdt, Short Lever, Solder, 1 A, 125 V Rohs Compliant: Yes |Multicomp Pro DM1-01P-30-3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 931356 |
|
$0.4420 / $0.6130 | Buy Now |
Part Details for DM1-01P-30-3
DM1-01P-30-3 CAD Models
DM1-01P-30-3 Part Data Attributes
|
|
DM1-01P-30-3
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
DM1-01P-30-3
SPC Multicomp

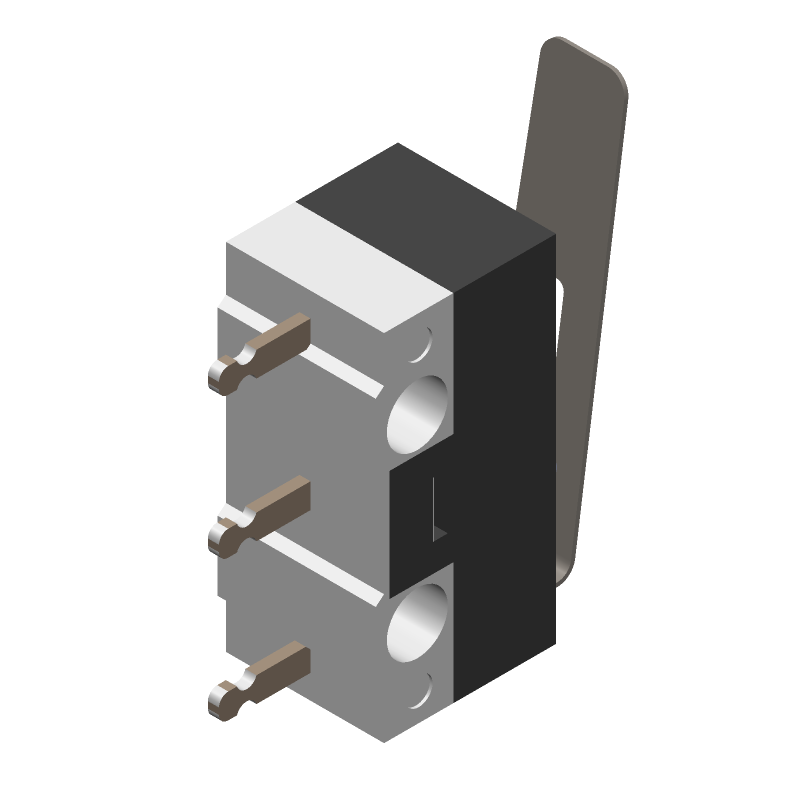

Snap Acting/Limit Switch, SPDT, Momentary, 0.03A, 5VDC, 1.6mm, 3 PCB Hole Cnt, Solder Terminal, Short Lever Actuator, Through Hole-straight,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Multicomp Pro | |
| Actuator Length | 0.559 inch | |
| Actuator Travel | 1.6 mm | |
| Actuator Type | SHORT LEVER | |
| Body Breadth | 5.7 mm | |
| Body Height | 6.5 mm | |
| Body Length or Diameter | 12.8 mm | |
| Contact (AC) Max Rating R Load | 1A@125VAC | |
| Contact Current(AC)-Max | 1 A | |
| Contact Current(DC)-Max | 0.03 A | |
| Contact (DC) Max Rating R Load | 0.03A@5VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(AC)-Max | 125 V | |
| Contact Voltage(DC)-Max | 5 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Force-Max | 0.294 N | |
| Operating Position | 0.346 inch | |
| PCB Hole Count | 3 | |
| Pre-Travel-Max | 1.6 mm | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPDT | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Length | 0.13 inch | |
| Termination Type | SOLDER |
