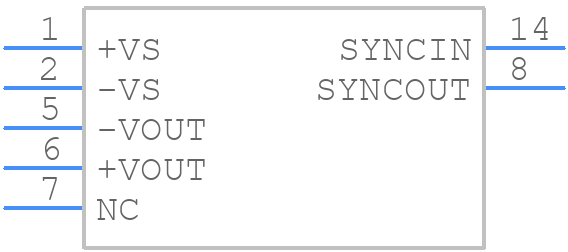

Part Symbol
-

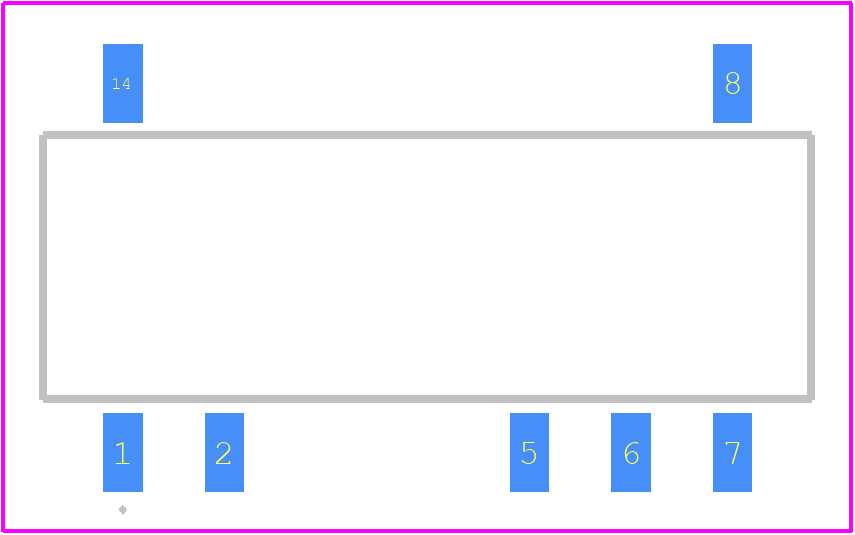

Footprint
-

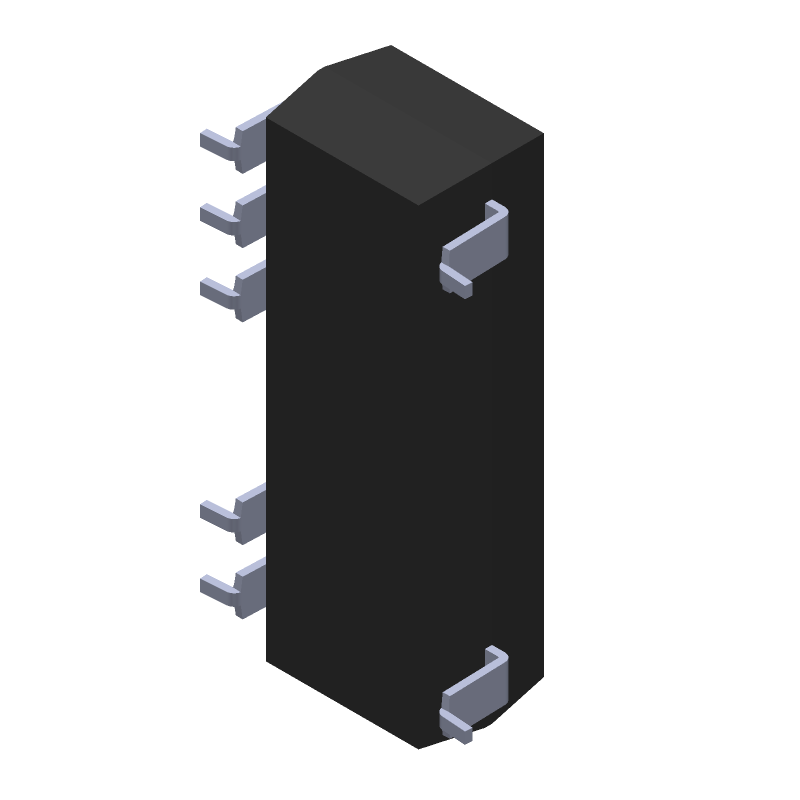

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DCP010505BP-UE4 by Texas Instruments
Results Overview of DCP010505BP-UE4 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DCP010505BP-UE4 Information
DCP010505BP-UE4 by Texas Instruments is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for DCP010505BP-UE4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-DCP010505BP-UE4TR-ND
|
DigiKey | MINIATURE, 1W ISOLATED UNREGULAT Min Qty: 75 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$13.1387 | Buy Now |
|
DISTI #
595-DCP010505BP-UE4
|
Mouser Electronics | Isolated DC/DC Converters - SMD Mini 1W Iso Unreg DC /DC Converter ALT 595-DCP010505BP-U RoHS: Compliant | 67 |
|
$12.2900 / $15.3000 | Buy Now |
|
|
Cytech Systems Limited | MINIATURE, 1W ISOLATED UNREGULAT | 2500 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 67 |
|
RFQ | |
|
|
Win Source Electronics | DCP010505B MINIATURE, 1W ISOLATE / Regulator Output DC-DC Controller IC | 1410 |
|
$3.3333 / $4.3055 | Buy Now |
Part Details for DCP010505BP-UE4
DCP010505BP-UE4 CAD Models
DCP010505BP-UE4 Part Data Attributes
|
|
DCP010505BP-UE4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DCP010505BP-UE4
Texas Instruments
Miniature, 1W Isolated Unregulated DC/DC Converters 7-SOP -40 to 100
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MODULE | |
| Package Description | SOP-14/7 | |
| Pin Count | 14/7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 80% | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G7 | |
| JESD-609 Code | e4 | |
| Length | 19.18 mm | |
| Line Regulation-Max | 15% | |
| Load Regulation-Max | 31% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.2 A | |
| Output Voltage-Max | 5.25 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | GWDIP7/14,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.007 Vrms | |
| Seated Height-Max | 5.33 mm | |
| Surface Mount | YES | |
| Switcher Configuration | PUSH-PULL | |
| Technology | BCDMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 6.605 mm |
Alternate Parts for DCP010505BP-UE4
This table gives cross-reference parts and alternative options found for DCP010505BP-UE4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DCP010505BP-UE4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DCP010505BP-U | Burr-Brown Corp | Check for Price | DC-DC Unregulated Power Supply Module, 1 Output, 1W, BCDMOS, ROHS COMPLIANT, PLASTIC, SOP-14/7 | DCP010505BP-UE4 vs DCP010505BP-U |
DCP010505BP-UE4 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths and widths.
-
The DCP010505BP-UE4 is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources.
-
The absolute maximum input voltage rating is 6.5V. Exceeding this voltage can cause permanent damage to the device. Ensure that the input voltage is within the recommended operating range of 4.5V to 5.5V.
-
The DCP010505BP-UE4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats to prevent damage.
-
The datasheet recommends a 10uF ceramic capacitor with an X7R or X5R dielectric. This value and type provide a good balance between filtering and stability. However, the optimal value may vary depending on the specific application and input voltage ripple.
