Connectors / D Type Connectors / DAM3W3PN
Datasheets
DAM3W3PN by:

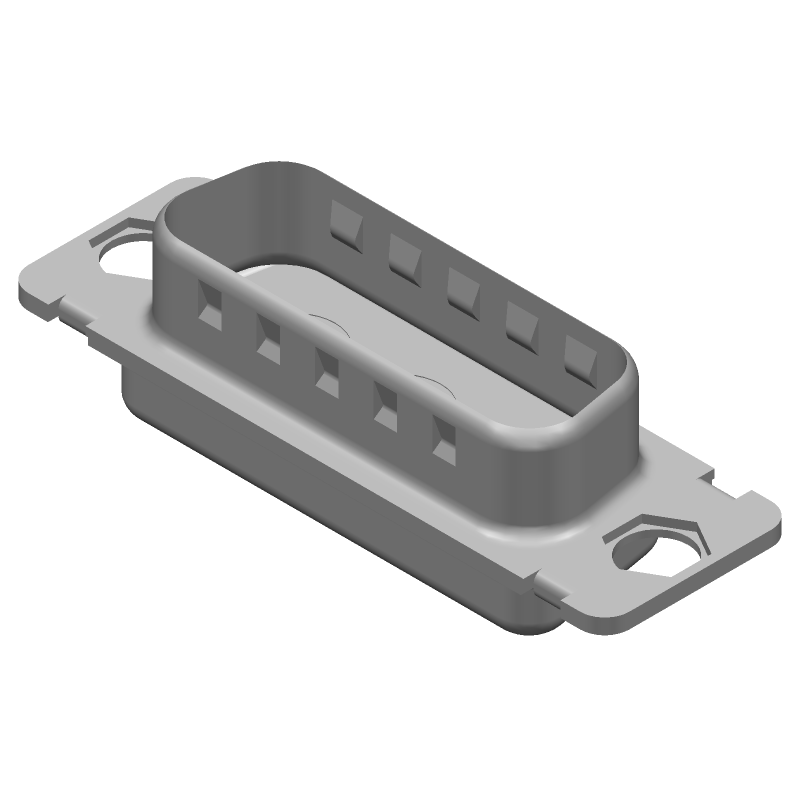

High Performance D-Sub Power Board Mount Connectors, Input Output Connectors, Cable Connector, 3W3 male housing, Solder bucket

Part Details for DAM3W3PN by Amphenol Communications Solutions

Results Overview of DAM3W3PN by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

DAM3W3PN Information

DAM3W3PN by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for DAM3W3PN

Part # Distributor Description Stock Price Buy
DISTI # 21K8622
Newark D Sub Housing, Plug, Da-3W3, 3Pos, No. Of Positions:3Positions, Connector Type:D Sub, Connector Shell Size:Da-3W3, Product Range:Dmw Series, Gender:Plug, Connector Body Material:Steel Body Rohs Compliant: No |Amphenol Communications Solutions DAM3W3PN RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 207
  • 1 $1.2700
  • 10 $1.2700
  • 25 $1.2700
  • 50 $1.2700
  • 100 $1.2700
  • 250 $1.2700
  • 500 $1.2700
  • 1,000 $1.2700
$1.2700 Buy Now
Onlinecomponents.com   RoHS: Compliant 100 Partner Stock
  • 25 $2.9000
  • 100 $2.3600
  • 250 $2.2400
  • 500 $2.1800
  • 1,000 $2.0600
  • 2,500 $2.0100
  • 5,000 $1.9600
  • 7,500 $1.9300
$1.9300 / $2.9000 Buy Now
DISTI # DAM3W3PN
IBS Electronics CONNECTOR ACCESSORIES 3COAXIAL POS MALE HOUSING Min Qty: 59 Package Multiple: 1 100
  • 59 $1.9375
$1.9375 Buy Now
Master Electronics   RoHS: Compliant 100 Partner Stock
  • 25 $2.9000
  • 100 $2.3600
  • 250 $2.2400
  • 500 $2.1800
  • 1,000 $2.0600
  • 2,500 $2.0100
  • 5,000 $1.9600
  • 7,500 $1.9300
$1.9300 / $2.9000 Buy Now

Part Details for DAM3W3PN

DAM3W3PN Part Data Attributes

Parametric Data
DAM3W3PN Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
DAM3W3PN Amphenol Communications Solutions High Performance D-Sub Power Board Mount Connectors, Input Output Connectors, Cable Connector, 3W3 male housing, Solder bucket
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Pin Count 15
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Samacsys Manufacturer Amphenol Communications Solutions
Body Breadth 0.494 inch
Body Length 1.526 inch
Body/Shell Style PLUG
Connector Type D SUBMINIATURE CONNECTOR
Contact Arrangement S0P3
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1000VDC V
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Material POLYETHYLENE
MIL Conformance NO
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Reference Standard UL
Shell Finish CADMIUM
Shell Material STEEL
Shell Size 2/A
Total Number of Contacts 3
UL Flammability Code 94V-0

Alternate Parts for DAM3W3PN

This table gives cross-reference parts and alternative options found for DAM3W3PN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAM3W3PN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DAMO3W3PN Amphenol Communications Solutions Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug, DAM3W3PN vs DAMO3W3PN
DAMV3V3PN Amphenol Communications Solutions Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug, DAM3W3PN vs DAMV3V3PN
DAMO3V3PN Amphenol Communications Solutions Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug, DAM3W3PN vs DAMO3V3PN
DAMF3V3PN Amphenol Communications Solutions Check for Price D Subminiature Connector, 3 Contact(s), Male, Locking, Plug, DAM3W3PN vs DAMF3V3PN
DAMI3W3PN Amphenol FCi Check for Price D Subminiature Connector, 3 Contact(s), Male, M3, Plug DAM3W3PN vs DAMI3W3PN
DAMV3W3PN Amphenol Communications Solutions Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug, DAM3W3PN vs DAMV3W3PN
DAMO3W3PN Amphenol FCi Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug DAM3W3PN vs DAMO3W3PN
DAMV3V3PN Amphenol FCi Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug DAM3W3PN vs DAMV3V3PN
DAMV3W3PN Amphenol FCi Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug DAM3W3PN vs DAMV3W3PN
DAMO3V3PN Amphenol FCi Check for Price D Subminiature Connector, 3 Contact(s), Male, #4-40, Plug DAM3W3PN vs DAMO3V3PN
