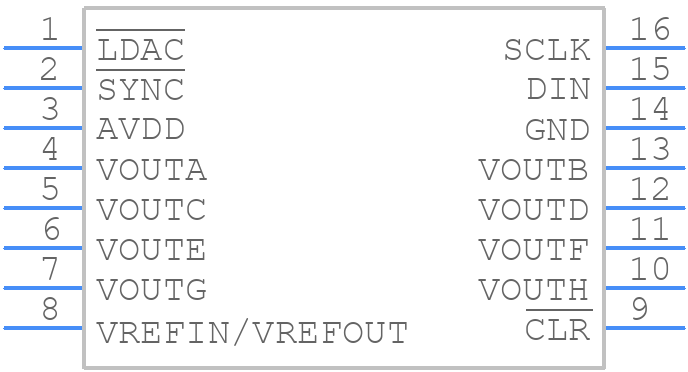

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC7568ICPW by Texas Instruments
Results Overview of DAC7568ICPW by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
DAC7568ICPW Information
DAC7568ICPW by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC7568ICPW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3005656
|
Farnell | IC, 12BIT DAC, OCTAL CH, 16TSSOP RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Each | 648 |
|
$15.2985 / $23.3197 | Buy Now |
|
DISTI #
595-DAC7568ICPW
|
Mouser Electronics | Digital to Analog Converters - DAC 12B Oct Ch Ultra-Lo Glitch Vltg Out DAC A 595-DAC7568ICPWR RoHS: Compliant | 202 |
|
$13.6900 / $21.0500 | Buy Now |
|
DISTI #
DAC7568ICPW
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 88 |
|
$12.4000 / $20.9000 | Buy Now |
|
|
Win Source Electronics | IC DAC 12BIT V-OUT 16TSSOP / 12 Bit Digital to Analog Converter 8 16-TSSOP | 7300 |
|
$16.8113 / $25.2169 | Buy Now |
Part Details for DAC7568ICPW
DAC7568ICPW CAD Models
DAC7568ICPW Part Data Attributes
|
|
DAC7568ICPW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC7568ICPW
Texas Instruments
12-Bit, Octal Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference 16-TSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | GRREN, PLASTIC, TSSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 2 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.1 MHz | |
| Seated Height-Max | 1.2 mm | |
| Settling Time-Max | 10 µs | |
| Settling Time-Nom (tstl) | 5 µs | |
| Supply Current-Max | 1.6 mA | |
| Supply Voltage-Nom | 3.6 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for DAC7568ICPW
This table gives cross-reference parts and alternative options found for DAC7568ICPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAC7568ICPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DAC7568ICPWR | Texas Instruments | $8.3151 | 12-Bit, Octal Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference 16-TSSOP -40 to 125 | DAC7568ICPW vs DAC7568ICPWR |
DAC7568ICPW Frequently Asked Questions (FAQ)
-
The maximum output current of the DAC7568 is 5mA per channel.
-
To ensure monotonicity, use a 0.1uF capacitor between the output pin and GND, and a 1kΩ resistor in series with the output pin.
-
The recommended power-on sequence is to power up VCC first, followed by AVCC, and then the digital interface (SCL and SDA).
-
To enter power-down mode, set the PD pin low. In power-down mode, the DAC7568's power consumption is reduced, but the output voltage is not guaranteed.
-
The maximum clock frequency for the I2C interface of the DAC7568 is 400 kHz.
