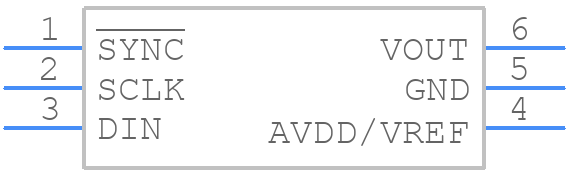

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DAC6311IDCKR by Texas Instruments
Results Overview of DAC6311IDCKR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
DAC6311IDCKR Information
DAC6311IDCKR by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC6311IDCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-46415-1-ND
|
DigiKey | IC DAC 10BIT V-OUT SC70-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4952 In Stock |
|
$0.9249 / $2.0100 | Buy Now |
|
DISTI #
595-DAC6311IDCKR
|
Mouser Electronics | Digital to Analog Converters - DAC 10B Sgl Ch 80uA DAC A 595-DAC6311IDCKT RoHS: Compliant | 1872 |
|
$0.8300 / $2.0100 | Buy Now |
|
|
Vyrian | Converters | 12496 |
|
RFQ | |
|
|
Win Source Electronics | IC DAC 10-BIT 1-CH LP SC70-6 | 14560 |
|
$0.9385 / $1.4076 | Buy Now |
Part Details for DAC6311IDCKR
DAC6311IDCKR CAD Models
DAC6311IDCKR Part Data Attributes
|
|
DAC6311IDCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC6311IDCKR
Texas Instruments
10bit, Single Channel, 80uA, 2.0V-5.5V DAC in SC70 Package 6-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SC-70, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.083 MHz | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Max | 10 µs | |
| Settling Time-Nom (tstl) | 6 µs | |
| Supply Current-Max | 0.16 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for DAC6311IDCKR
This table gives cross-reference parts and alternative options found for DAC6311IDCKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DAC6311IDCKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DAC6311IDCKT | Texas Instruments | $0.8965 | 10bit, Single Channel, 80uA, 2.0V-5.5V DAC in SC70 Package 6-SC70 -40 to 125 | DAC6311IDCKR vs DAC6311IDCKT |
| DAC6311IDCKTG4 | Texas Instruments | Check for Price | 10bit, Single Channel, 80uA, 2.0V-5.5V DAC in SC70 Package 6-SC70 -40 to 125 | DAC6311IDCKR vs DAC6311IDCKTG4 |
DAC6311IDCKR Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
-
To ensure accurate voltage output, it's essential to use a stable and low-noise voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, ensure that the output load is within the specified range to prevent output voltage droop.
-
The maximum output current of the DAC6311 is 5 mA. Exceeding this current may cause the output voltage to droop or the device to overheat.
-
To enter power-down mode, set the PD pin high. In this mode, the DAC's output is high-impedance, and the device consumes minimal power. When exiting power-down mode, ensure that the PD pin is set low before updating the DAC's output.
-
To minimize noise and ensure accurate operation, it's recommended to keep the analog and digital signal paths separate, use a solid ground plane, and keep the VREF and output traces short and shielded.
