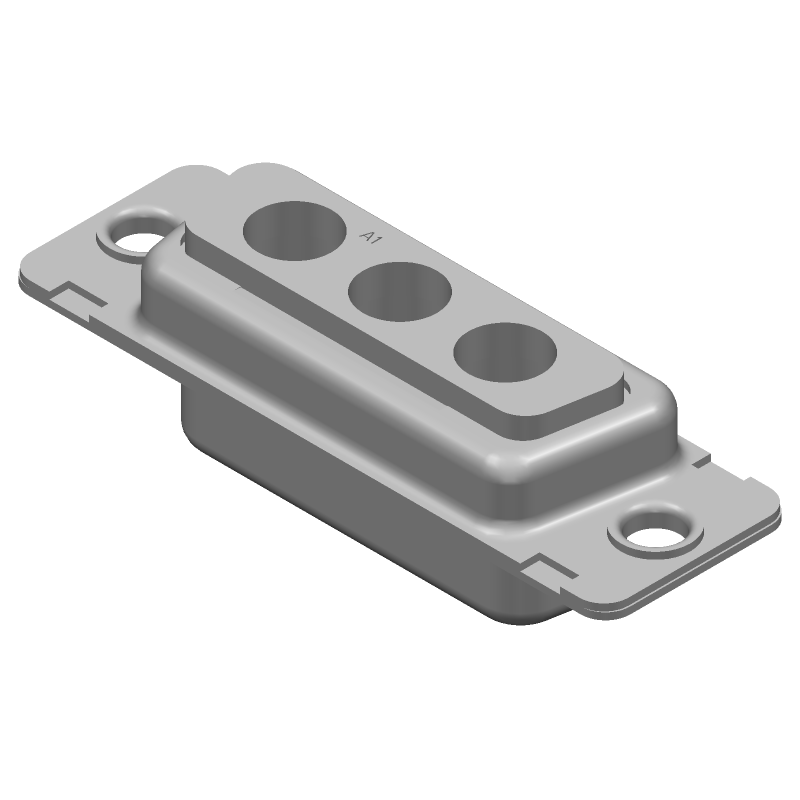

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DA3W3SA00LF by Amphenol Communications Solutions
Results Overview of DA3W3SA00LF by Amphenol Communications Solutions
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Space Technology
Audio and Video Systems
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Medical Imaging
Renewable Energy
Automotive
Robotics and Drones
DA3W3SA00LF Information
DA3W3SA00LF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for DA3W3SA00LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62K3948
|
Newark | Combo D Sub Conn, Rcpt, 3Pos, Solder, Product Range:Fci Dw Series, Insert Arrangement:Da-3W3, Gender:Receptacle, No. Of Contacts:3Contacts, Contact Type:3 Power, Contact Termination Type:Solder, Connector Body Material:Steel Body Rohs Compliant: Yes |Amphenol Communications Solutions DA3W3SA00LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 71 |
|
$1.0900 | Buy Now |
|
|
Onlinecomponents.com | Conn D-Subminiature SKT 3Cavity POS 6.86mm Crimp ST Panel Mount 1 Port RoHS: Compliant |
117 In Stock 400 On Order |
|
$1.1980 / $1.7270 | Buy Now |
|
DISTI #
DA3W3SA00LF
|
TME | D-Sub, PIN: 3, socket, female, for panel mounting, angled 90°, 5A Min Qty: 1 | 255 |
|
$1.4100 / $1.9800 | Buy Now |
|
DISTI #
DA3W3SA00LF
|
IBS Electronics | D SUB CONNECTOR HOUSING MIXED POWER 3 WAYS D SUB DA FCI DW SERIES SOCKET STEEL BODY Min Qty: 40 Package Multiple: 1 | 88 |
|
$1.7375 | Buy Now |
|
DISTI #
DA3W3SA00LF
|
IBS Electronics | DA3W3SA00LF by AMPHENOL ICC / FCI is a D-sub connector with 3W3 configuration, featuring solder cup termination, gold-plated contacts, and a robust metal shell for reliable data and power transmission. Min Qty: 25 Package Multiple: 1 | 29 |
|
$1.5574 / $2.2451 | Buy Now |
|
|
Master Electronics | Conn D-Subminiature SKT 3Cavity POS 6.86mm Crimp ST Panel Mount 1 Port RoHS: Compliant |
117 In Stock 400 On Order |
|
$1.1980 / $1.7270 | Buy Now |
Part Details for DA3W3SA00LF
DA3W3SA00LF CAD Models
DA3W3SA00LF Part Data Attributes
|
|
DA3W3SA00LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
DA3W3SA00LF
Amphenol Communications Solutions
D-Sub Cable Connectors, Input Output Connectors, Power Cable Connector 3W3 Socket.
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | LEAD FREE | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.494 inch | |
| Body Depth | 0.242 inch | |
| Body Length | 1.526 inch | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Material | POLYETHYLENE | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Reference Standard | UL | |
| Shell Finish | COPPER TIN | |
| Shell Material | STEEL | |
| Shell Size | 2/A | |
| Total Number of Contacts | 3 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for DA3W3SA00LF
This table gives cross-reference parts and alternative options found for DA3W3SA00LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DA3W3SA00LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DA3W3SA00LF | Amphenol FCi | $1.1490 | D Subminiature Connector, 3 Contact(s), Female, LEAD FREE | DA3W3SA00LF vs DA3W3SA00LF |
| DA3W3SA00 | Amphenol FCi | Check for Price | D Subminiature Connector, 3 Contact(s), Female, Socket, LEAD FREE | DA3W3SA00LF vs DA3W3SA00 |
DA3W3SA00LF Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads.
-
Yes, the DA3W3SA00LF is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
-
Yes, the DA3W3SA00LF is designed to support high-speed signals up to 10 Gbps, making it suitable for use in high-speed data transmission applications.
-
The operating temperature range for the DA3W3SA00LF is -40°C to 125°C (-40°F to 257°F).
-
Yes, the DA3W3SA00LF is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
