Switches / Snap Acting/Limit Switches / D3D-111
Datasheets
D3D-111 by:

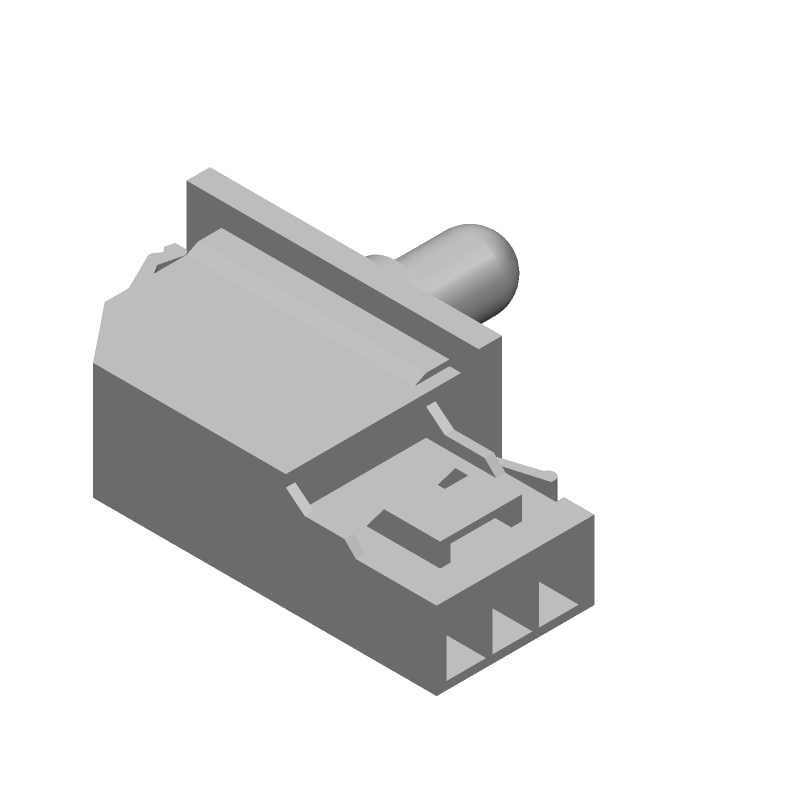

Snap Acting/Limit Switch, SPDT, Momentary, 9mm, Connector Terminal, Plunger Actuator, Panel Mount, ROHS COMPLIANT

Part Details for D3D-111 by OMRON Electronic Components LLC

Results Overview of D3D-111 by OMRON Electronic Components LLC

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Electronic Manufacturing

D3D-111 Information

D3D-111 by OMRON Electronic Components LLC is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Part Details for D3D-111

D3D-111 Part Data Attributes

Parametric Data
D3D-111 OMRON Electronic Components LLC
Buy Now Datasheet
Compare Parts:
D3D-111 OMRON Electronic Components LLC Snap Acting/Limit Switch, SPDT, Momentary, 9mm, Connector Terminal, Plunger Actuator, Panel Mount, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer OMRON CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.70.00
Factory Lead Time 14 Weeks
Samacsys Manufacturer Omron Electronics
Actuator Travel 9 mm
Actuator Type PLUNGER
Body Breadth 15 mm
Body Height 15 mm
Body Length or Diameter 36.4 mm
Contact (AC) Max Rating R Load 1A@125VAC
Contact Current(AC)-Max 1 A
Contact Voltage(AC)-Max 125 V
Electrical Life 100000 Cycle(s)
Mounting Feature PANEL MOUNT
Operating Force-Max 2 N
Operating Temperature-Max 60 °C
Operating Temperature-Min -30 °C
Sealing IP00
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPDT
Switch Type SNAP ACTING/LIMIT SWITCH
Termination Type CONNECTOR

D3D-111 Related Parts

D3D-111 Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the D3D-111 is -25°C to 85°C (-13°F to 185°F).

  • The D3D-111 has a built-in ambient light filter to reduce interference from ambient light sources, ensuring stable detection even in bright environments.

  • The maximum detection distance of the D3D-111 is approximately 10 mm (0.39 in) for reflective objects and 5 mm (0.20 in) for transparent objects.

  • Yes, the D3D-111 has a moisture-resistant design and can operate in humid or wet environments, but it's essential to follow proper installation and sealing guidelines to ensure reliability.

  • The sensitivity of the D3D-111 can be adjusted using an external potentiometer or by using the built-in sensitivity adjustment pin (PIN 3). Consult the datasheet for specific instructions.
