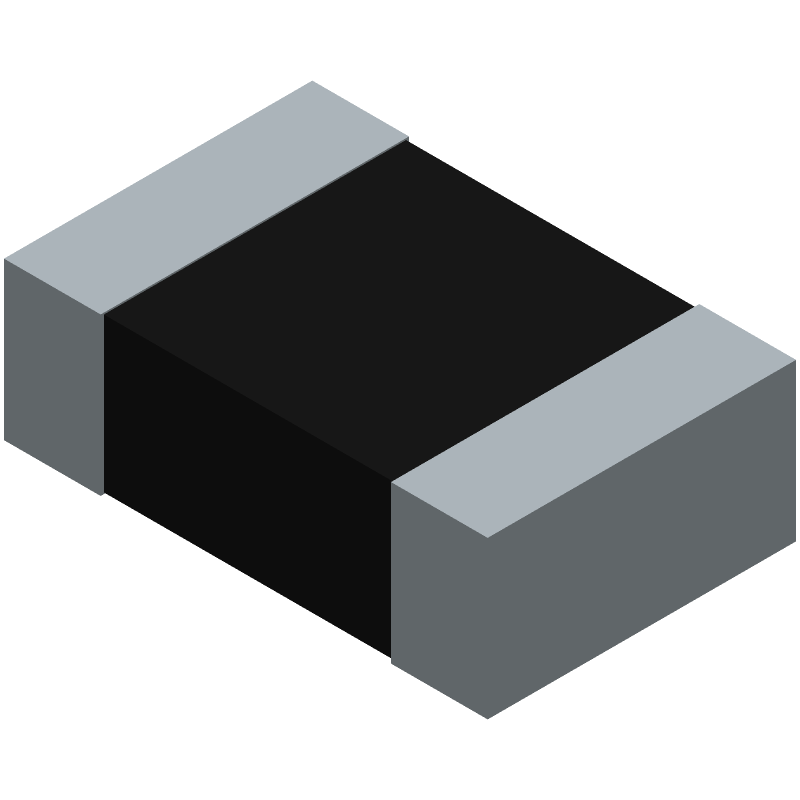

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRGP0805F10K by TE Connectivity
Results Overview of CRGP0805F10K by TE Connectivity
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
CRGP0805F10K Information
CRGP0805F10K by TE Connectivity is a Thick Film Resistor.
Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRGP0805F10K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73AC3762
|
Newark | Res, 10K, 1%, 0.33W, 0805, Thick Film, Resistance:10Kohm, Resistance Tolerance:± 1%, Power Rating:333.3Mw, Resistor Case/Package:0805 [2012 Metric], Resistor Technology:Thick Film, Resistor Type:Pulse Withstanding, Qualification:- Rohs Compliant: Yes |Te Connectivity CRGP0805F10K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4923 |
|
$0.0080 | Buy Now |
|
DISTI #
73AC3763
|
Newark | Res, 10K, 1%, 0.33W, 0805, Thick Film, Resistance:10Kohm, Resistance Tolerance:± 1%, Power Rating:333.3Mw, Resistor Case/Package:0805 [2012 Metric], Resistor Technology:Thick Film, Resistor Type:Pulse Withstanding, Qualification:- Rohs Compliant: Yes |Te Connectivity CRGP0805F10K RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0280 / $0.0310 | Buy Now |
|
DISTI #
A130489CT-ND
|
DigiKey | RES 10K OHM 1% 1/3W 0805 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
27091 In Stock |
|
$0.0249 / $0.2000 | Buy Now |
|
DISTI #
73AC3762
|
Avnet Americas | SMD Chip Resistor, 10 kOhm, ? 1%, 330 mW, 0805 [2012 Metric], Thick Film, Pulse Withstanding - Product that comes on tape, but is not reeled (Alt: 73AC3762) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 6 Days Container: Ammo Pack | 4923 Partner Stock |
|
$0.0350 / $0.1980 | Buy Now |
|
DISTI #
3-2176327-7
|
Avnet Americas | SMD Chip Resistor, 10 kOhm, ? 1%, 330 mW, 0805 [2012 Metric], Thick Film, Pulse Withstanding - Tape and Reel (Alt: 3-2176327-7) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 14 Weeks, 1 Days Container: Reel | 0 |
|
$0.0202 / $0.0208 | Buy Now |
|
DISTI #
279-CRGP0805F10K
|
Mouser Electronics | Thick Film Resistors - SMD CRGP 0805 10K 1% SMD Resistor RoHS: Compliant | 9895 |
|
$0.0240 / $0.2100 | Buy Now |
|
|
Onlinecomponents.com | Thick Film Resistor - SMD 0805 - 10 Kohm (+/-) 1% - 1/3 W - 150V - TCR (+/-) 100ppm/°C - -55°C to +155°C - Tape&Reel RoHS: Compliant |
15000 In Stock |
|
$0.0201 / $0.0271 | Buy Now |
|
DISTI #
64937693
|
Verical | Res Thick Film 0805 10K Ohm 1% 0.33W(1/3W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Date Code: 2236 | Americas - 15000 |
|
$0.0303 / $0.0352 | Buy Now |
|
DISTI #
CRGP0805F10K
|
TME | Resistor: thick film, SMD, 0805, 10kΩ, 300mW, ±1%, CRGP Min Qty: 20000 | 0 |
|
$0.0264 | RFQ |
|
DISTI #
3-2176327-7
|
Avnet Abacus | SMD Chip Resistor 10 kOhm 1 330 mW 0805 2012 Metric Thick Film Pulse Withstanding (Alt: 3-2176327-7) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 16 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CRGP0805F10K
CRGP0805F10K CAD Models
CRGP0805F10K Part Data Attributes
|
|
CRGP0805F10K
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
CRGP0805F10K
TE Connectivity
Fixed Resistor, Thick Film, 0.33W, 10000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 14 Weeks, 6 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR | |
| Physical Dimension | 2mm x 1.25mm x .55mm | |
| Rated Power Dissipation (P) | 0.33 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 10000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
